Surfaces are ggcube’s richest feature area. This article gives an overview of the geoms and stats that work together to render continuous surfaces from various data sources. “Surface” here means a data object with a single z value for each (x, y) position, like a heightmap or terrain model. This vignette doesn’t cover hulls (geom_hull_3d()) or columnar surfaces (geom_col_3d()).

Surfaces can be rendered from several data sources and in several visual styles, using a system of interchangeable geoms and stats. ggcube currently includes three surface geoms:

Each of these geoms can render data produced by one of four surface stats:

Data sources

Surface data comes in two forms:

  • Regular grids have a z value at every combination of x and y positions — like a raster or DEM. Grid data can be supplied directly by the user, or generated internally by a stat.
  • Irregular points are scattered (x, y, z) observations with no grid structure. These are triangulated via Delaunay tessellation to produce a surface mesh.

stat_surface_3d() auto-detects which type of data it receives and handles both. All three surface geoms work with regular grid data, but only geom_surface_3d() supports irregular points (since ridgelines and contours require an underlying grid structure).

Surface geoms

Three geoms render surface data in different visual styles.

Tessellated mesh

geom_surface_3d() is the primary surface geom. You can use it to create a solid surface as shown here, or set fill = NA to produce a wireframe. It tessellates data into polygon tiles and supports both regular grids and irregular point data:

p <- ggplot(mountain, aes(x, y, z, fill = z, color = z)) +
  coord_3d(ratio = c(1, 1.5, .75)) +
  scale_fill_viridis_c() +
  scale_color_viridis_c() +
  theme_light()

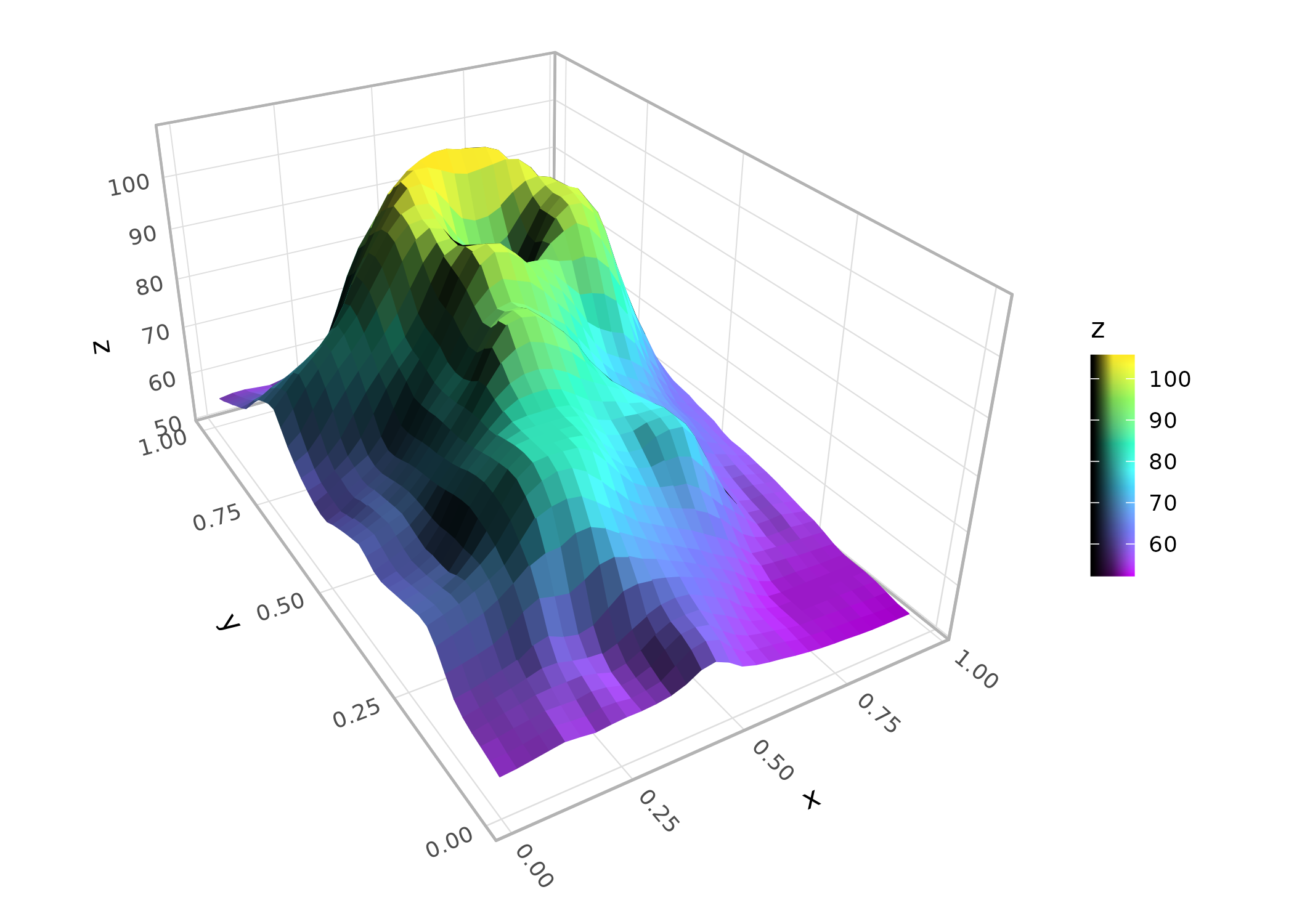

p + geom_surface_3d(light = light(direction = c(1, 0, .5),
                                mode = "hsv", contrast = 1.5),
                  linewidth = .2) +
  guides(fill = guide_colorbar_3d())

Contours

geom_contour_3d() creates filled contour bands stacked at their respective elevations, like a topographic layer-cake. The bins or breaks parameters control the contour levels:

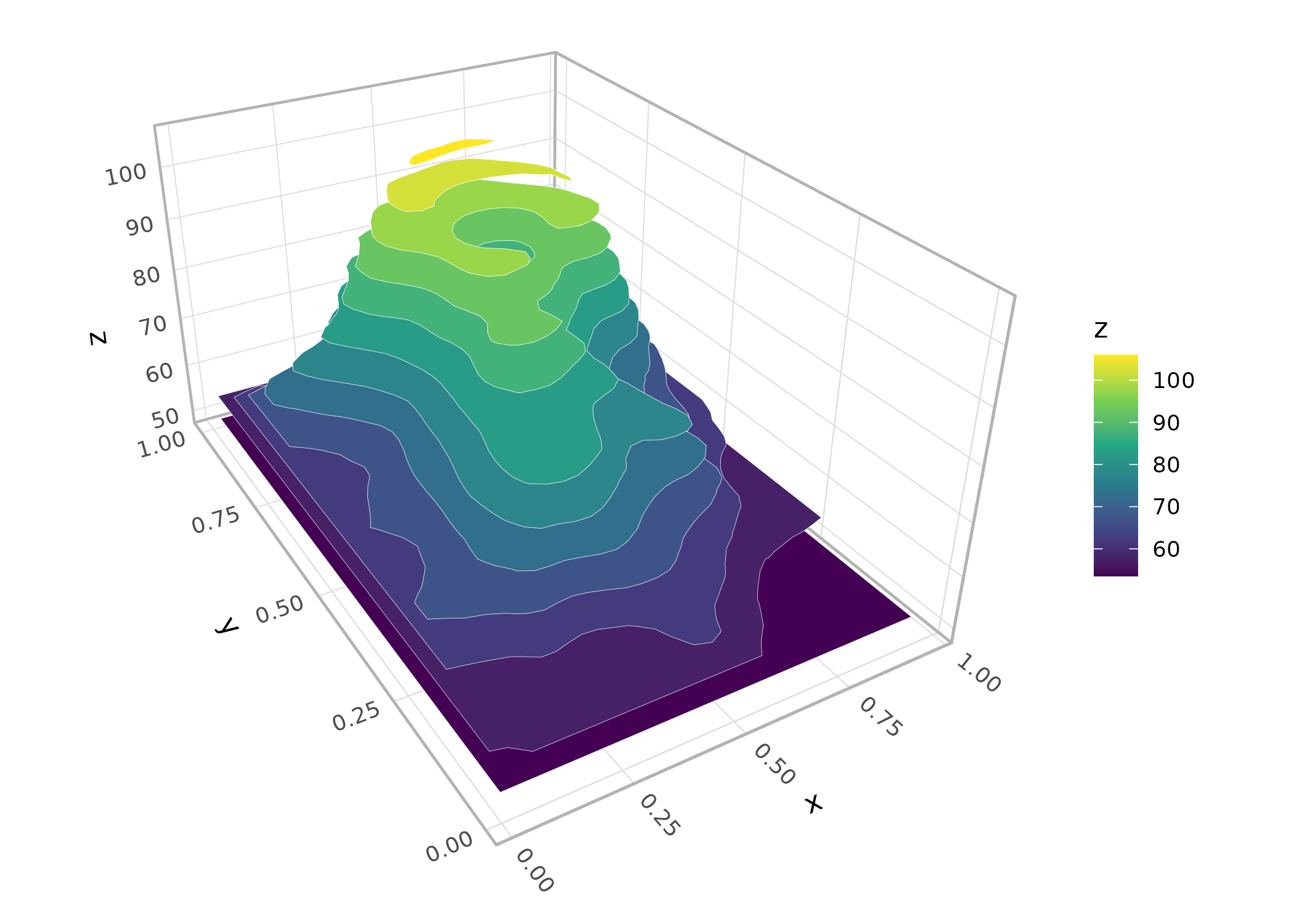

p + geom_contour_3d(bins = 12, color = "white", light = "none")

Ridgelines

geom_ridgeline_3d() slices a surface into cross-sections, producing a ridgeline view. The direction parameter controls the slicing axis:

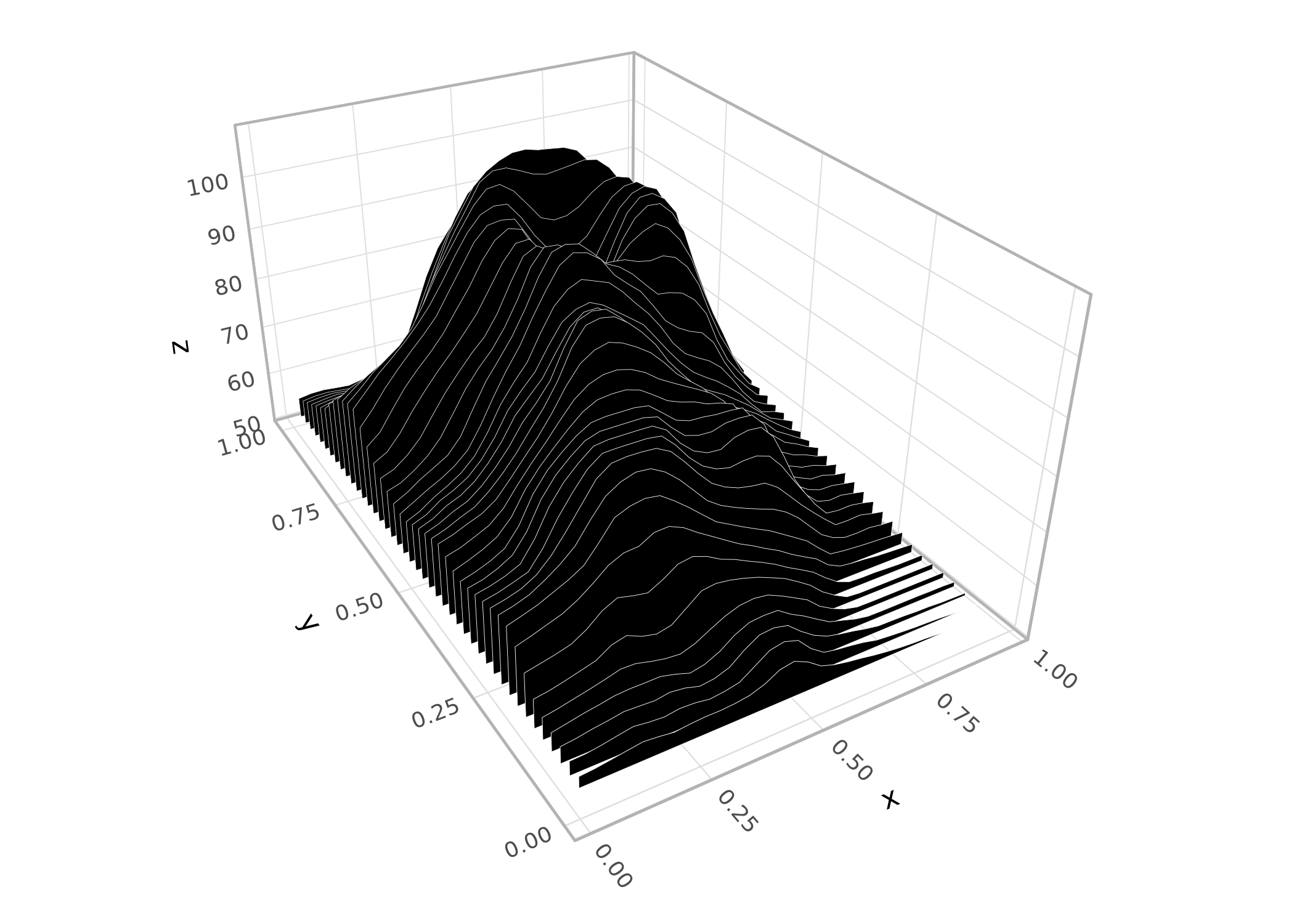

p + stat_surface_3d(geom = "ridgeline_3d", direction = "y",
                    fill = "black", color = "white",
                    light = "none", linewidth = .1)

Mixing stats and geoms

Each of these geoms can be paired with any of the surface stats described below. For example, stat_function_3d(geom = "contour_3d") renders a mathematical function as contour bands, and stat_function_3d(geom = "ridgeline_3d") renders it as ridgelines.

Surface stats

Four stats produce surface data. Each generates a regular grid of (x, y, z) points that can be rendered by any of the three surface geoms.

User-supplied data

stat_surface_3d() is the default stat for geom_surface_3d(). It works with regular grids, and with irregular point data for which it performs Delaunay triangulation as shown here:

set.seed(42)
pts <- data.frame(x = runif(200, -2, 2), y = runif(200, -2, 2))
pts$z <- with(pts, sin(x) * cos(y))

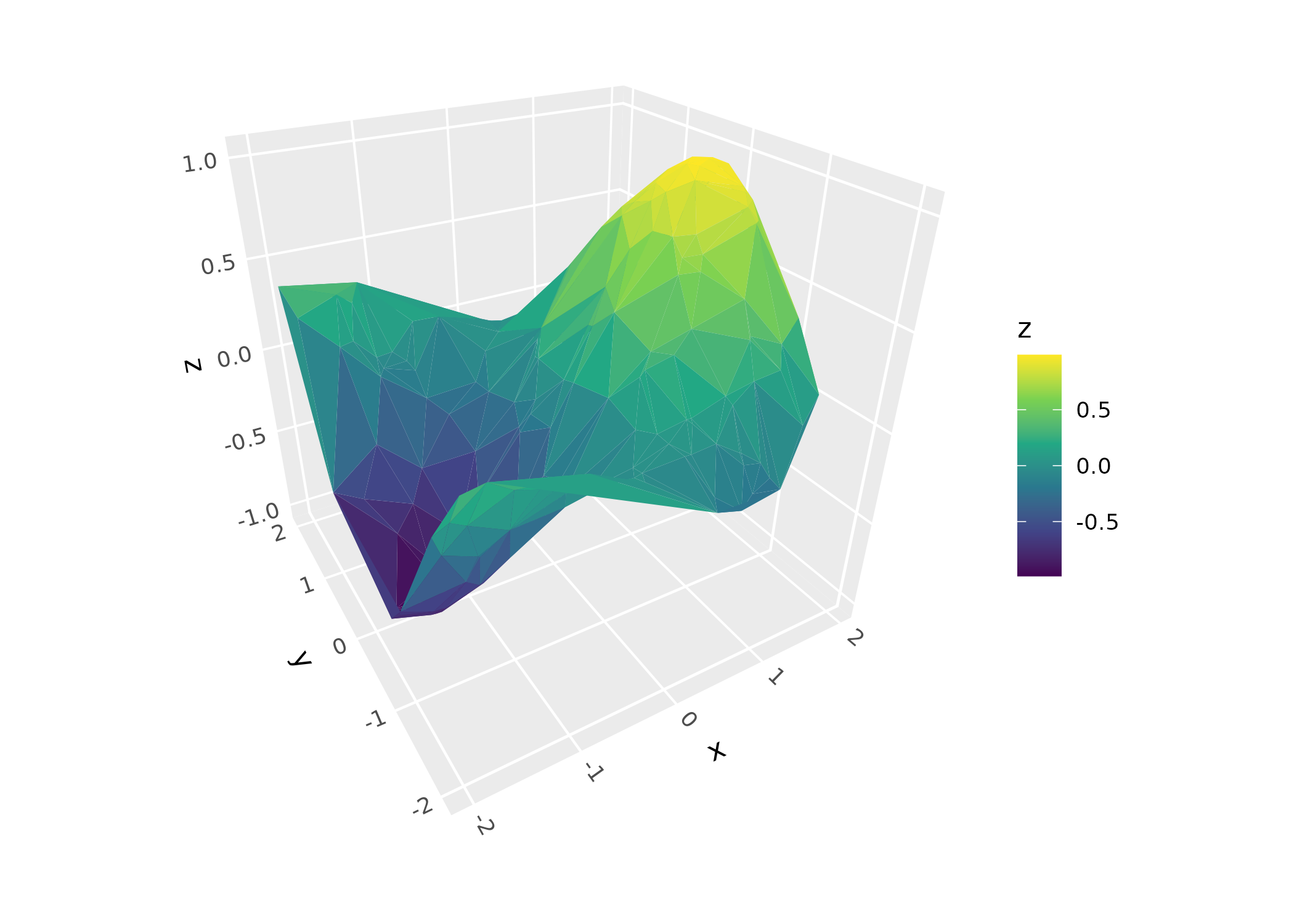

ggplot(pts, aes(x, y, z = z, fill = z)) +
  stat_surface_3d(sort_method = "pairwise") +
  scale_fill_viridis_c() +
  coord_3d(light = "none")

Mathematical functions

stat_function_3d() evaluates a function f(x, y) over a grid:

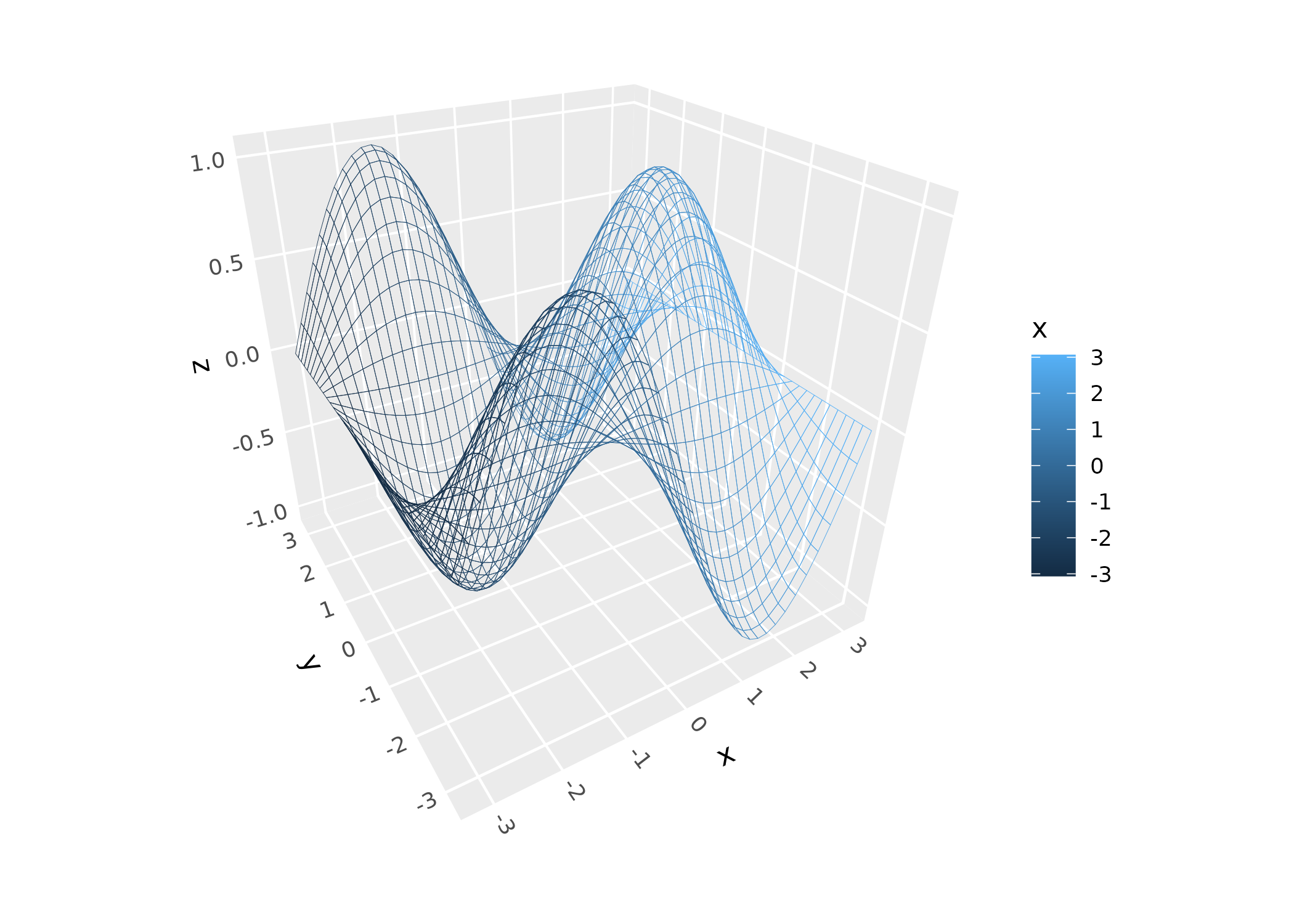

ggplot(mapping = aes(color = after_stat(x))) +
  geom_function_3d(fun = function(x, y) sin(x) * cos(y),
                   xlim = c(-pi, pi), ylim = c(-pi, pi),
                   fill = NA) + # disable fill to make wireframe
  coord_3d(light = "none")

Statistical models

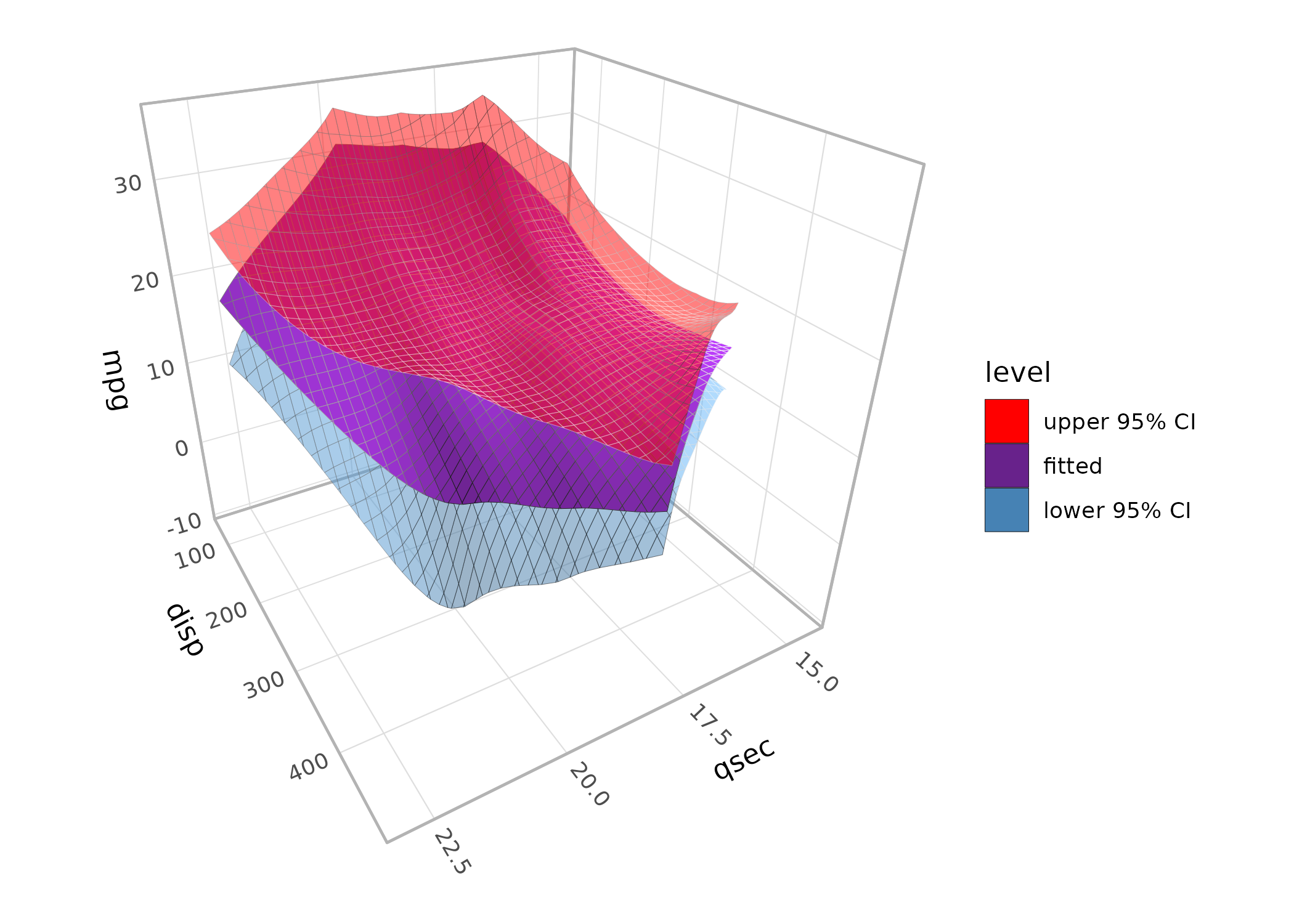

stat_smooth_3d() (or geom_smooth_3d()) fits a model to scattered (x, y, z) data and renders the fitted surface. It has options for different model types, for overlaying data point and residual lines, and for adding confidence interval surfaces as shown here:

ggplot(mtcars, aes(qsec, disp, mpg, fill = after_stat(level))) +
      geom_smooth_3d(domain = "chull", se = TRUE, color = "black") +
      scale_fill_manual(values = c("red", "darkorchid4", "steelblue")) +
      coord_3d(yaw = 150) + theme_light()

Kernel density

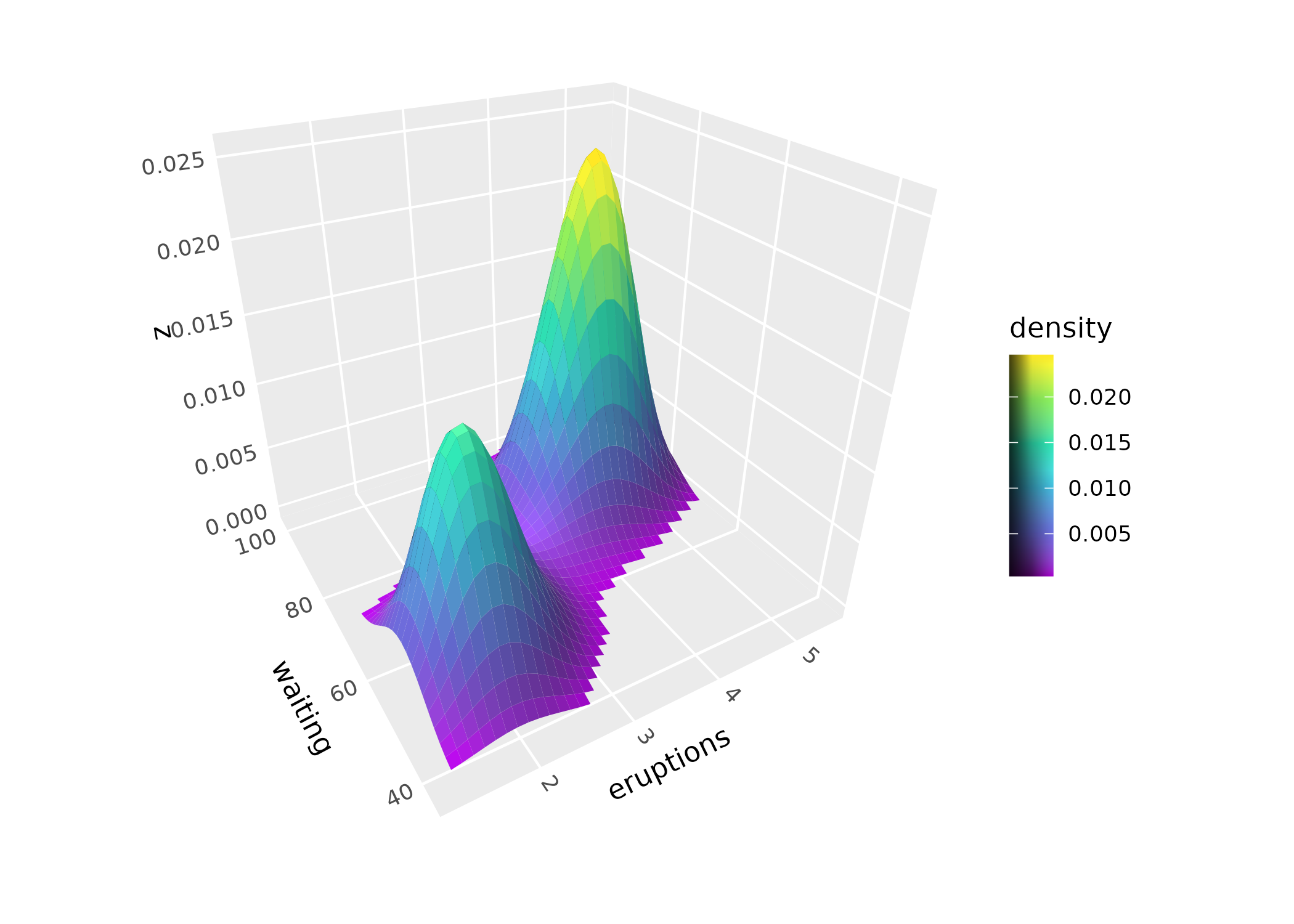

stat_density_3d() (or geom_density_3d()) computes a 2D kernel density estimate. It has options for modifying bandwidth, resolution:

ggplot(faithful, aes(eruptions, waiting)) +
  geom_density_3d(min_ndensity = .01) +
  guides(fill = guide_colorbar_3d()) +
  coord_3d() +
  scale_fill_viridis_c()

Working with surface meshes

The following options apply to geom_surface_3d() and the tessellated mesh it produces.

Grid types

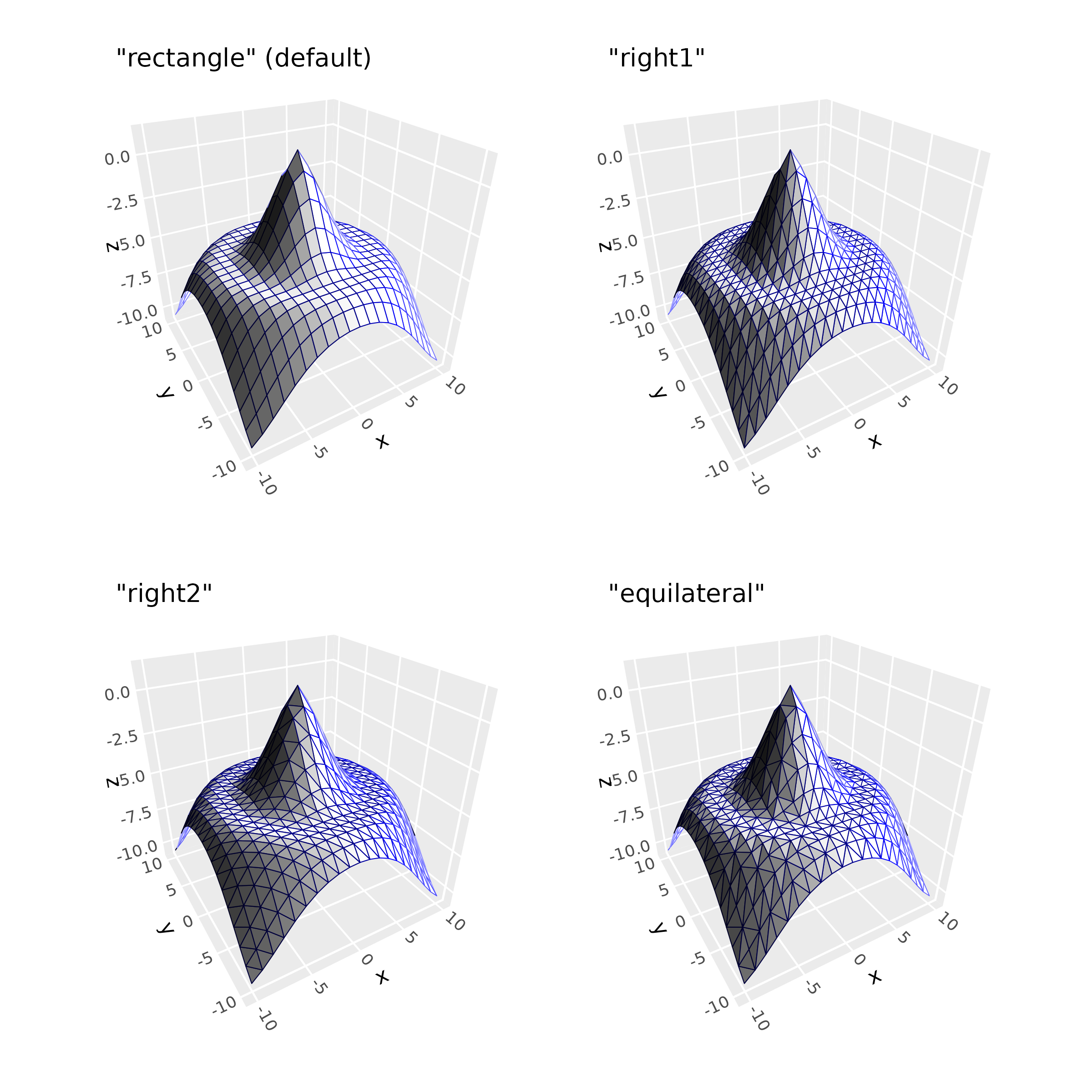

The grid parameter controls tile geometry. The default "rectangle" produces rectangular tiles. "right1" and "right2" split each rectangle into right triangles along opposite diagonals, and "equilateral" produces an equilateral triangular lattice. Triangulated grids can prevent lighting artifacts on sharply curving surfaces:

d <- dplyr::mutate(tidyr::expand_grid(x = -10:10, y = -10:10),
                   z = sqrt(x^2 + y^2) / 1.5,
                   z = cos(z) - z)
p <- ggplot(d, aes(x, y, z)) +
  coord_3d(light = light(mode = "hsl", direction = c(1, 0, 0)))

(p + geom_surface_3d(fill = "white", color = "darkblue",
                      linewidth = .2) +
    ggtitle('"rectangle" (default)')) +
  (p + geom_surface_3d(fill = "white", color = "darkblue",
                        linewidth = .2, grid = "right1") +
      ggtitle('"right1"')) +
  (p + geom_surface_3d(fill = "white", color = "darkblue",
                        linewidth = .2, grid = "right2") +
      ggtitle('"right2"')) +
  (p + geom_surface_3d(fill = "white", color = "darkblue",
                        linewidth = .2, grid = "equilateral") +
      ggtitle('"equilateral"')) +
  plot_layout(ncol = 2)

Computed variables

Surface stats compute gradient information at each grid point, available via after_stat(): partial derivatives (dzdx, dzdy), gradient magnitude (slope), and direction of steepest ascent (aspect):

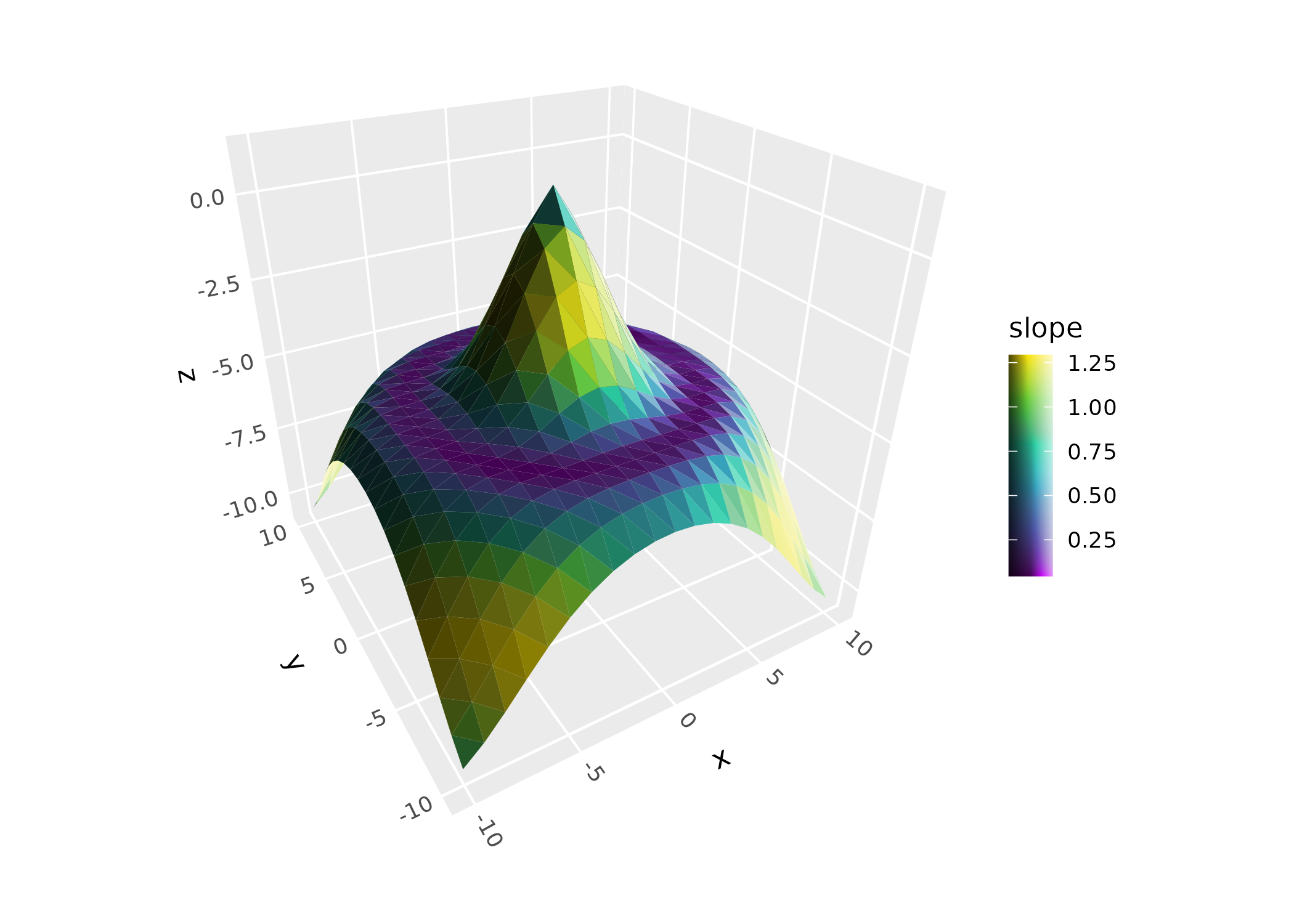

p + geom_surface_3d(aes(fill = after_stat(slope)), grid = "right2") +
  scale_fill_viridis_c() +
  guides(fill = guide_colorbar_3d())

Lighting

Surfaces often benefit from ggcube’s lighting system, which modifies polygon face colors based on their orientation relative to a light source. Note that since contours and ridgelines have uniform polygon orientation, they typically do not benefit from lighting. See the lighting article for details.

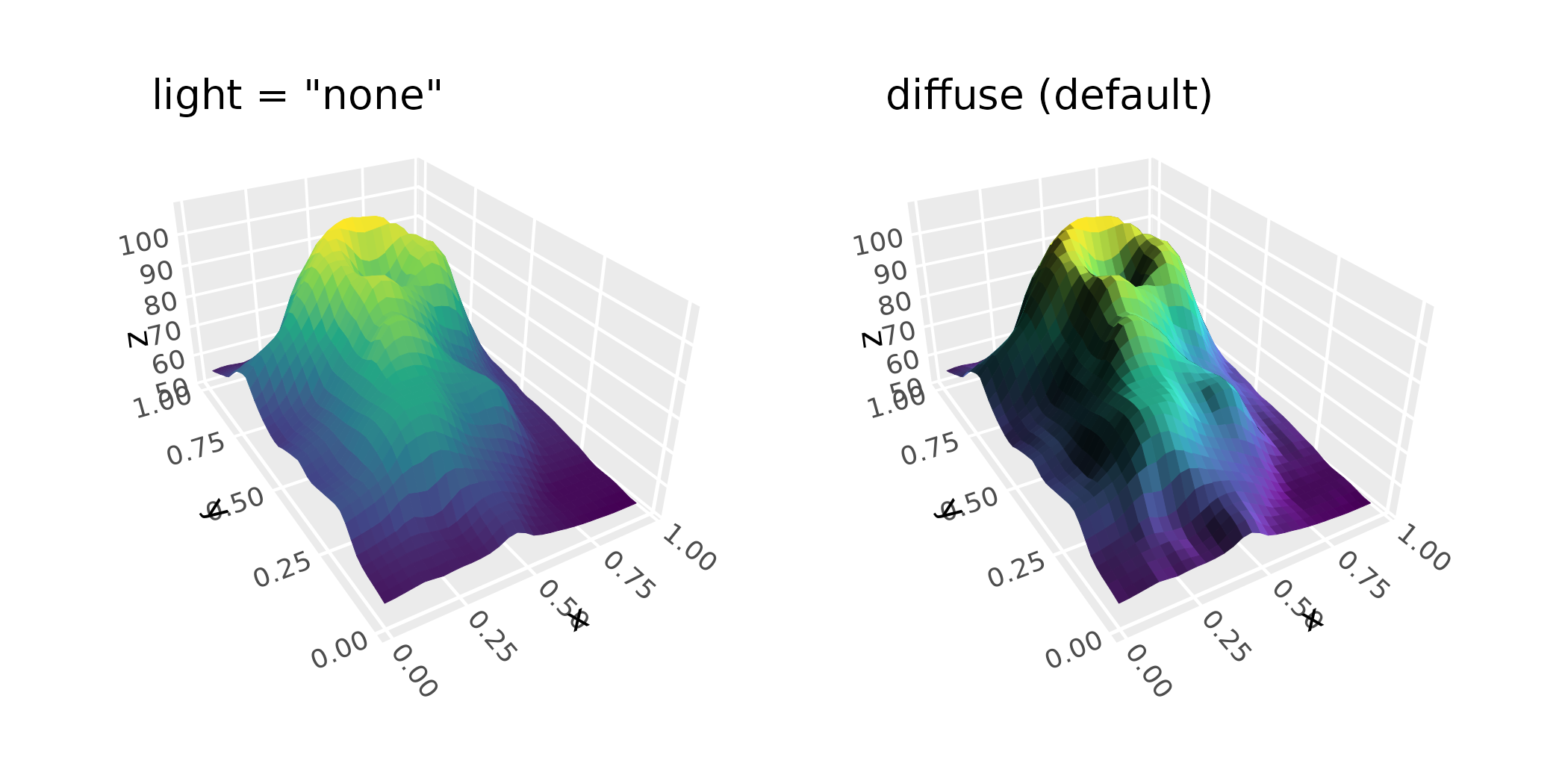

p <- ggplot(mountain, aes(x, y, z)) +
  coord_3d(ratio = c(1, 1.5, .75)) +
  scale_fill_viridis_c() + scale_color_viridis_c() +
  theme(legend.position = "none")

(p + geom_surface_3d(aes(fill = z, color = z), light = "none") +
    ggtitle('light = "none"')) +
  (p + geom_surface_3d(aes(fill = z, color = z),
                        light = light(direction = c(1, 0, 0))) +
      ggtitle("diffuse (default)")) +
  plot_layout(ncol = 2)
