Creates color guides that show shading variation as gradients within each color. Shows the full range of colors visible when shading is enabled in 3D plots.

Usage

guide_colorbar_3d(..., reverse_shade = FALSE, shade_range = c(-0.5, 0.5))

guide_legend_3d(..., reverse_shade = FALSE, shade_range = c(-0.5, 0.5))

guide_colorsteps_3d(..., reverse_shade = FALSE, shade_range = c(-0.5, 0.5))

guide_bins_3d(..., reverse_shade = FALSE, shade_range = c(-0.5, 0.5))

Arguments

...

Additional arguments passed to the corresponding ggplot2 guide: ggplot2::guide_colorbar(), ggplot2::guide_legend(), ggplot2::guide_colorsteps(), or ggplot2::guide_bins().

reverse_shade

Logical. If TRUE, reverses the lighting gradient direction. By default, shadows are placed on the left, or on the bottom for horizontal colorbars and color steps.

shade_range

Length-2 numeric vector in the range -1 to 1, giving the limits of the shading gradient. -1 is full shadow, 0 the colors as specified, and 1 full highlight, as set by the light's shadow and highlight. Default is c(-.5, .5).

Value

A guide object that displays shading effects

Details

When lighting applies to a layer that maps fill or colour, ggcube uses these guides by default, in place of ggplot2::guide_colourbar(), ggplot2::guide_legend(), ggplot2::guide_coloursteps(), and ggplot2::guide_bins(). Call them explicitly to change their options, or use e.g. guides(fill = "colourbar") for an unshaded guide. Guides given to a scale's guide argument as guide objects are left as they are.

guide_colorbar_3d() shades colorbars drawn as a raster (the default) or as rectangles; colorbars drawn with display = "gradient" are left unshaded.

When fill and color aesthetics map to the same variable (e.g., aes(fill = z, color = z)), ggplot2 creates a shared scale with a single guide. In this case, use guides(fill = guide_*_3d()) to apply shading, not guides(color = guide_*_3d()), even if your layer uses the color aesthetic. Only use the color guide when color and fill map to different variables and you want separate guides for each.

Examples

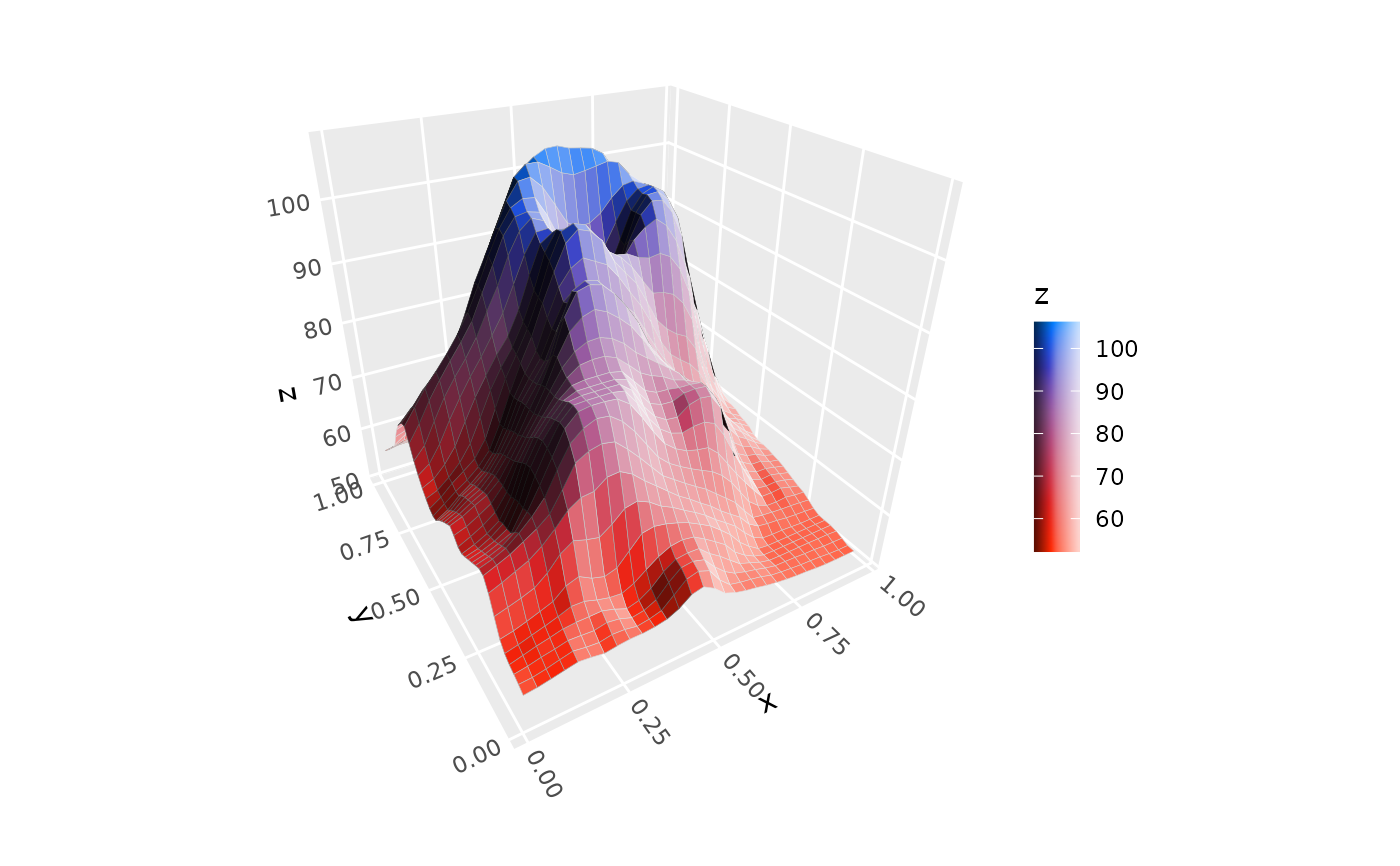

# 3D guides are used by default for lit layers
ggplot(mountain, aes(x, y, z, fill = z)) +
   stat_surface_3d() +
   scale_fill_gradientn(colors = c("tomato", "dodgerblue")) +
   coord_3d()


# a horizontal colorbar showing the full range of shading
ggplot(mountain, aes(x, y, z, fill = z)) +
   stat_surface_3d() +
   guides(fill = guide_colorbar_3d(shade_range = c(-1, 1), direction = "horizontal")) +
   scale_fill_gradientn(colors = c("tomato", "dodgerblue")) +
   coord_3d() +
   theme(legend.position = "bottom")

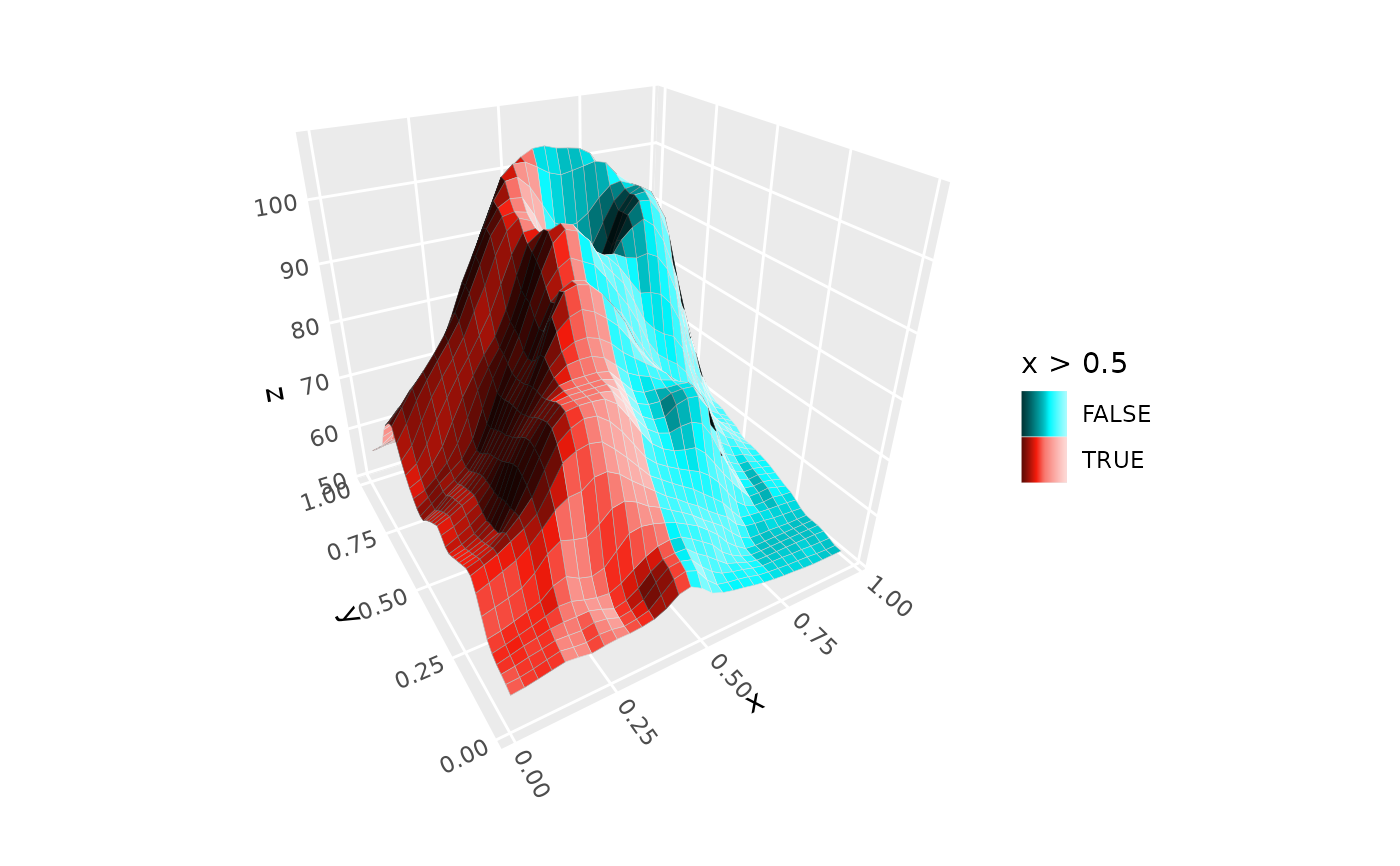

# discrete `legend` guide
ggplot(mountain, aes(x, y, z, fill = x > .5, group = 1)) +
   stat_surface_3d(light = light(direction = c(1, 0, 0))) +
   coord_3d()


# binned scales get shaded color steps
ggplot(mountain, aes(x, y, z, fill = z)) +
   stat_surface_3d() +
   scale_fill_viridis_b() +
   coord_3d()


# or shaded bins
ggplot(mountain, aes(x, y, z, fill = z)) +
   stat_surface_3d() +
   scale_fill_viridis_b(guide = "bins") +
   coord_3d()


# an unshaded guide
ggplot(mountain, aes(x, y, z, fill = z)) +
   stat_surface_3d() +
   guides(fill = "colourbar") +
   coord_3d()
