3D columns from grid data

Creates 3D columns (rectangular prisms) from grid data in which x and y fall on a regular grid. Works with both complete and sparse grid data. Each data point becomes a rectangular 3D column extending from a base level to the data value.

Usage

geom_col_3d(
  mapping = NULL,
  data = NULL,
  stat = StatCol3D,
  position = "identity",
  ...,
  width = 1,
  faces = "all",
  zmin = NULL,
  light = NULL,
  cull_backfaces = TRUE,
  sort_method = NULL,
  scale_depth = TRUE,
  force_convex = FALSE,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

stat_col_3d(
  mapping = NULL,
  data = NULL,
  geom = GeomPolygon3D,
  position = "identity",
  ...,
  width = 1,
  faces = "all",
  zmin = NULL,
  light = NULL,
  cull_backfaces = TRUE,
  sort_method = NULL,
  scale_depth = TRUE,
  force_convex = FALSE,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by aes().

data

The data to be displayed in this layer.

stat

The statistical transformation to use on the data. Defaults to StatCol3D.

position

Position adjustment, defaults to "identity". To collapse the result onto one 2D surface, use position_on_face().

...

Other arguments passed on to the layer function (typically GeomPolygon3D), such as aesthetics like colour, fill, linewidth, annotate = annotate_3d(...), etc.

width

Numeric value controlling box width as a fraction of grid spacing. Default is 1.0 (volumes touch each other). Use 0.8 for small gaps, 1.2 for overlap. Grid spacing is determined automatically using ggplot2::resolution()

faces

Character vector specifying which faces to render. Options:

"all" (default): Render all 6 faces
"none": Render no faces
Vector of face names: c("zmax", "xmin", "ymax"), etc.

Valid face names: "xmin", "xmax", "ymin", "ymax", "zmin", "zmax". Note that this setting acts jointly with backface culling, which removes faces whose interior faces the viewer – e.g., when cull_backfaces = TRUE and faces = "all" (the default), only front faces are rendered.

zmin

Base level for all columns. When provided as a parameter, overrides any zmin aesthetic mapping. If NULL (the default), uses the zmin aesthetic if mapped, otherwise defaults to 0.

light

A lighting specification object created by light(),"none" to disable lighting, or NULL to inherit plot-level lighting specs from the coord. Specify plot-level lighting in coord_3d() and layer-specific lighting in geom_*3d() functions.

cull_backfaces

Logical indicating whether to remove back-facing polygons from rendering. This is primarily for performance optimization but may be useful for aesthetic reasons in some situations. Backfaces are determined using screen-space winding order after 3D transformation. Defaults vary by geometry type: FALSE for open surface-type geometries, TRUE for solid objects (hulls, voxels, etc. where backfaces are generally hidden unless frontfaces are transparent or explicitly disabled).

sort_method

Depth sorting algorithm. See sorting_methods for details.

scale_depth

Logical indicating whether polygon linewidths should be scaled to make closer lines wider and farther lines narrower. Default is TRUE. Scaling is based on the mean depth of a polygon.

force_convex

Logical indicating whether to remove polygon vertices that are not part of the convex hull. Default value varies by geom. Specifying TRUE can help reduce artifacts in surfaces that have polygon tiles that wrap over a visible horizon. For prism-type geoms like columns and voxels, FALSE is safe because polygons fill always be convex.

na.rm

If FALSE, missing values are removed.

show.legend

Logical indicating whether this layer should be included in legends.

inherit.aes

If FALSE, overrides the default aesthetics.

geom

The geometric object used to display the data. Defaults to GeomPolygon3D.

Value

A Layer object that can be added to a ggplot.

Details

This is analogous to ggplot2::geom_col() for 3D plots. For automatic counting or binning, see geom_bar_3d().

Note that column geometries often require pairwise depth sorting for correct rendering. This is the default for smaller data sets, but not for larger data sets due to compute speed; in those cases you may wish to manually specify sort_method = "pairwise" for good results.

Aesthetics

stat_col_3d() requires the following aesthetics:

x: X coordinate (grid position)
y: Y coordinate (grid position)
z: Z coordinate (column top height)

And optionally understands:

zmin: Base level for each column (can be overridden by the zmin parameter)

Computed variables

normal_x, normal_y, normal_z: Face normal components
col_id: Sequential column number
face_type: Face name ("zmax", "xmin", etc.)

Examples

# Basic 3D bar chart from regular grid
# (columns extend from z=0 by default)
d <- expand.grid(x = 1:5, y = 1:5)
d$z <- d$x + d$y + rnorm(25, 0, 0.5)
ggplot(d, aes(x, y, z)) +
  geom_col_3d() +
  coord_3d()


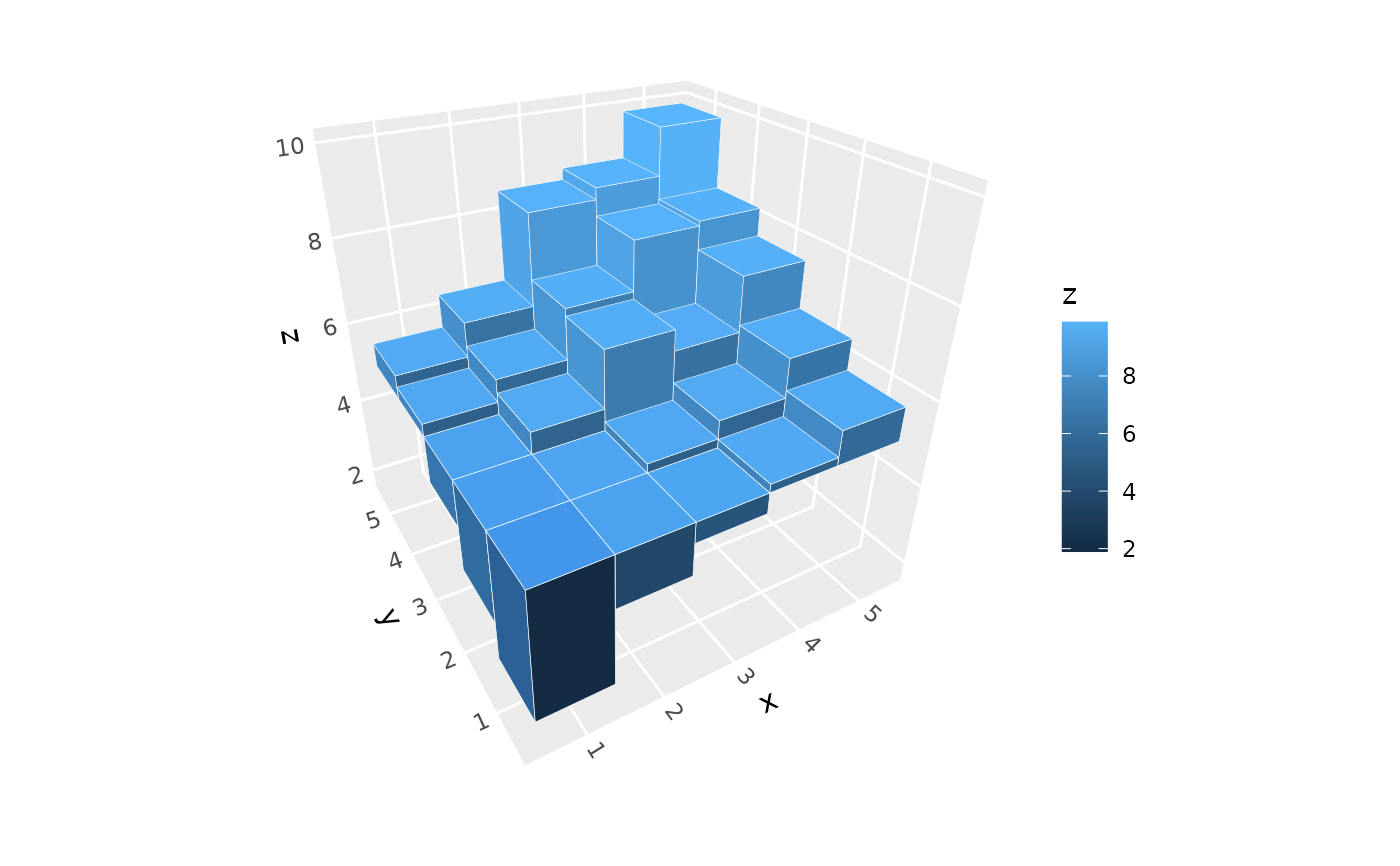

# Set uniform base level using `zmin` parameter
ggplot(d, aes(x, y, z)) +
  geom_col_3d(aes(fill = z), color = "white",
              zmin = 5) +
  coord_3d()


# Set variable base levels using `zmin` aesthetic
d$base_level <- runif(nrow(d), -5, 1)
ggplot(d, aes(x, y, z = z, zmin = base_level)) +
  geom_col_3d(color = "black") +
  coord_3d()


# Show only a subset of column faces
ggplot(d, aes(x, y, z)) +
  geom_col_3d(faces = c("zmax", "ymin"),
    cull_backfaces = FALSE,
    fill = "steelblue", color = "black") +
  coord_3d()


# With gaps between columns
ggplot(d, aes(x, y, z)) +
  geom_col_3d(color = "black", width = 0.6) +
  coord_3d()
