Turns 3D point clouds into surface hulls, using either convex hull or alpha shape algorithms. Hulls are triangulated, except that adjacent triangles lying in the same plane are merged into a single polygonal face, so that e.g. the hull of a box's corners is drawn with square faces.
Usage
geom_hull_3d(
mapping = NULL,
data = NULL,
stat = StatHull3D,
position = "identity",
...,
annotate = deprecated(),
method = "convex",
radius = NULL,
singular = FALSE,
light = NULL,
cull_backfaces = TRUE,
sort_method = deprecated(),
scale_depth = TRUE,
inherit.aes = TRUE,
show.legend = TRUE
)
stat_hull_3d(
mapping = NULL,
data = NULL,
geom = GeomPolygon3D,
position = "identity",
...,
method = "convex",
radius = NULL,
singular = FALSE,
light = NULL,
cull_backfaces = TRUE,
sort_method = deprecated(),
scale_depth = TRUE,
inherit.aes = TRUE,
show.legend = TRUE
)Arguments
- mapping
Set of aesthetic mappings created by
aes(). The required aesthetics arex,y, andz. Additional aesthetics can use computed variables withggplot2::after_stat().- data
The data to be displayed in this layer.
- stat
The statistical transformation to use on the data. Defaults to
StatHull3D.- position
Position adjustment, defaults to "identity". To collapse the result onto one 2D surface, use
position_on_face().- ...
Other arguments passed on to the layer function (typically GeomPolygon3D), such as aesthetics like
colour,fill,linewidth, etc. Unlesscolouris mapped or set, opaque polygons are outlined in their fill color, which hides the seams between adjacent polygons, and translucent polygons aren't outlined. These outlines are lit along with the fill, whatever thefillandcolorarguments oflight(). Contours and ridgelines are the exception, with outlines of their own.- annotate
Deprecated. Add annotations to the plot with
+ annotate_3d()instead. All 3D layers in a panel are depth-sorted together, so annotations no longer need to be embedded in a layer.- method
Triangulation method. Either:
"convex": Convex hull triangulation (default). Requires the geometry package."alpha": Alpha shape triangulation (can capture non-convex topologies)
- radius
The "alpha" parameter when alpha method is used. A face is included in the resulting alpha shape if it can be "exposed" by a sphere of this radius. If NULL (the default), a simple heuristic based on the data scale is used to calculate a radius value. Note that alpha shapes are quite sensitive to the coordinate scales of your data. See Details section.
- singular
Whether to include "singular" faces when
method = "alpha". These are faces that do not bound any enclosed volume, appearing as isolated sheets dangling from the surface, and are usually a sign thatradiusis slightly too small. Because they enclose nothing, they have no well-defined outward direction: their lighting is arbitrary and they are never culled. Defaults toFALSE.- light
A lighting specification object created by
light(),light("none")or the string"none"to disable lighting, orNULLto inherit plot-level lighting. Set plot-level lighting by addinglight()to the plot, and layer-specific lighting via thelightargument ofgeom_*_3d()functions, which takes precedence.- cull_backfaces
Logical indicating whether to remove back-facing polygons from rendering. This is primarily for performance optimization but may be useful for aesthetic reasons in some situations. Backfaces are determined using screen-space winding order after 3D transformation. Defaults vary by geometry type: FALSE for open surface-type geometries, TRUE for solid objects (hulls, voxels, etc. where backfaces are generally hidden unless frontfaces are transparent or explicitly disabled).
- sort_method
Deprecated. All 3D layers in a panel are now depth-sorted together, pairwise, so this has no effect. See sorting_methods.
- scale_depth
Controls whether polygon linewidths are scaled to make closer lines wider and farther lines narrower, based on the mean depth of a polygon.
TRUE(the default) applies full scaling andFALSEdisables it; a number sets the strength directly, where1matchesTRUE,0matchesFALSE, values below 1 subdue the effect and values above 1 exaggerate it. This affects the layer only; usecoord_3d(scale_depth = )for gridlines, cube borders, axis ticks, and axis text.- inherit.aes
If
FALSE, overrides the default aesthetics.- show.legend
Logical indicating whether this layer should be included in legends.
- geom
The geometric object used to display the data. Defaults to
GeomPolygon3D.
Grouping
Hulls respect ggplot2 grouping aesthetics. To create separate hulls for different
subsets of your data, use aes(group = category_variable) or similar grouping aesthetics.
Each group will get its own independent hull. Groups that can't enclose a
volume, having fewer than four points or all their points in one plane, are
dropped with a warning; this can happen when limits on the plot's scales
remove most of a group's points.
Alpha scale sensitivity
Alpha shape method is highly sensitive to coordinate scales. radius is expressed
in data units, so a value that works for data scaled 0-1 will likely fail for data
scaled 0-1000.
Guidelines for choosing radius:
Start at a small fraction of your data's overall extent and adjust based on results
For data with mixed scales (e.g., x: 0-1, y: 0-1000), consider rescaling your data first
Larger radius values → smoother, more connected surfaces
Smaller radius values → more detailed surfaces, but may fragment
If you get no triangles, try increasing radius by 10x
If surface fills unwanted holes, try decreasing radius by 10x
Aesthetics
stat_hull_3d() requires the following aesthetics:
x: X coordinate
y: Y coordinate
z: Z coordinate
See also
geom_isodensity_3d() for contours of 3D density fields,
coord_3d() for 3D coordinate systems, geom_polygon_3d for the
default geometry with depth sorting, light() for lighting specifications.
Examples
# A solid torus: a shape whose hole a convex hull cannot represent
set.seed(1)
n <- 2000
theta <- runif(n, 0, 2 * pi) # position around the ring
phi <- runif(n, 0, 2 * pi) # position around the tube
rho <- sqrt(runif(n)) # distance from the tube center
torus <- data.frame(
x = (3 + rho * cos(phi)) * cos(theta),
y = (3 + rho * cos(phi)) * sin(theta),
z = rho * sin(phi)
)

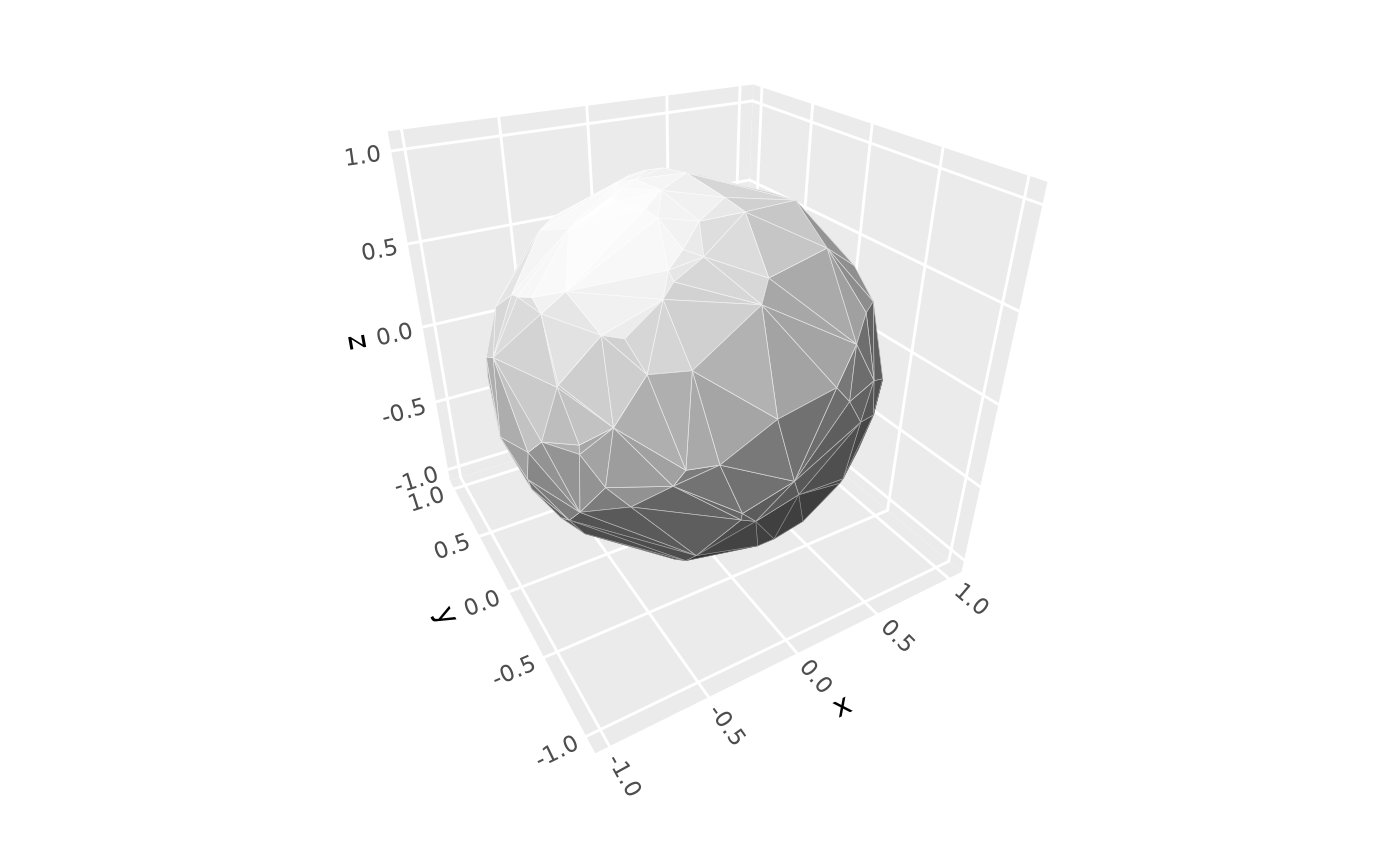

# Convex hull: the hole is bridged over
ggplot(torus, aes(x, y, z)) +
geom_hull_3d(method = "convex", fill = "gray40") +
coord_3d(scales = "fixed")
# Alpha shape: the hole is preserved
# \donttest{
ggplot(torus, aes(x, y, z)) +
geom_hull_3d(method = "alpha", radius = 0.6, fill = "gray40") +
coord_3d(scales = "fixed")
#> Warning: RGL: unable to open X11 display
#> Warning: 'rgl.init' failed, will use the null device.
#> See '?rgl.useNULL' for ways to avoid this warning.
# }

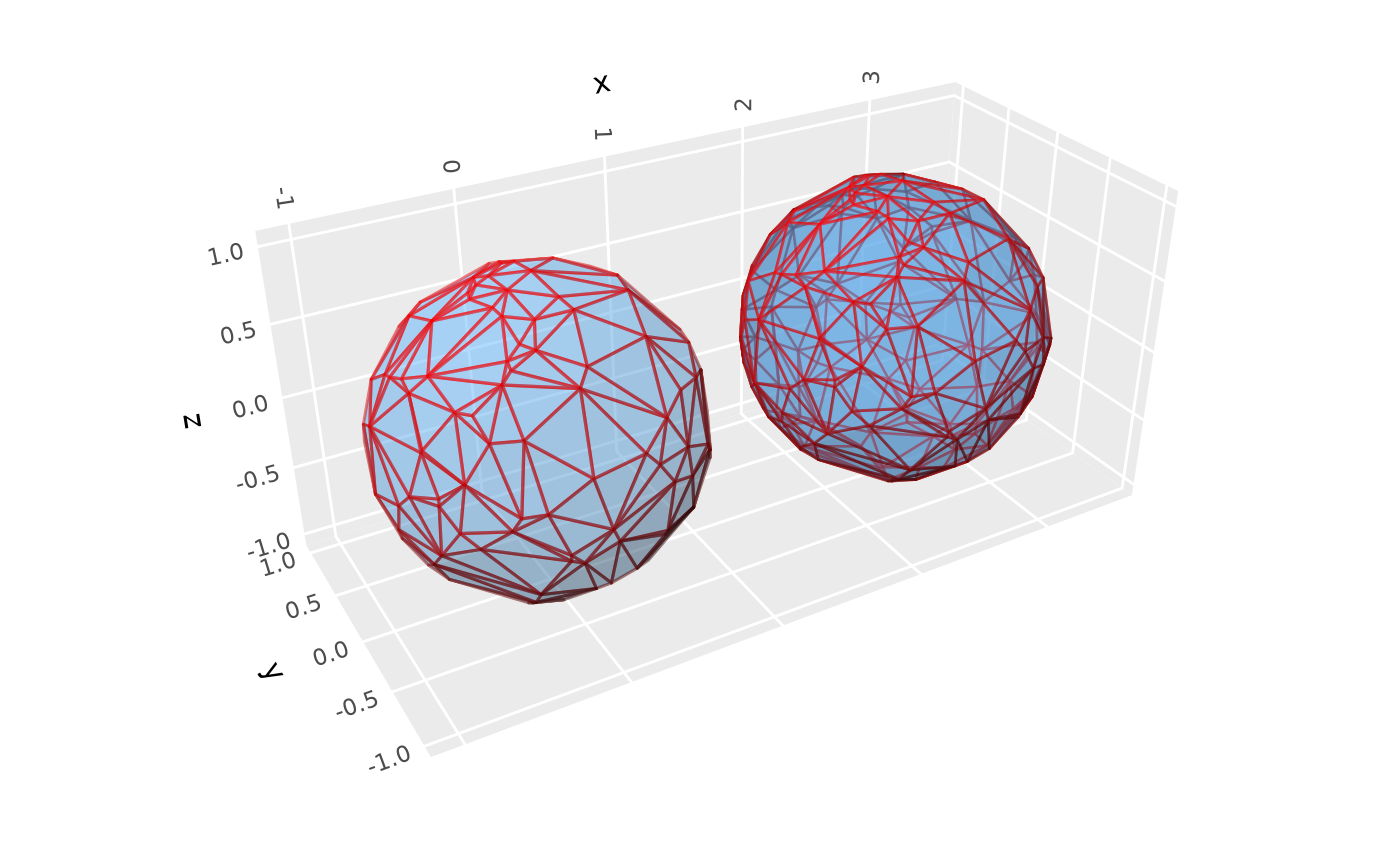

# Use `cull_backfaces = FALSE` to render far side of hull
# \donttest{
ggplot(torus, aes(x, y, z)) +
geom_hull_3d( # default culling for comparison
method = "alpha", radius = 0.6, light = NULL,
fill = "steelblue", color = "darkred", linewidth = .5, alpha = .5) +
geom_hull_3d( # culling disabled
aes(x = x + 9), cull_backfaces = FALSE,
method = "alpha", radius = 0.6, light = NULL,
fill = "steelblue", color = "darkred", linewidth = .5, alpha = .5) +
coord_3d(scales = "fixed")
# }
# Use grouping to build separate hulls for data subsets
ggplot(iris, aes(Petal.Length, Sepal.Length, Sepal.Width,
color = Species, fill = Species)) +
geom_hull_3d() +
coord_3d(scales = "fixed")
