library(ggcube)
library(patchwork)
theme_set(theme_gray())
theme_update(axis.text = element_blank(),
axis.title = element_blank())Lighting modifies the fill and/or color of polygon faces based on their orientation relative to a light source, giving surfaces and volumes a sense of depth and shape. ggcube’s lighting system only renders form shadows, not cast shadows. Lighting can be applied to any polygon-based 3D layer — surfaces, hulls, bars, voxels, and polygon text — but is useful mainly for layers where polygon orientation varies.
Lighting colors each face in three steps. First, the angle between the face and the direction toward the light is measured. Then a ramp turns that angle into how far the face moves toward shadow or highlight: by default, faces at 45 degrees to the light keep exactly the color you gave them, faces turned further toward the light are highlighted, and faces turned further away are shadowed. Finally, a tone decides what lighter and darker look like for a given color: by default, colors become lighter and darker versions of the same hue.
This vignette covers how to control what parts of your plot lighting is applied to, how to change the visual qualities of the lighting, how to change the direction of the light source, how to control how the underside of a polygon is lit, and how lighting is shown in guides.
We’ll use a common base plot throughout: a sphere, drawn as an isosurface of a function of x, y, and z. Here it is with default lighting:
# a unit sphere, centered at x = x0
sphere <- function(x0 = 0, n = 40, ...) {
geom_isofunction_3d(fun = function(x, y, z) (x - x0)^2 + y^2 + z^2 - 1,
xlim = x0 + c(-1.1, 1.1), ylim = c(-1.1, 1.1), zlim = c(-1.1, 1.1),
n = n, ...)
}

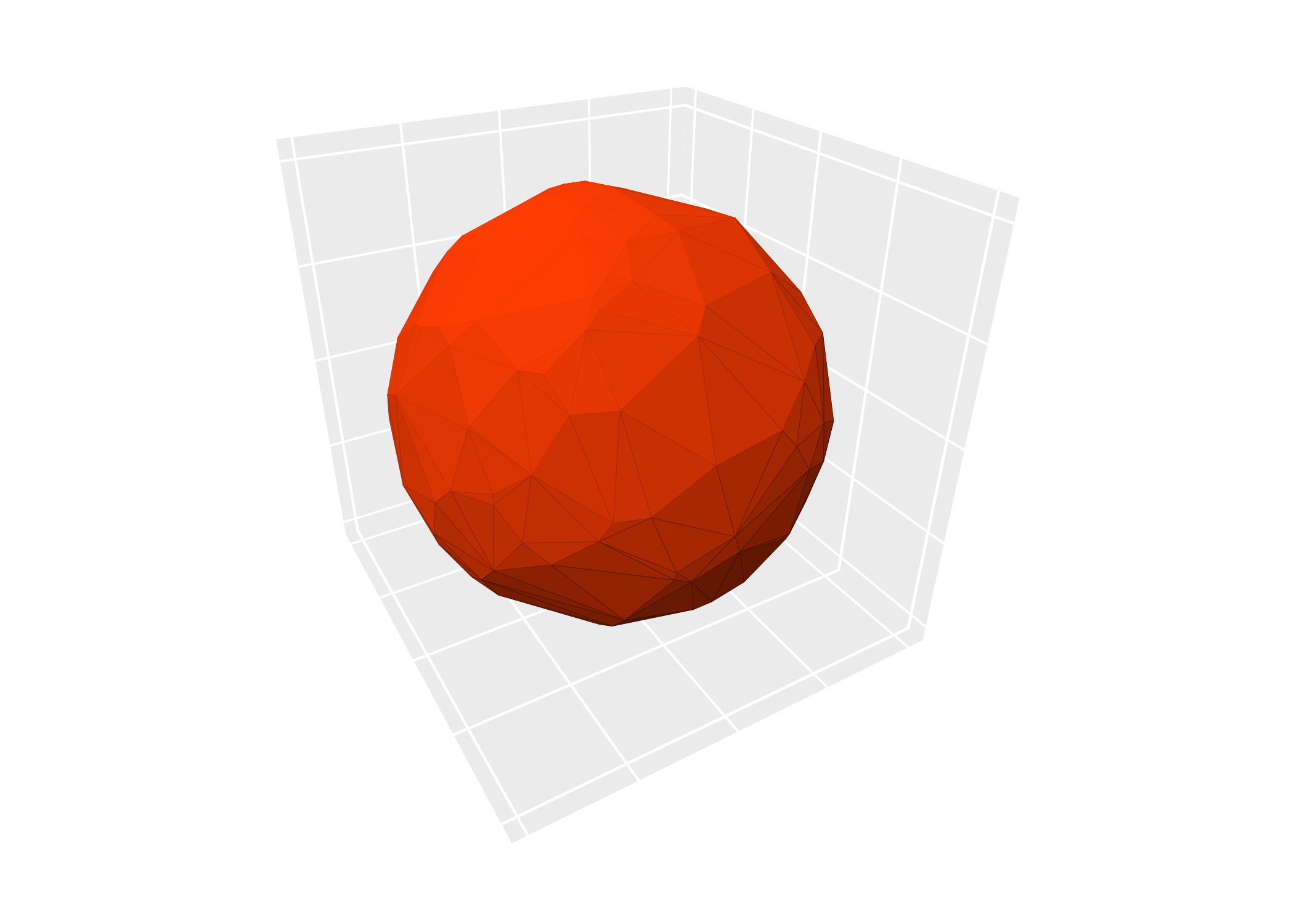

p <- ggplot() +
sphere(fill = "#9e2602") +
coord_3d(scales = "fixed")
p
Lighting targets
Lighting can be set at two levels:
-
Plot-level: adding
light(...)to a plot applies it to all layers. It can appear anywhere in the plot expression, before or aftercoord_3d(). (Lighting can also be passed tocoord_3d(light = ...), which is useful when you want a reusable coord object that carries its own lighting; supplying it in both places is an error.) -
Layer-level:
geom_*_3d(light = light(...))overrides the plot-level setting for that layer.
Use light("none") to disable lighting entirely, or
light = NULL in a layer to inherit the plot-level setting

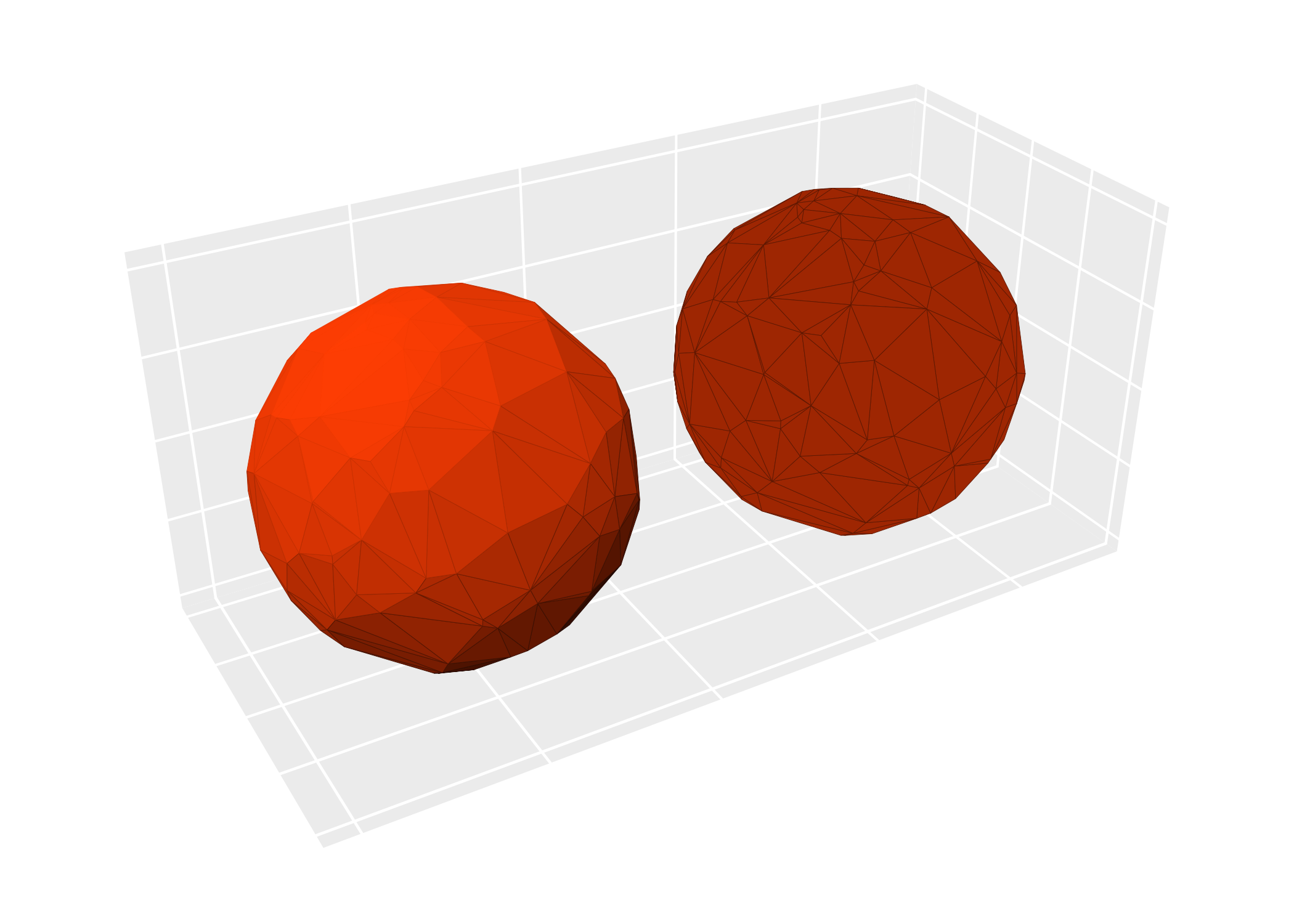

(the default layer behavior). Here we add a second layer to our plot,
and override the inherited light settings to disable lighting for this
layer:
p + sphere(x0 = 2.5, fill = "#9e2602", light = "none")

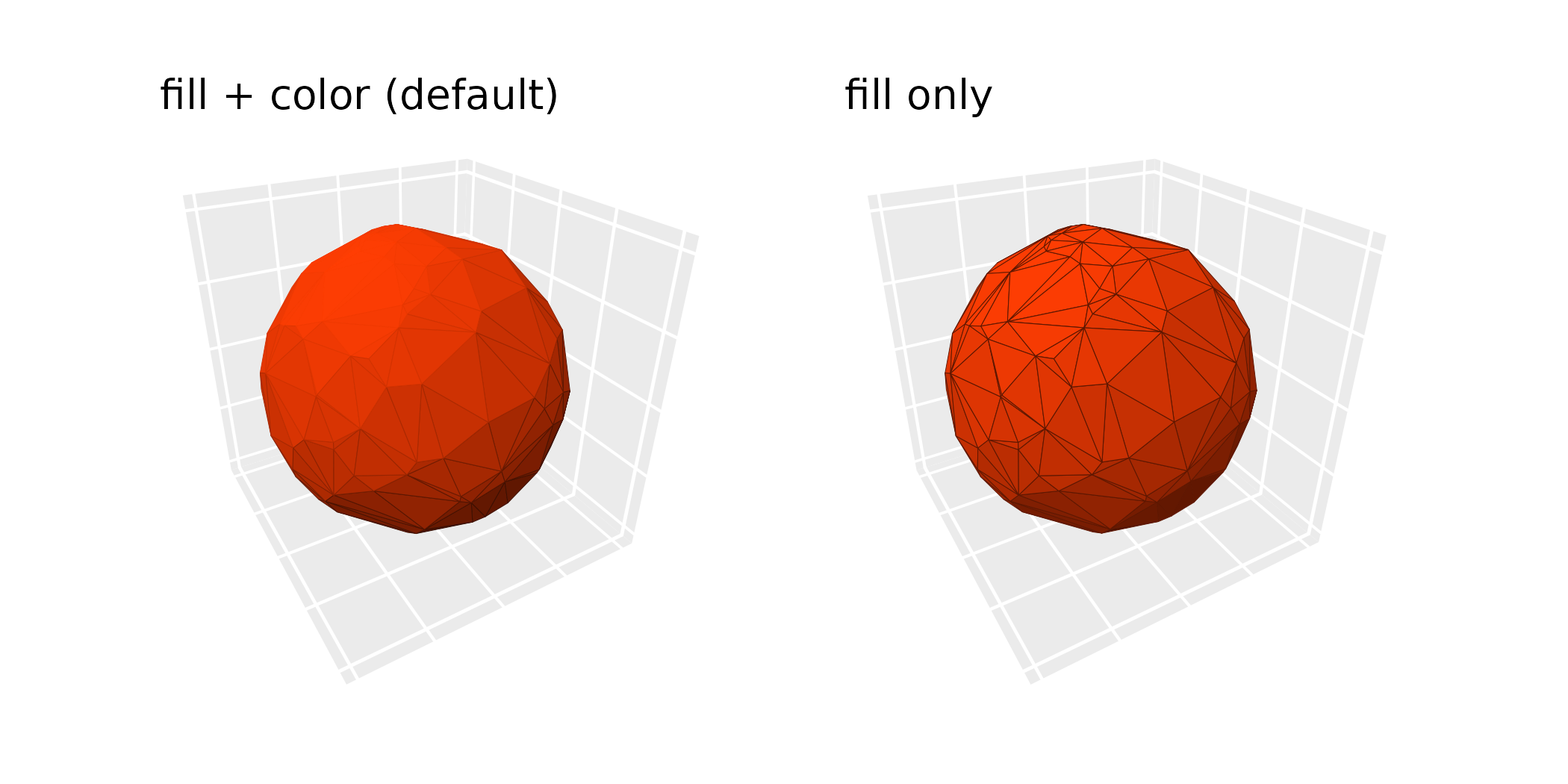

The fill and color parameters control which
aesthetics get modified by lighting. By default both are
TRUE. Here a coarser sphere is outlined in white, which is
lit along with the fill by default, and stays white with
color = FALSE:
pw <- ggplot() +
sphere(n = 12, fill = "#9e2602", color = "white", linewidth = .3) +
coord_3d(scales = "fixed")
(pw + ggtitle("fill + color (default)")) +
(pw + light(fill = TRUE, color = FALSE) + ggtitle("fill only"))
When no color is given, polygon layers outline polygons in their fill color, which hides the seams between them. These outlines are always lit along with the fill.

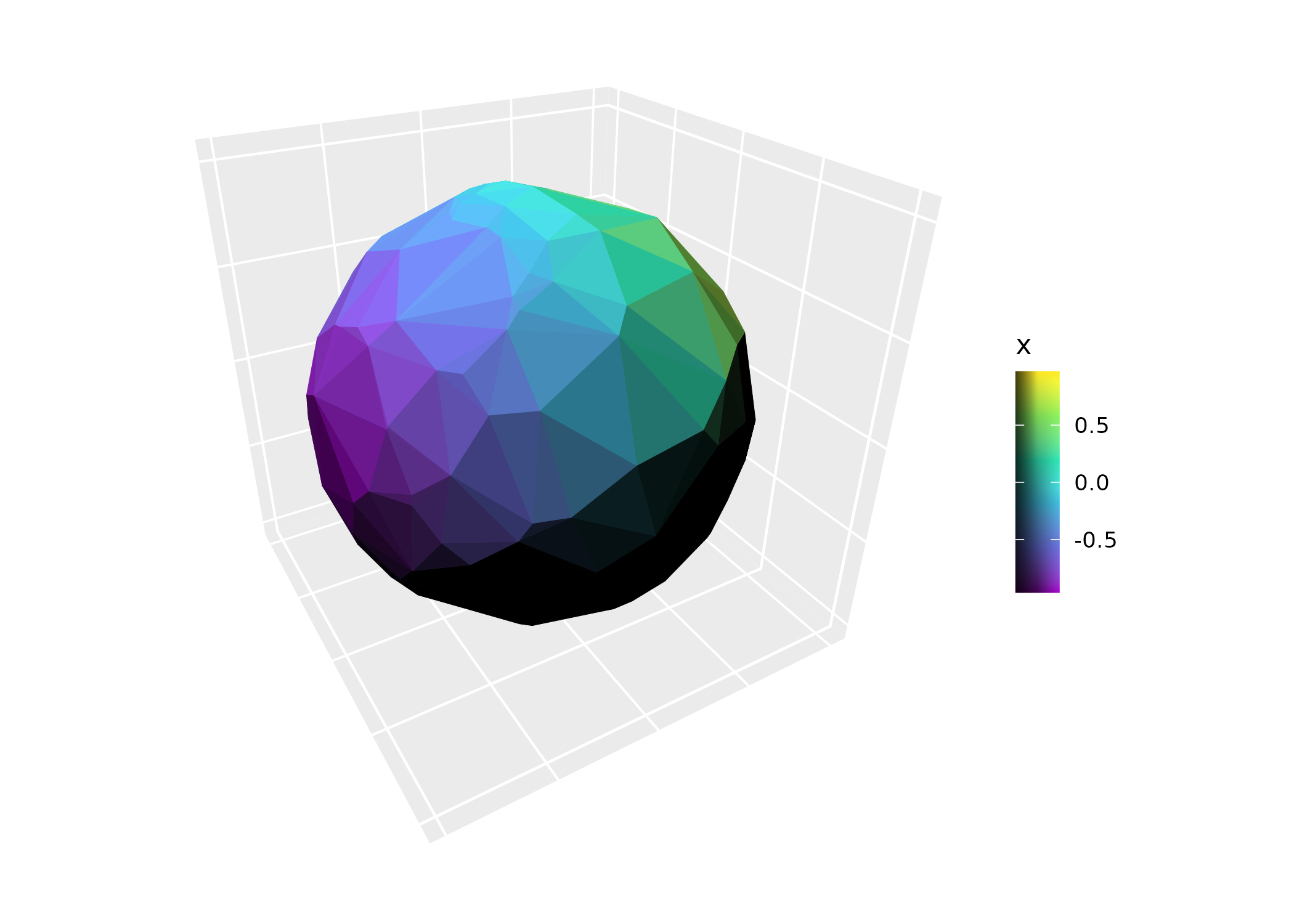

Lighting works with both solid and aesthetically-mapped colors:
ggplot() +
sphere(mapping = aes(fill = after_stat(x))) +
scale_fill_viridis_c() +
coord_3d(scales = "fixed")
Contours (geom_contour_3d()) and ridgelines
(geom_ridgeline_3d()) are the exception to default
lighting: their faces all point the same way, so lighting could only
shift all their colors away from those you gave them. They are lit only
when you set lighting explicitly, with + light() or their
light argument.
Light qualities

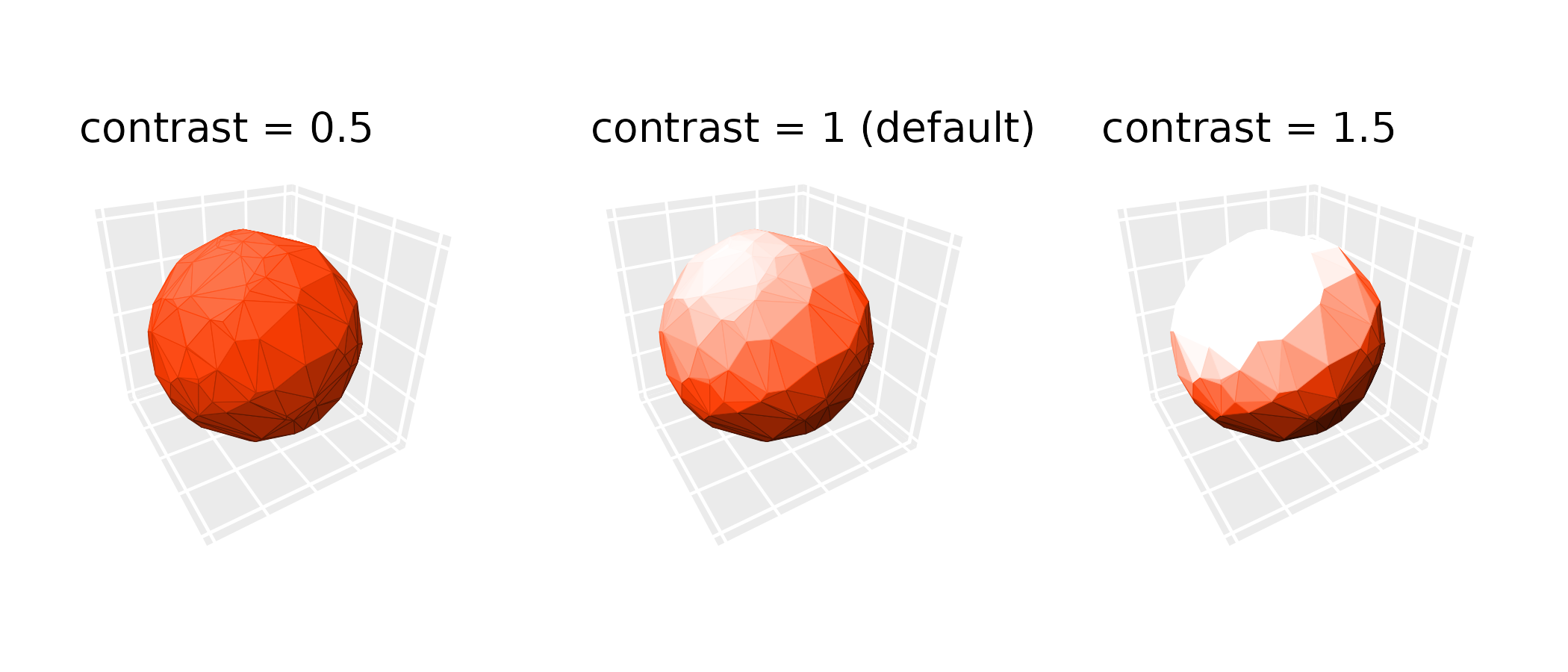

Shadow and highlight strength
shadow and highlight set how strong shadows
and highlights are, from 0 (none) to 1 (fully black or white, with the
default tone). By default shadows are stronger than highlights
(shadow = 0.8, highlight = 0.6), since fading
to black looks more natural than fading to white:
(p + light(shadow = 0.4, highlight = 0.3) + ggtitle("subtle")) +
(p + ggtitle("default")) +
(p + light(shadow = 1, highlight = 0.9) + ggtitle("strong")) +
plot_layout(ncol = 3)

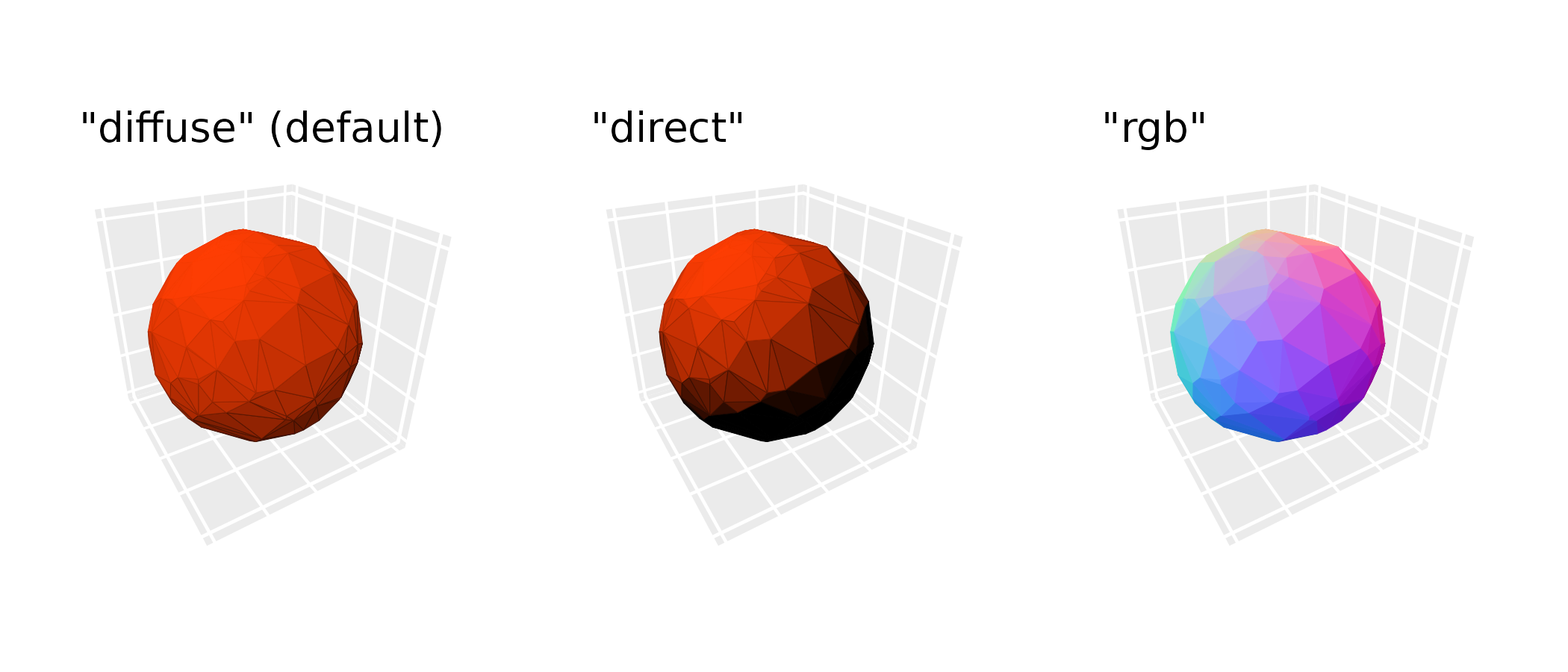

Ramps
A ramp decides how brightness changes as a surface turns away from the light:
-
"smooth"(default): Brightness changes gradually. Only surfaces pointing directly away from the light source are fully shadowed. -
"hard": All surfaces angled 90 degrees or more from the light are fully shadowed, giving a sharp edge between lit and unlit sides. -
"steps": Brightness falls into flat bands, for a cartoon-like look. -
"none": Disables lighting across the plot, except for layers that declare it themselves.
(p + ggtitle('"smooth" (default)')) +
(p + light("hard") + ggtitle('"hard"')) +
(p + light("steps") + ggtitle('"steps"')) +
plot_layout(ncol = 3)
For more control, give a ramp object instead of a name:
ramp_smooth(), ramp_hard(), and
ramp_steps() take a neutral angle, at which
faces keep their base color, and ramp_steps() takes the
number of bands, n. A smaller neutral angle
puts the base color on faces closer to facing the light, which darkens
the plot overall. Stepped bands run evenly from full highlight to full
shadow; instead of n and neutral,
ramp_steps() can take the angles from the light at which
bands divide, as breaks:
(p + light(ramp_smooth(neutral = 30)) + ggtitle("ramp_smooth(neutral = 30)")) +
(p + light(ramp_smooth(neutral = 60)) + ggtitle("ramp_smooth(neutral = 60)")) +
(p + light(ramp_steps(breaks = c(60, 90))) + ggtitle("ramp_steps(breaks = c(60, 90))")) +
plot_layout(ncol = 3)

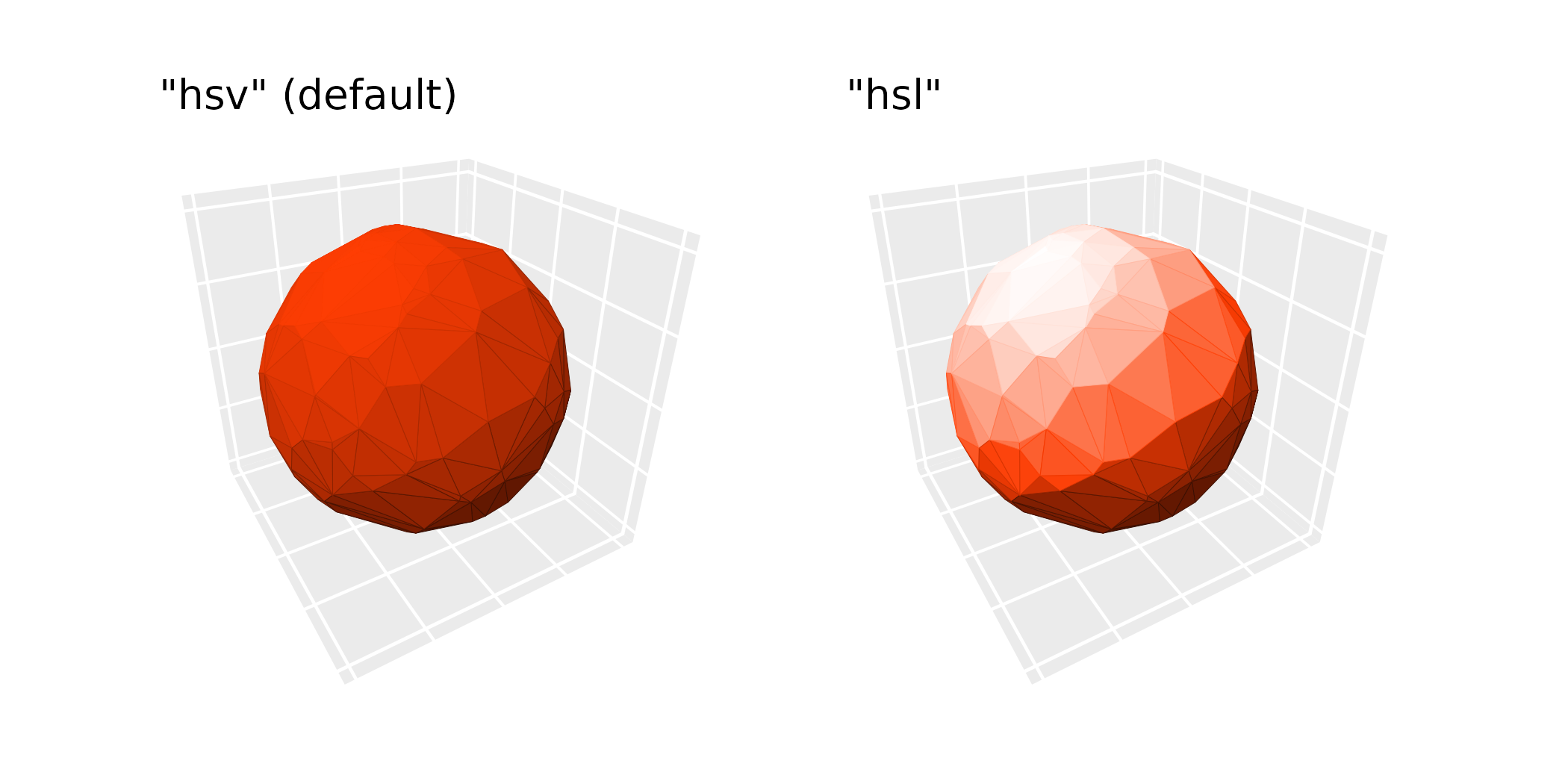

Tones
A tone decides what lighter and darker look like for a given color:
-
"lightness"(default): Colors become lighter and darker versions of the same hue, reaching white at full highlight and black at full shadow. Lightness is changed in the perceptual OKLab color space, which keeps hue as colors lighten and darken. -
"tint": Colors mix toward a chosen highlight color and shadow color, for colored light. -
"normals": Faces are colored by the direction they face, replacing the base colors entirely.
Give tone_tint() its colors to choose the color of the
light. Warm highlights with cool shadows are a classic choice:
(p + ggtitle('"lightness" (default)')) +
(p + light(tone = tone_tint(shadow = "midnightblue", highlight = "lightyellow")) +
ggtitle("tone_tint()")) +
(p + light(tone = "normals") + ggtitle('"normals"')) +
plot_layout(ncol = 3)
Specular highlights
specular adds glints where faces reflect the light
toward the viewer, as on a glossy surface, from 0 (none, the default) to
1 (reaching the tone’s full highlight at the center of a glint).
specular_size sets how far glints spread, as the angle in
degrees by which a face can turn from reflecting the light straight
toward the viewer before its glint falls to half strength. Glints move
toward the tone’s full highlight color, so colored light gives colored
glints, and with stepped ramps they’re flat spots, like another
band:
(p + light(specular = .8) + ggtitle("specular = .8")) +
(p + light(specular = .8, tone = tone_tint(shadow = "midnightblue", highlight = "gold")) +
ggtitle("with tone_tint()")) +
(p + light(ramp_steps(breaks = c(60, 90)), specular = .8) + ggtitle("with ramp_steps()")) +
plot_layout(ncol = 3)
Unlike the rest of lighting, glints depend on the viewing angle, so they move as a plot rotates. Each face has a single color, so glints work best on smooth, finely divided surfaces like this sphere: flat faces, such as those of columns, glint all at once or not at all. Glints can also make mapped colors hard to read, so they’re best kept for showing shape.
Light sources
Direction and anchoring

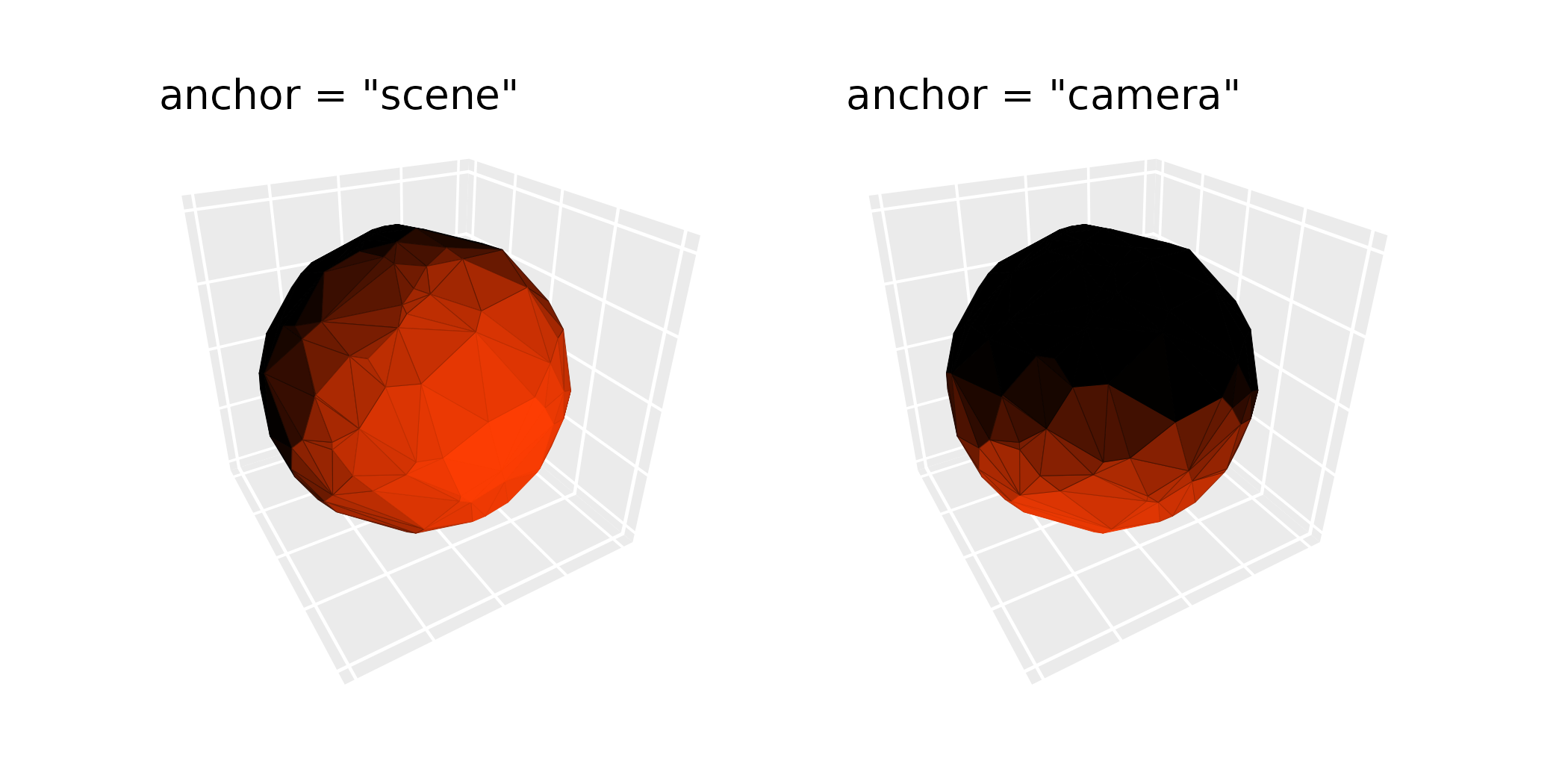

The direction parameter is a length-3 vector giving
where light comes from, and the anchor parameter sets the
frame it’s given in:
-
anchor = "camera"(default): Direction is relative to the viewer, so the visible side of the plot is lit the same way however it’s rotated. x points to the right of the plot, y up the plot, and z toward the viewer:direction = c(1, 0, 0)lights surfaces facing the right side of the plot, anddirection = c(0, 0, 1)lights surfaces facing the viewer. The default light comes from the upper left, tilted 45 degrees toward the viewer, so faces seen head-on keep exactly the color you gave them. -
anchor = "scene": Direction is relative to the data, in the axes of the cube, and turns with the plot as it rotates.direction = c(1, 0, 0)lights surfaces facing the “xmax” face, anddirection = c(0, 0, 1)lights surfaces facing up, whatever the rotation. This suits lights that mean something in the data, such as the sun over terrain.
Here’s a surface from two sides, lit by the default camera light and by a scene light from the xmin side, 60 degrees above the horizon. The camera light lights both views alike, while the scene light leaves the far side of the mountain in shadow:
pm <- ggplot(mountain, aes(x, y, z)) +
geom_surface_3d(fill = "steelblue")
scene <- light(direction = direction(270, 60), anchor = "scene")
(pm + coord_3d() + ggtitle('anchor = "camera" (default)')) +
(pm + coord_3d(yaw = 150) + ggtitle('anchor = "camera", yaw = 150')) +
(pm + coord_3d() + scene + ggtitle('anchor = "scene"')) +
(pm + coord_3d(yaw = 150) + scene + ggtitle('anchor = "scene", yaw = 150')) +
plot_layout(ncol = 2)

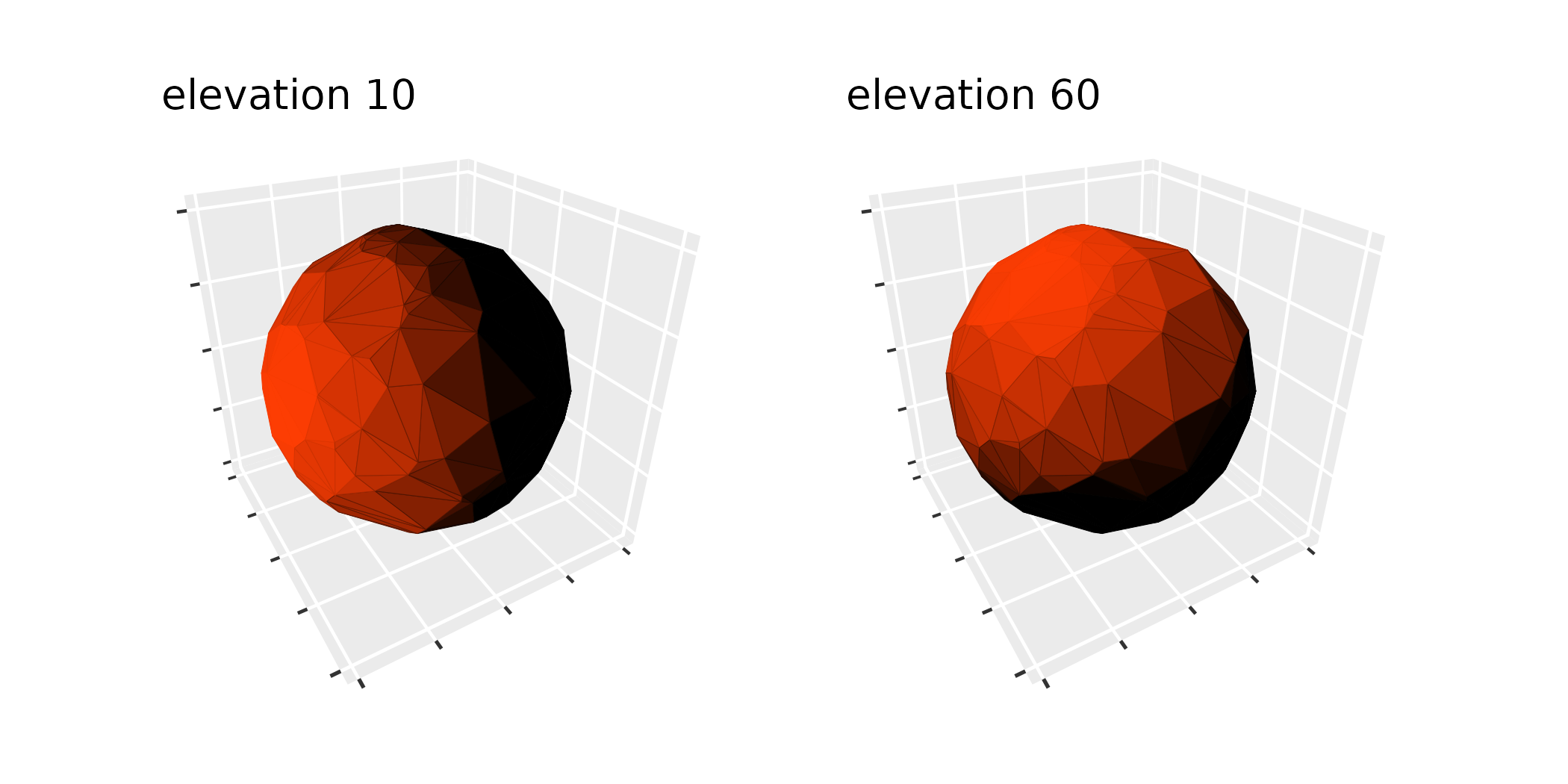

Directions can also be given as angles with direction(),
which takes an azimuth and an elevation. With the camera anchor, the
azimuth is a bearing around the plot, clockwise from straight up (270 is
from the left, and 315 from the upper left), and the elevation is the
angle toward the viewer: 0 is light grazing across the plot, 90 is light
from straight at the viewer, and negative values put the light behind
the plot. With the scene anchor, they’re a compass bearing, clockwise
from the positive y axis, and the angle above the xy plane. Angles are
often easier when you want to swing a light around or tilt it toward the
viewer without changing anything else. The default light is
direction(315, 45); here it is near grazing, and then
nearly head-on:
(p + light("hard", direction = direction(315, 10)) + ggtitle("elevation 10")) +
(p + light("hard", direction = direction(315, 80)) + ggtitle("elevation 80"))
Printing a light shows its direction both ways, which can help in translating between the two:
light(direction = c(-1, 1, 1))
#> Lighting specification:
#> Ramp: smooth (neutral 45 deg)
#> Tone: lightness
#> Strength: shadow 0.8 , highlight 0.6
#> Direction: [ -1, 1, 1 ] (directional lighting)
#> bearing on the plot: 315 deg, toward the viewer: 35.3 deg
#> anchor: camera
#> Lights: fill + colorTo compare light directions side by side, or to move the light around
interactively, see the light_azimuth and
light_elevation arguments of orbit_3d() and
animate_3d(), and the view facets
facet_wrap_views() and facet_grid_views(),
covered in the animation and
multiple views article.

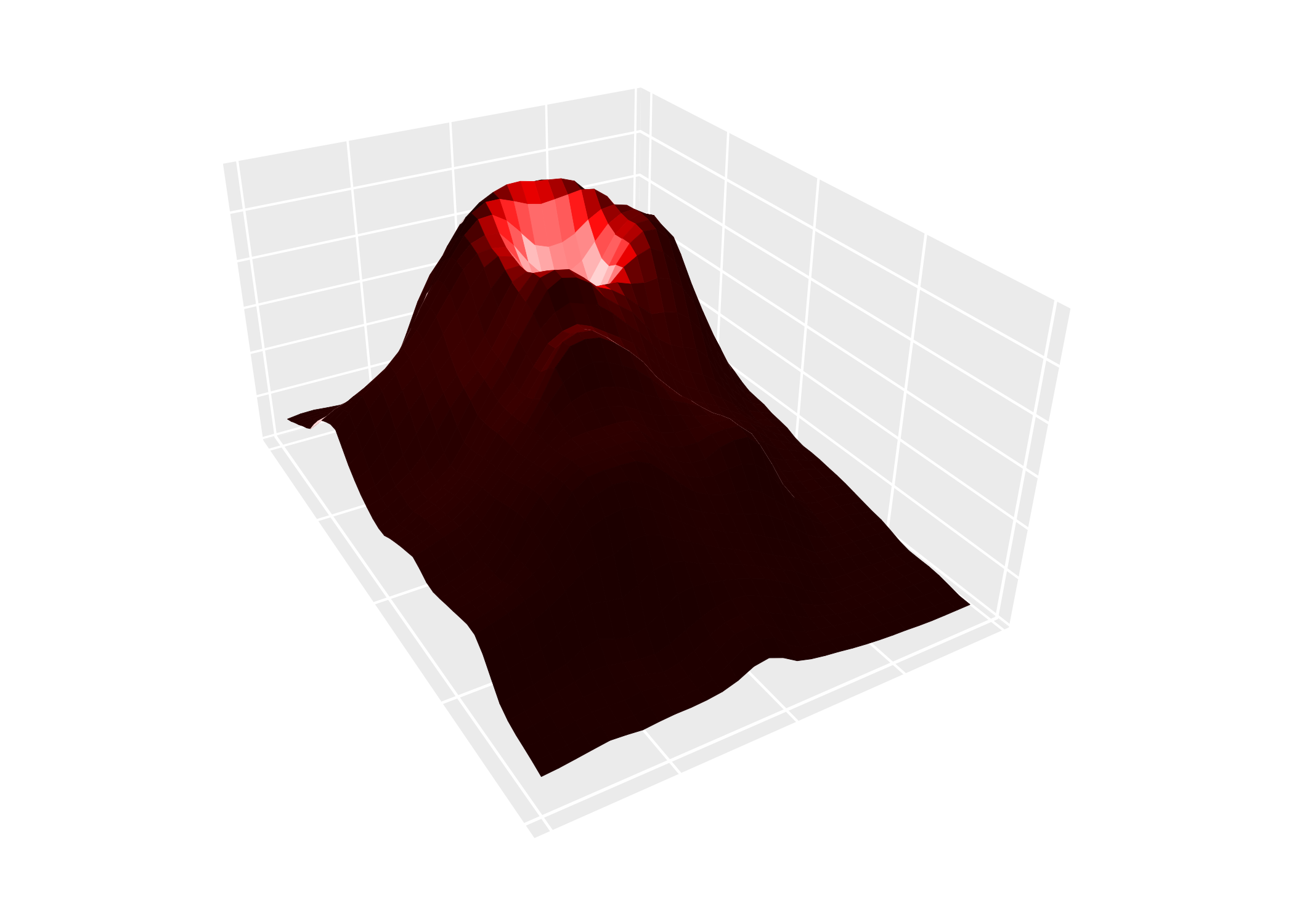

Positional lighting
In addition to directional lighting (parallel rays from a direction),
ggcube also supports positional lighting from a point source. Use
position instead of direction to specify a
light source location in data coordinates. Positional lights are always
placed in the data, whatever their anchor. Setting
distance_falloff = TRUE applies inverse-square intensity
falloff from the light source position.
ggplot(mountain, aes(x, y, z)) +
stat_surface_3d(fill = "red", color = "red") +
coord_3d(
light = light(position = c(.5, .7, 95), distance_falloff = TRUE),
ratio = c(1.5, 2, 1))

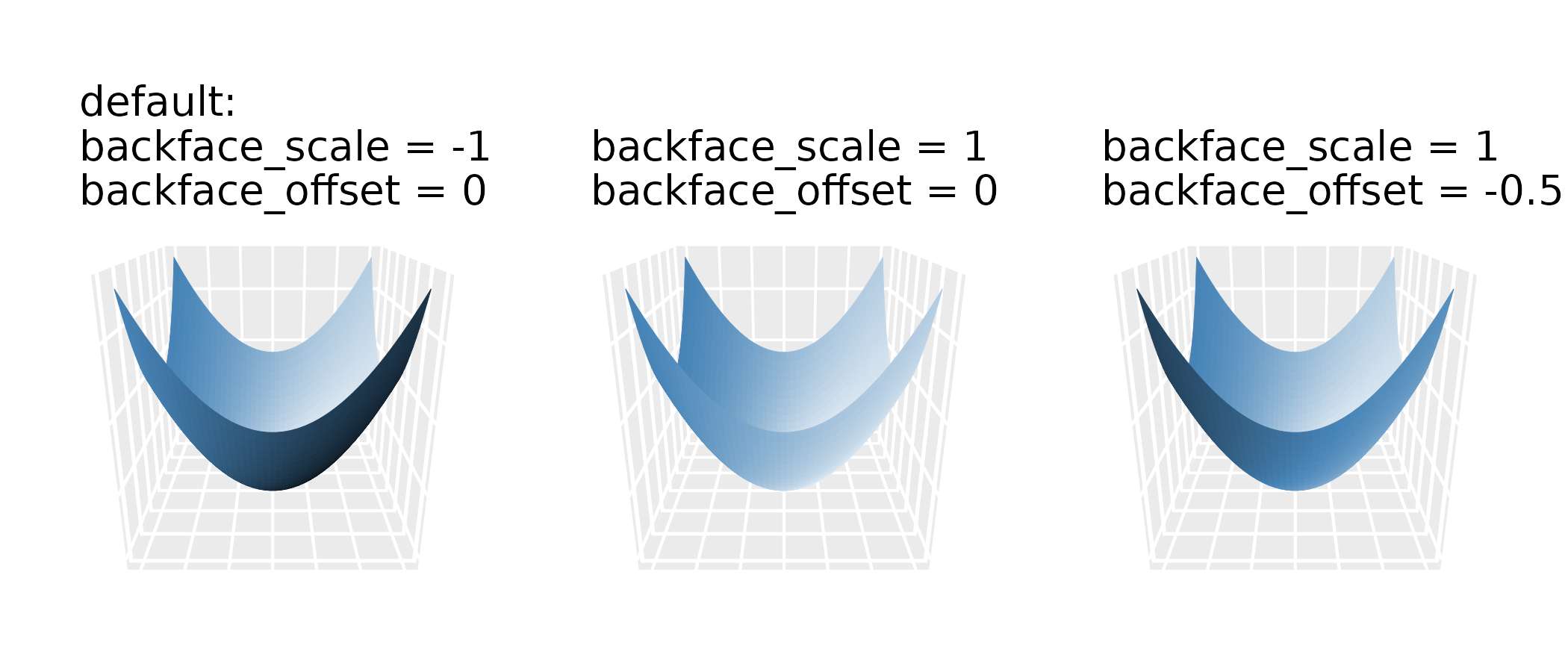

Backface lighting
A backface is the side of a polygon facing the underside of a surface
or the inside of a volume. By default, backfaces receive inverted
lighting relative to frontfaces (backface_scale = -1),
creating strong visual contrast between the two sides. Setting
backface_scale = 1 lights backfaces the same as frontfaces.
Modifying backface_offset to uniformly darkens or brightens
all backfaces.
pb <- ggplot() +
geom_function_3d(fun = function(x, y) x^2 + y^2,
xlim = c(-3, 3), ylim = c(-3, 3),
fill = "steelblue", color = "steelblue") +
coord_3d(pitch = 0, roll = -70, yaw = 0)
(pb +
ggtitle("default:\nbackface_scale = -1\nbackface_offset = 0")) +
(pb + light(backface_scale = 1) +
ggtitle("\nbackface_scale = 1\nbackface_offset = 0")) +
(pb + light(backface_scale = 1, backface_offset = -.5) +
ggtitle("\nbackface_scale = 1\nbackface_offset = -0.5")) +
plot_layout(nrow = 1)
3D guides
When lighting is active, standard color guides don’t reflect the
range of shaded colors visible in the plot. So when lighting applies to
a layer that maps fill or color, ggcube uses
guide_colorbar_3d(), guide_legend_3d(),
guide_colorsteps_3d(), and guide_bins_3d() in
place of the standard guides, showing the shading gradient alongside
each color, with the colors as given in the middle:

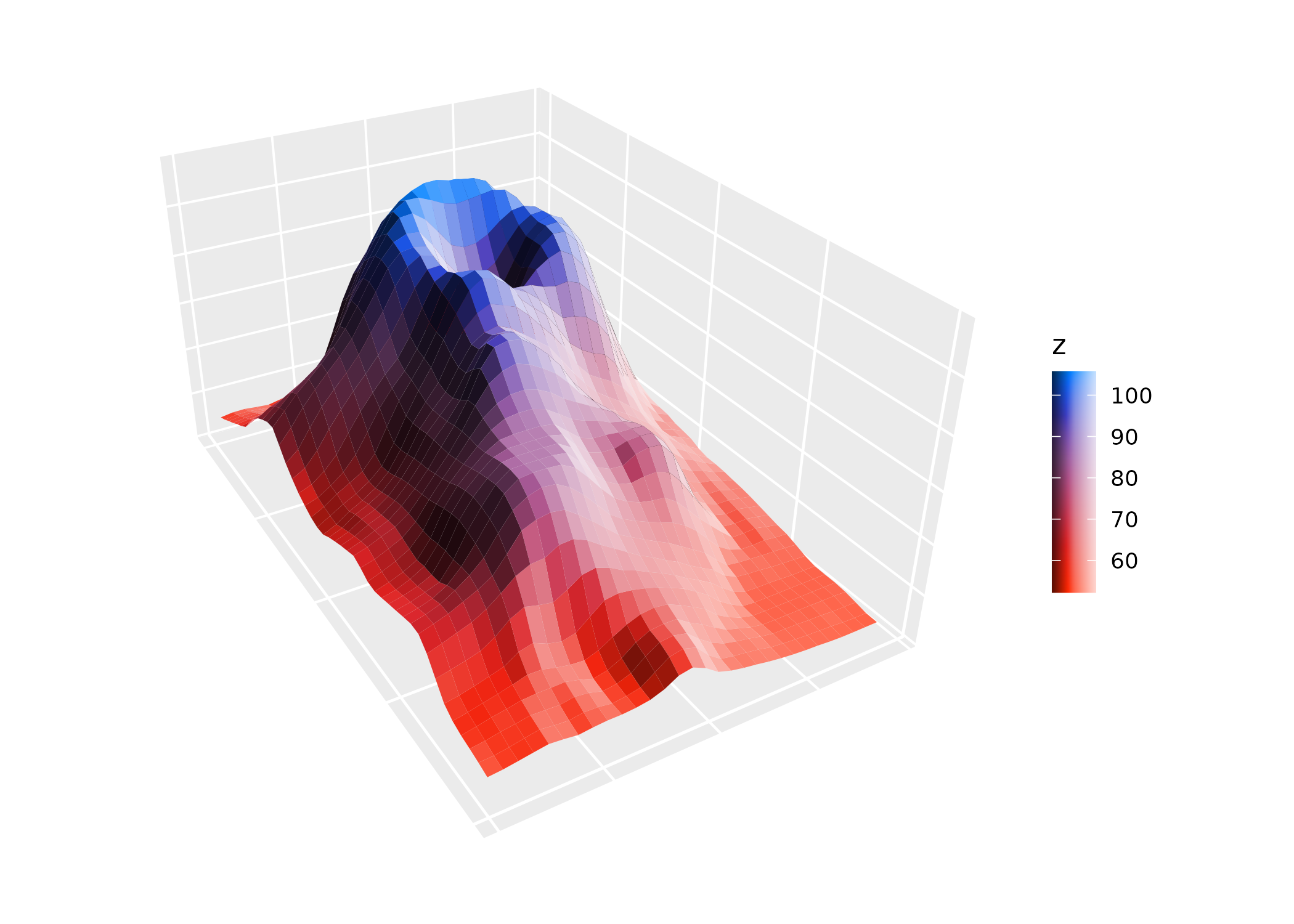

ggplot(mountain, aes(x, y, z, fill = z)) +
stat_surface_3d() +
light(direction = c(1, 0, 0)) +
scale_fill_gradientn(colors = c("tomato", "dodgerblue")) +
coord_3d(ratio = c(2, 3, 1.5))

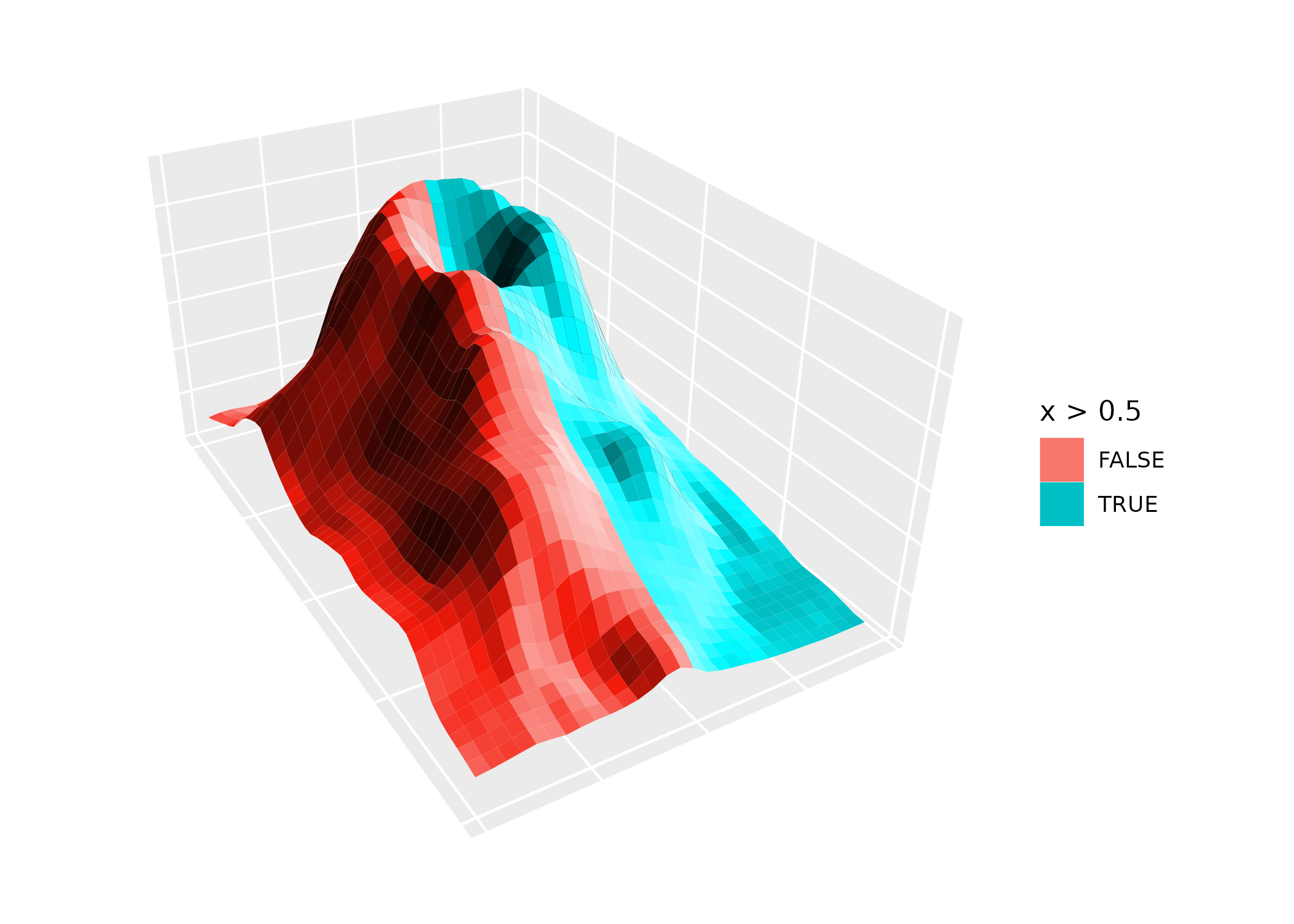

ggplot(mountain, aes(x, y, z, fill = x > .5, group = 1)) +
stat_surface_3d() +
light(direction = c(1, 0, 0)) +
coord_3d(ratio = c(2, 3, 1.5))
ggplot(mountain, aes(x, y, z, fill = z)) +
stat_surface_3d() +
light(direction = c(1, 0, 0)) +
scale_fill_viridis_b() +
coord_3d(ratio = c(2, 3, 1.5))
Call the guides yourself to change their options: all accept
shade_range to control the range of shading shown (a
length-2 vector from -1, full shadow, to 1, full highlight), and
reverse_shade to flip the gradient direction. For an
unshaded guide, ask for a standard one,
e.g. guides(fill = "colourbar").
ggplot(mountain, aes(x, y, z, fill = z)) +
stat_surface_3d() +
light(direction = c(1, 0, 0)) +
guides(fill = guide_colorbar_3d(shade_range = c(-1, 1))) +
scale_fill_gradientn(colors = c("tomato", "dodgerblue")) +
coord_3d(ratio = c(2, 3, 1.5))
Note that when fill and color map to the same variable, ggplot2
creates a shared scale. In this case, set the 3D guide’s options via
guides(fill = guide_colorbar_3d()), not via the color
guide.
