Windsheds

Source: vignettes/articles/windsheds.Rmd
windsheds.Rmd

A watershed is the area that drains to a point on a river. By analogy, a windshed is the area that wind connects to a site. Because wind is directional, every site has two:

  • Its downwind windshed: where wind carries material released at the site, such as its pollen, seeds, or spores.
  • Its upwind windshed: where material arriving at the site comes from.

The two are usually very different. Under prevailing westerlies, a site’s downwind windshed stretches to the east and its upwind windshed to the west, so the places a population can colonize are not the places its immigrants come from.

This article shows how to map windsheds with both of windscape’s connectivity models, how to trace the routes that connect a site to its windshed, and how to summarize windsheds for comparison across sites. It uses model settings such as half_life without explaining them in depth; the connectivity models article covers how the models work and how to choose their settings.

library(windscape)
library(ggplot2)

rose <- windscape_example("wind_rose")
site <- cbind(-105, 40) # north-central Colorado

states <- map_data("state")
borders <- geom_path(data = states, aes(long, lat, group = group),
                     color = "white", linewidth = 0.15, inherit.aes = FALSE)
us <- coord_quickmap(xlim = c(-120, -90), ylim = c(30, 50), expand = FALSE)
facets <- theme(strip.text = element_text(margin = margin(4, 0, 4, 0)))

Least-cost windsheds

A least-cost windshed maps the fastest wind route between a site and every place in the landscape. least_cost() returns the travel time along that route, in hours (for a rose built with trans = 1 from winds in m/s): downwind, from the site to each cell, and upwind, from each cell to the site.

down <- least_cost(rose, site, direction = "downwind")
up <- least_cost(rose, site, direction = "upwind")

d <- rbind(data.frame(as.data.frame(down, xy = TRUE), windshed = "downwind: hours from the site"),
           data.frame(as.data.frame(up, xy = TRUE), windshed = "upwind: hours to the site"))

ggplot(d, aes(x, y)) +
      geom_raster(aes(fill = pmax(hours, 10))) + # floor at 10 hours for the log scale
      borders +
      geom_contour(aes(z = hours), breaks = c(100, 300, 1000), color = "black", linewidth = 0.2) +
      annotate("point", site[1], site[2], size = 1.5) +
      facet_wrap(~windshed) +
      scale_fill_viridis_c(name = "hours", trans = "log10", direction = -1) +
      us + theme_void() + facets

Travel times are a measure of accessibility, not a prediction of when particles arrive: each step’s cost is the time to cross it at the long-run average wind speed in that direction, including the time the wind spends blowing other ways. Small values mean strong connectivity. rate = TRUE returns the inverse, a flow rate, for analyses where large values should mean strong connectivity, as they do for random walks.

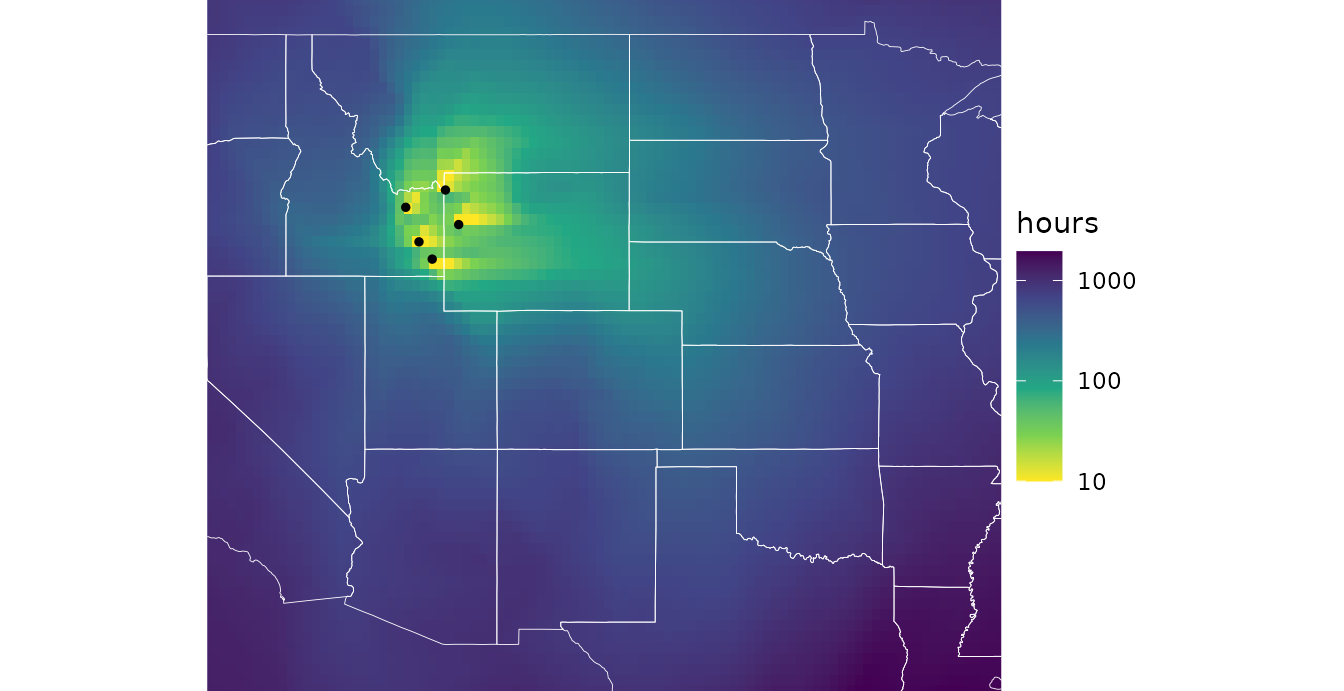

Given several sites, least_cost() maps the travel time to or from the nearest one, for example the windshed of a whole population or species range, represented by a set of occurrence points:

range_pts <- cbind(c(-112, -111, -110.5, -112.5, -111.5), c(43, 44.5, 43.5, 44, 42.5))
down_range <- least_cost(rose, range_pts, direction = "downwind")

ggplot(as.data.frame(down_range, xy = TRUE), aes(x, y)) +
      geom_raster(aes(fill = pmax(hours, 10))) +
      borders +
      annotate("point", range_pts[, 1], range_pts[, 2], size = 1) +
      scale_fill_viridis_c(name = "hours", trans = "log10", direction = -1) +
      us + theme_void()

Least-cost paths

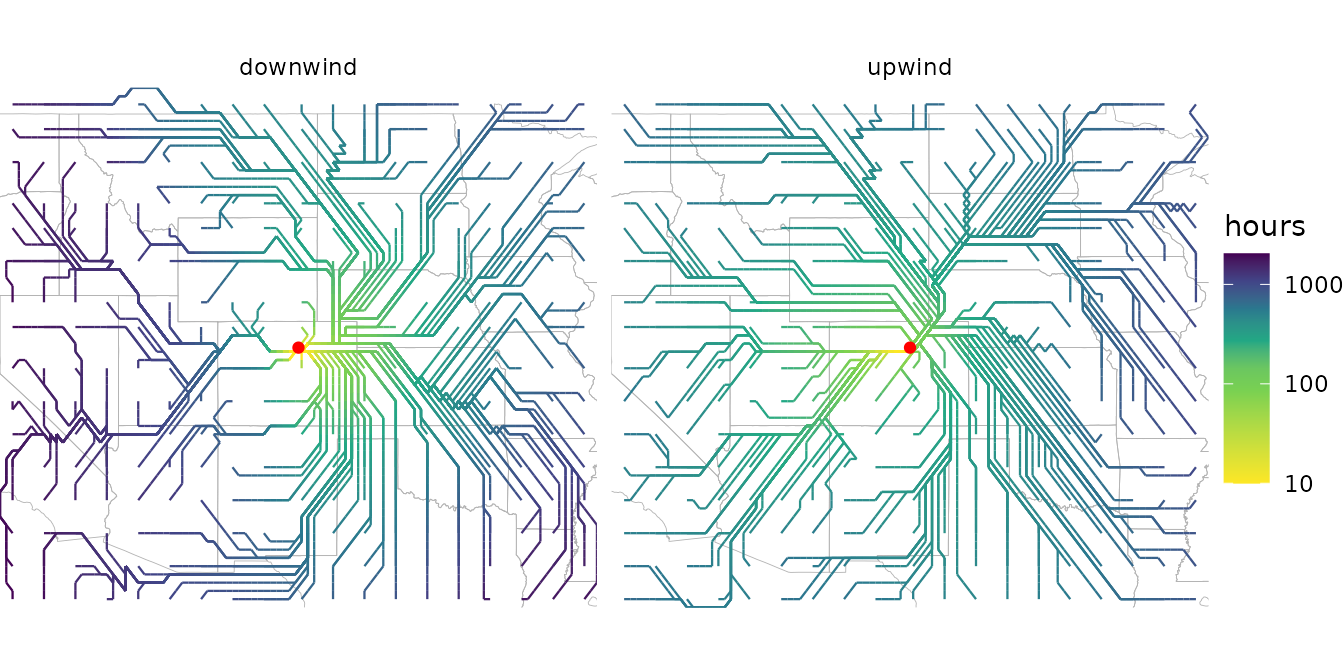

least_cost_paths() returns the routes behind those travel times, as path data that geom_wind_path() draws. By default it traces paths between the site and a regular grid of about n points across the domain, which shows the network of fastest routes:

paths <- rbind(
      data.frame(least_cost_paths(rose, site, n = 300, direction = "downwind"), windshed = "downwind"),
      data.frame(least_cost_paths(rose, site, n = 300, direction = "upwind"), windshed = "upwind"))
head(paths)
#>   trail site to step     hours         x        y windshed
#> 1     1    1  1    0   0.00000 -105.1579 39.84127 downwind
#> 2     1    1  1    1  23.30238 -105.4737 39.84127 downwind
#> 3     1    1  1    2  52.75803 -105.7895 39.84127 downwind
#> 4     1    1  1    3 113.33490 -106.1053 39.84127 downwind
#> 5     1    1  1    4 254.08530 -106.4211 39.84127 downwind
#> 6     1    1  1    5 324.87818 -106.7368 40.15873 downwind

# travel time between each vertex and the site: elapsed time on downwind paths, and time
# remaining on upwind paths
paths$from_site <- ifelse(paths$windshed == "downwind", paths$hours,
                          ave(paths$hours, paths$windshed, paths$to, FUN = max) - paths$hours)

ggplot(paths, aes(x, y)) +
      geom_path(data = states, aes(long, lat, group = group), color = "gray70",
                linewidth = 0.15, inherit.aes = FALSE) +
      geom_wind_path(aes(color = pmax(from_site, 10)), linewidth = 0.4, arrow = NULL) +
      annotate("point", site[1], site[2], color = "red", size = 1.5) +
      facet_wrap(~windshed) +
      scale_color_viridis_c(name = "hours", trans = "log10", direction = -1, values = c(0, .5, .7, .85, 1)) +
      us + theme_void() + facets

Each row is a vertex of a path, ordered in the direction of travel: downwind paths start at the site, and upwind paths end there. hours accumulates along each path, and its final value is the travel time between the pair. Paths move between neighboring cell centers, in eight directions, so they are built from horizontal, vertical, and diagonal segments.

The paths from one site form a tree: once two paths meet, they share the rest of their route to or from the site. Heavily shared branches are the main corridors of wind transport. (Where two diagonal steps cross between cell centers, two branches can appear to cross without meeting.)

Paths can also run to or from chosen points, with to. pairs = "nearest" traces one path for each site, to or from the point in to with the shortest travel time, and pairs = "matched" pairs sites and to row by row; see ?least_cost_paths.

Random walk windsheds

A random walk windshed instead follows particles diffusing through the wind rose along all routes, in proportion to how much wind flows along each, and depositing as they go. In stream mode, random_walk() returns the long-run result of continuous release from the site. Its deposition layer is the downwind windshed: the probability density (per km^2) that a particle released at the site lands in each cell.

down <- random_walk(rose, site, mode = "stream", direction = "downwind", half_life = 48)
names(down)
#> [1] "residence"  "deposition"

Upwind walks with a finite half-life have two layers that describe the upwind windshed, and they answer different questions:

  • deposition: how likely a particle released in each cell is to be deposited at the site (by default, as a density per km^2 of the site’s cell). This asks, “if particles were released here, would they reach the site?”
  • origin: the share of the particles deposited at the site that come from each cell (by default, per km^2). This asks, “of the particles reaching the site, what share came from here?”

origin is deposition weighted by how much each cell releases, and normalized. By default, every cell releases the same amount per km^2, so the two maps have the same shape. They differ when release varies, given as a raster via the source argument, such as the abundance of a species that produces the particles: then origin shows where the site’s immigrants actually come from.

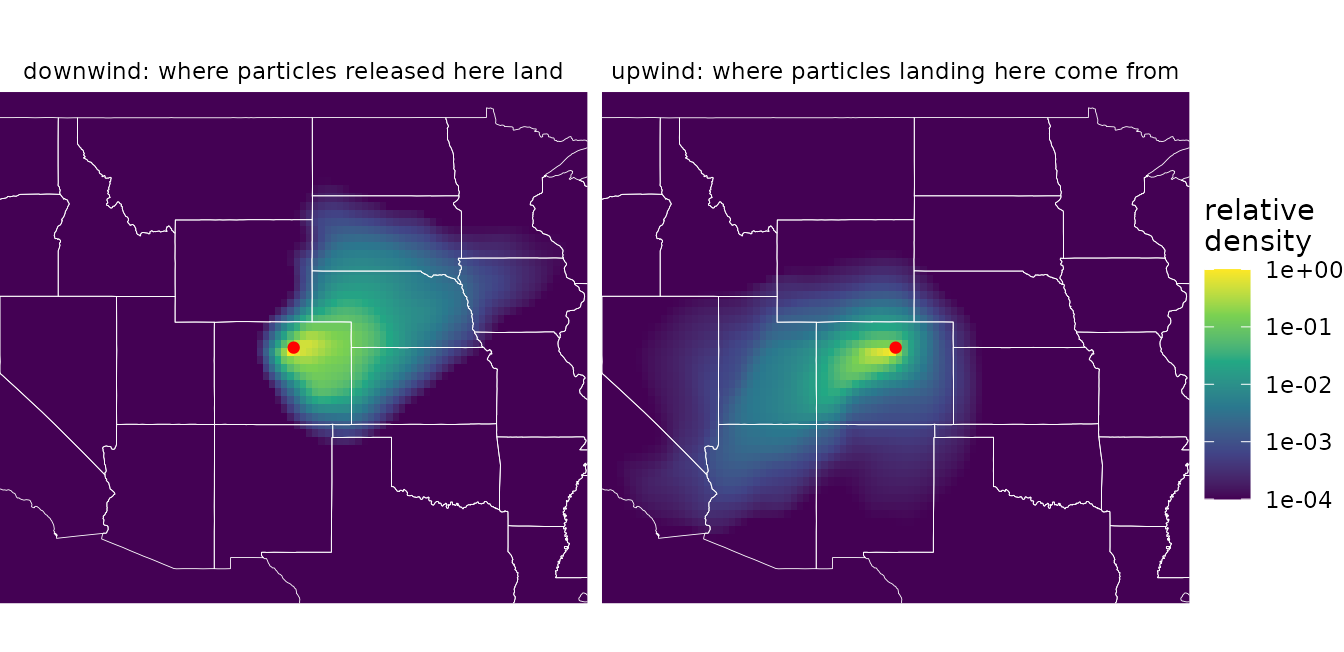

up <- random_walk(rose, site, mode = "stream", direction = "upwind", half_life = 48)

d <- rbind(data.frame(fortify(down)[c("x", "y")], value = fortify(down)$deposition,
                      windshed = "downwind: where particles released here land"),
           data.frame(fortify(up)[c("x", "y")], value = fortify(up)$origin,
                      windshed = "upwind: where particles landing here come from"))
d$value <- d$value / ave(d$value, d$windshed, FUN = max) # relative to each windshed's peak

ggplot(d, aes(x, y)) +
      geom_raster(aes(fill = value)) +
      borders +
      annotate("point", site[1], site[2], color = "red", size = 1.5) +
      facet_wrap(~windshed) +
      scale_fill_viridis_c(name = "relative\ndensity", trans = "log10",
                           limits = c(1e-4, 1), oob = scales::squish) +
      us + theme_void() + facets

These windsheds point the same ways as the least-cost ones, but they measure something different. A least-cost map gives every place a travel time, however remote. A random walk map gives the share of the site’s material that actually gets there, which falls off steeply with distance as particles are deposited along the way (note the log scale). The half-life sets the windshed’s reach: short half-lives keep it close to the site, and long ones extend it across the landscape.

Like least_cost(), random_walk() accepts several sites, releasing one unit from each grid cell that contains a site. For uneven release, such as from a population whose abundance varies across its range, give init as a raster of release amounts on the rose’s grid:

abundance <- rose[[1]] * 0 # a raster on the rose's grid
abundance[terra::cellFromXY(abundance, range_pts)] <- c(5, 1, 2, 1, 3)
range_windshed <- random_walk(rose, abundance, mode = "stream", half_life = 48)

Random walk paths

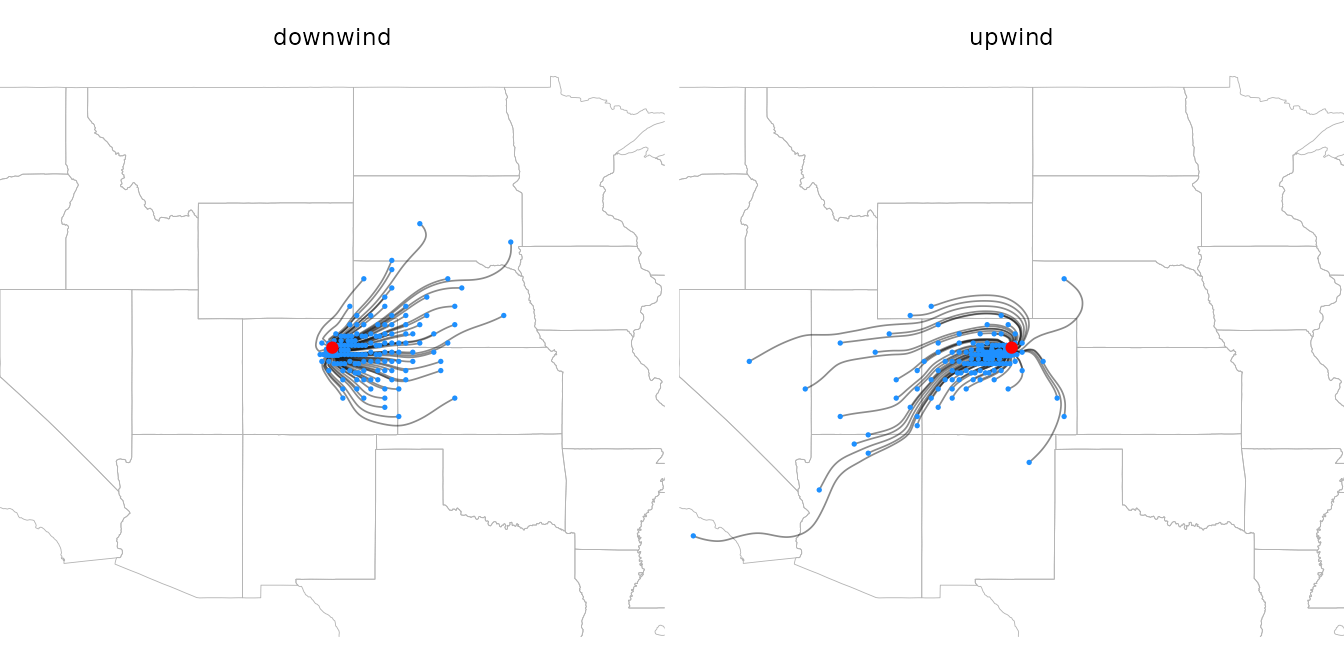

random_walk_paths() is the random walk counterpart to least_cost_paths(), and returns path data in a similar layout (trail, path, step, x, and y), for drawing with geom_wind_path(). Despite its name, it involves no randomness. It doesn’t simulate the zigzagging paths of individual particles. It traces streamlines of the walk’s net flux of material: the average routes along which material moves. Running it twice gives identical results.

Without to, random_walk_paths() places the ends of n paths in proportion to where material is deposited (or leaves the domain), so each path carries an equal share of the released material. The density of paths shows where material goes, and a dot at the end of each path shows where its share lands:

rw_paths <- rbind(
      data.frame(random_walk_paths(rose, site, n = 150, half_life = 48), windshed = "downwind"),
      data.frame(random_walk_paths(rose, site, n = 150, half_life = 48, direction = "upwind"),
                 windshed = "upwind"))
# where each path's material lands (downwind) or originates (upwind)
id <- paste(rw_paths$windshed, rw_paths$path)
ends <- rw_paths[ifelse(rw_paths$windshed == "downwind", !duplicated(id, fromLast = TRUE), !duplicated(id)), ]

ggplot(rw_paths, aes(x, y)) +
      geom_path(data = states, aes(long, lat, group = group), color = "gray70",
                linewidth = 0.15, inherit.aes = FALSE) +
      geom_wind_path(alpha = 0.5, linewidth = 0.3, arrow = NULL) +
      geom_point(data = ends, size = 0.3, color = "dodgerblue") +
      annotate("point", site[1], site[2], color = "red", size = 1.5) +
      facet_wrap(~windshed) +
      us + theme_void() + facets

Upwind paths start where material originates, placed in proportion to origin, and end at the site. Because most material is deposited close to where it is released, most paths are short; a larger n resolves more long-distance routes.

Comparing the two kinds of paths

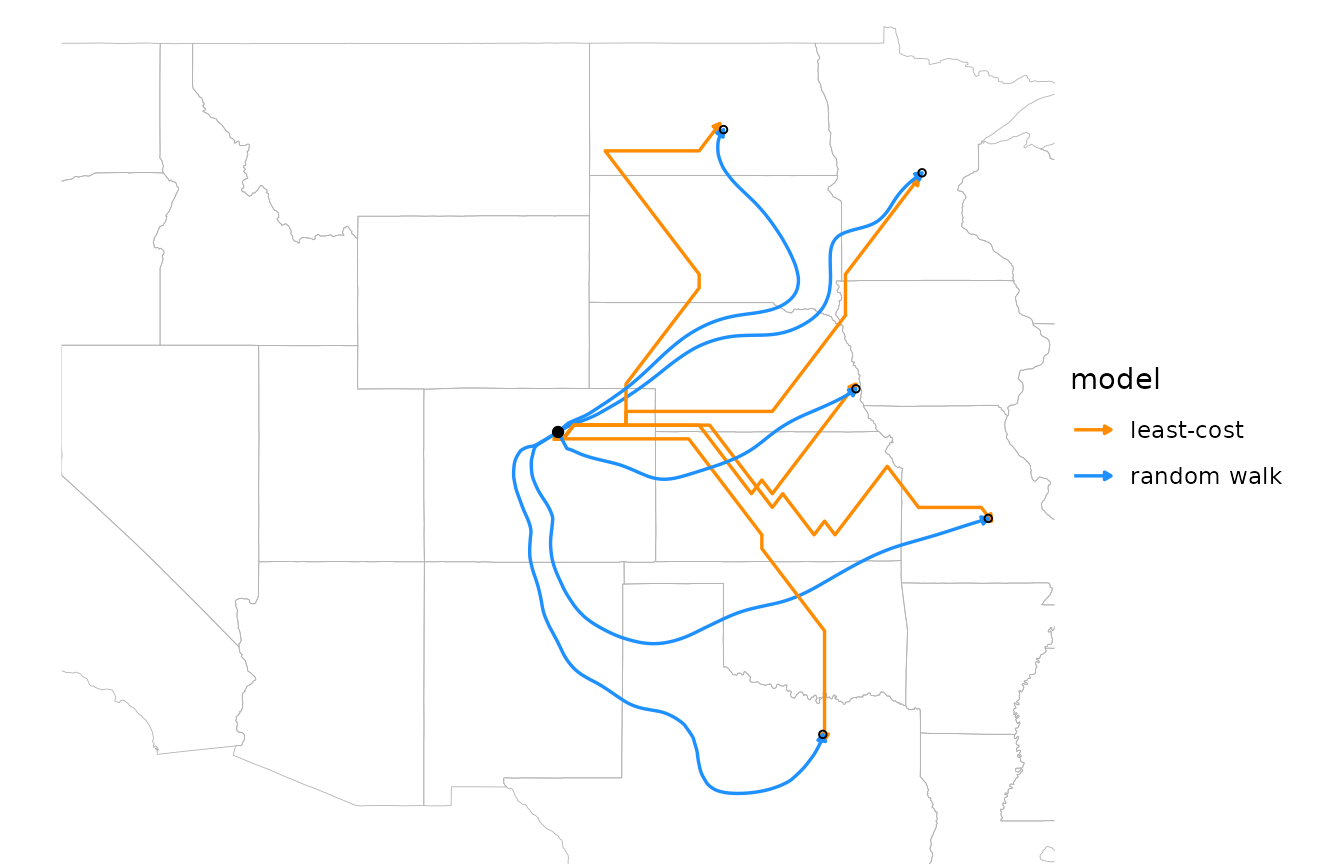

The two models answer different questions about the route between two places. A least-cost path is the single fastest route. A random walk path is the average route of the material that actually makes the trip, which spreads across all routes. Given the same destinations with to, the difference is easy to see:

to <- cbind(c(-94, -92, -97, -100, -96), c(46, 38, 33, 47, 41))
both <- rbind(
      data.frame(least_cost_paths(rose, site, to)[c("trail", "step", "x", "y")], model = "least-cost"),
      data.frame(random_walk_paths(rose, site, to = to, half_life = 48)[c("trail", "step", "x", "y")],
                 model = "random walk"))

ggplot(both, aes(x, y)) +
      geom_path(data = states, aes(long, lat, group = group), color = "gray70",
                linewidth = 0.15, inherit.aes = FALSE) +
      geom_wind_path(aes(color = model, group = interaction(model, trail)), linewidth = 0.6) +
      annotate("point", site[1], site[2], size = 1.5) +
      annotate("point", to[, 1], to[, 2], size = 1, shape = 1) +
      scale_color_manual(values = c("darkorange", "dodgerblue")) +
      us + theme_void()

Least-cost paths are built from grid steps and can zigzag where the fastest route lies between two neighbor directions. Random walk paths are smooth, and can depart widely from the fastest route: the material that reaches the southernmost point travels mostly by way of New Mexico and Texas, swinging around with the winds there, rather than taking the most direct fast route.

Paths to chosen points no longer carry equal shares of material, so with to, the density of random walk paths has no meaning. Points the material doesn’t reach can’t be traced and are dropped with a warning.

Flux

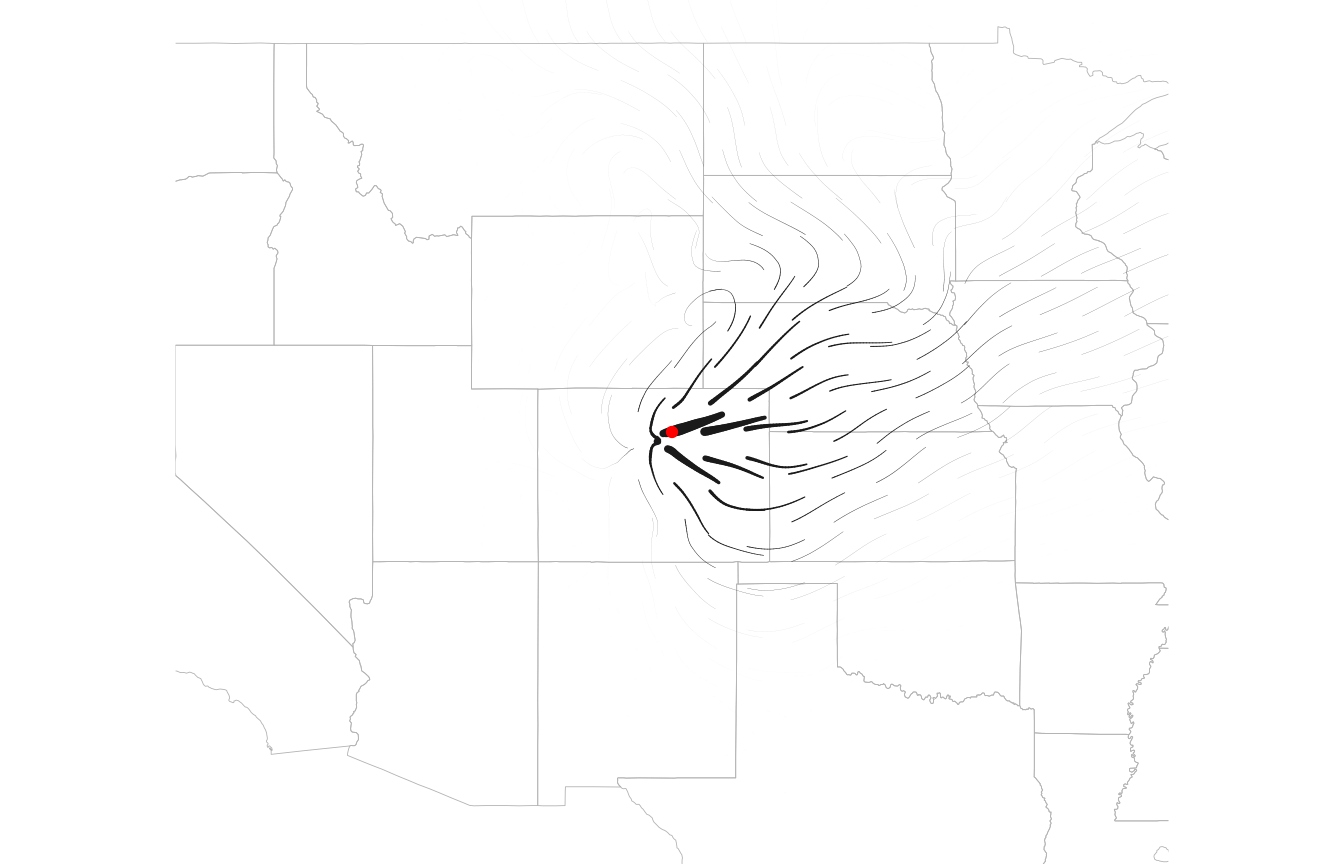

Paths sample the flow of material at a few places. To map it everywhere, random_walk() returns the net flux with flux = TRUE: the direction and rate at which material moves through each cell. It’s a wind_field, so the wind field layers draw it. Flux spans orders of magnitude, from near the site to the windshed’s fringes, so it’s clearer to show its magnitude as line width (here on a square-root scale) and draw all trails the same length. Arrowheads don’t shrink with line width, so they’re left off here; material flows outward from the site.

down <- random_walk(rose, site, mode = "stream", half_life = 48, flux = TRUE)

ggplot(down$flux, aes(x, y)) +
      geom_path(data = states, aes(long, lat, group = group), color = "gray70",
                linewidth = 0.15, inherit.aes = FALSE) +
      geom_wind_trail(aes(linewidth = after_stat(speed)), fixed_length = TRUE, res = 25,
                      arrow = NULL, lineend = "round") +
      annotate("point", site[1], site[2], color = "red", size = 1.5) +
      scale_linewidth(trans = "sqrt", range = c(0, 2), guide = "none") +
      us + theme_void()

Flux shows the transport that produces a windshed, which its shape alone doesn’t: across the flanks of a plume, for example, material moves mostly downwind rather than sideways toward lower density. For an upwind walk (which requires a finite half_life), flux is the transport of the material that ends up at the site, showing the routes by which it arrives.

Comparing windsheds across sites

To compare windsheds among many sites, ws_summarize() reduces a windshed to summary statistics, including the distance and bearing from the site to its centroid, and the windshed’s mean bearing and spread of bearings. It expects large values to mean strong connectivity, so use rate = TRUE for least-cost windsheds:

ws_summarize(least_cost(rose, site, rate = TRUE), site)[c("centroid_distance", "centroid_bearing")]
#> centroid_distance  centroid_bearing
#>         152.48696          82.39936
ws_summarize(down$deposition, site)[c("centroid_distance", "centroid_bearing")]
#> centroid_distance  centroid_bearing
#>         167.76064          86.73836

Both windsheds center east of the site. See ?ws_summarize for all the statistics.

Plotting tips

The maps above convert windsheds to data frames: as.data.frame(x, xy = TRUE) for least-cost rasters, and fortify() for random walk results. The geom_spatraster() layer from the tidyterra package plots any SpatRaster directly, including a single windshed layer:

ggplot() +
      tidyterra::geom_spatraster(data = least_cost(rose, site)) +
      scale_fill_viridis_c(trans = "log10")

Windsheds span orders of magnitude, so log color scales usually work best. Least-cost travel times are zero at the site and random walk densities approach zero far from it, so floor or squish values before log-transforming, as in the maps above.
