Least-cost paths

Source: R/least_cost.R
least_cost_paths.Rd

Traces the least-cost (fastest) wind paths between sites, as sequences of grid cell centers. The result has the same structure as wind_trails() output, so it can be drawn with geom_wind_path(). Paths run between sites and the points in to: downwind, from the sites to the points, or upwind, from the points to the sites. Without to, the points are a regular grid across the domain, so the paths show the network of fastest routes downwind (or upwind) of the sites.

Usage

least_cost_paths(
  rose,
  sites,
  to = NULL,
  direction = "downwind",
  pairs = c("all", "nearest", "matched"),
  n = 50,
  ...
)

Arguments

rose

A wind_rose(), or a wind_graph built in advance whose direction matches direction; see pairwise_least_cost().

sites, to

Sites, and the points to trace paths to (downwind) or from (upwind): two-column matrices (or data frames) of longitude and latitude, or SpatVectors of points. If to is NULL (the default), the points are about n points on a regular grid across the domain, and points that can't be reached are dropped silently.

direction

Either "downwind" (the default), for paths from sites to to, or "upwind", for paths from to to sites. With explicit to points, the two give the same paths for swapped arguments; direction matters most with the grid of points and with pairs = "nearest".

pairs

Which pairs to trace: "all" (the default) traces a path between every site and every point in to; "nearest" traces one path for each site, to or from the point in to with the lowest travel time; "matched" pairs sites and to row by row, which requires them to have the same number of rows; it isn't available without to.

n

Approximate number of grid points, when to is NULL.

...

Further arguments passed to wind_graph(), such as wrap. Not allowed when rose is already a wind_graph.

Value

A data frame with one row per path vertex, ordered along each path in the direction of travel (from the site to the point for downwind paths, and from the point to the site for upwind paths):

  • trail: line id, for drawing. Each path is one trail, unless it crosses the east-west seam of a wrapped global grid (see wrap in wind_graph()), where a new trail starts so that lines don't cross the map.

  • site, to: row numbers of the path's site in sites and point in to, which together identify the path.

  • step: vertex number along the path, starting at 0 at its upwind end.

  • hours: cumulative travel time along the path, in hours (if trans = 1 in wind_rose() and wind speeds are in m/s). Its final value on each path equals the pair's travel time from pairwise_least_cost() (with snap = TRUE).

  • x, y: longitude and latitude of the grid cell center.

Pairs with no path (e.g. because wind never blows from one toward the other), and sites and points outside the grid, are omitted with a warning. Pairs whose site and point fall in the same grid cell are omitted, since their path has no length.

Details

Paths are computed with gdistance::shortestPath(). Because wind is directional, the fastest path from A to B generally differs from the fastest path from B to A.

Paths move between neighboring grid cells, in eight directions, so they appear as segments at 45-degree angles, including occasional staircase patterns where the optimal route lies between two neighbor directions. This reflects the model's structure rather than the plot. Paths from one site form a tree: once two paths meet, they share the rest of their route back to the site, so shared segments show the main transport corridors. Because diagonal steps between cell centers can cross without passing through a common cell, two branches of the tree occasionally appear to cross.

Examples

rose <- windscape_example("wind_rose")
site <- cbind(-105, 40)
destinations <- cbind(c(-95, -115, -100, -110), c(45, 35, 32, 48))
paths <- least_cost_paths(rose, site, destinations)
head(paths)
#>   trail site to step    hours         x        y
#> 1     1    1  1    0  0.00000 -105.1579 39.84127
#> 2     1    1  1    1  6.39227 -104.8421 39.84127
#> 3     1    1  1    2 27.63580 -104.5263 40.15873
#> 4     1    1  1    3 35.55941 -104.2105 40.15873
#> 5     1    1  1    4 44.14945 -103.8947 40.15873
#> 6     1    1  1    5 53.24461 -103.5789 40.15873

library(ggplot2)

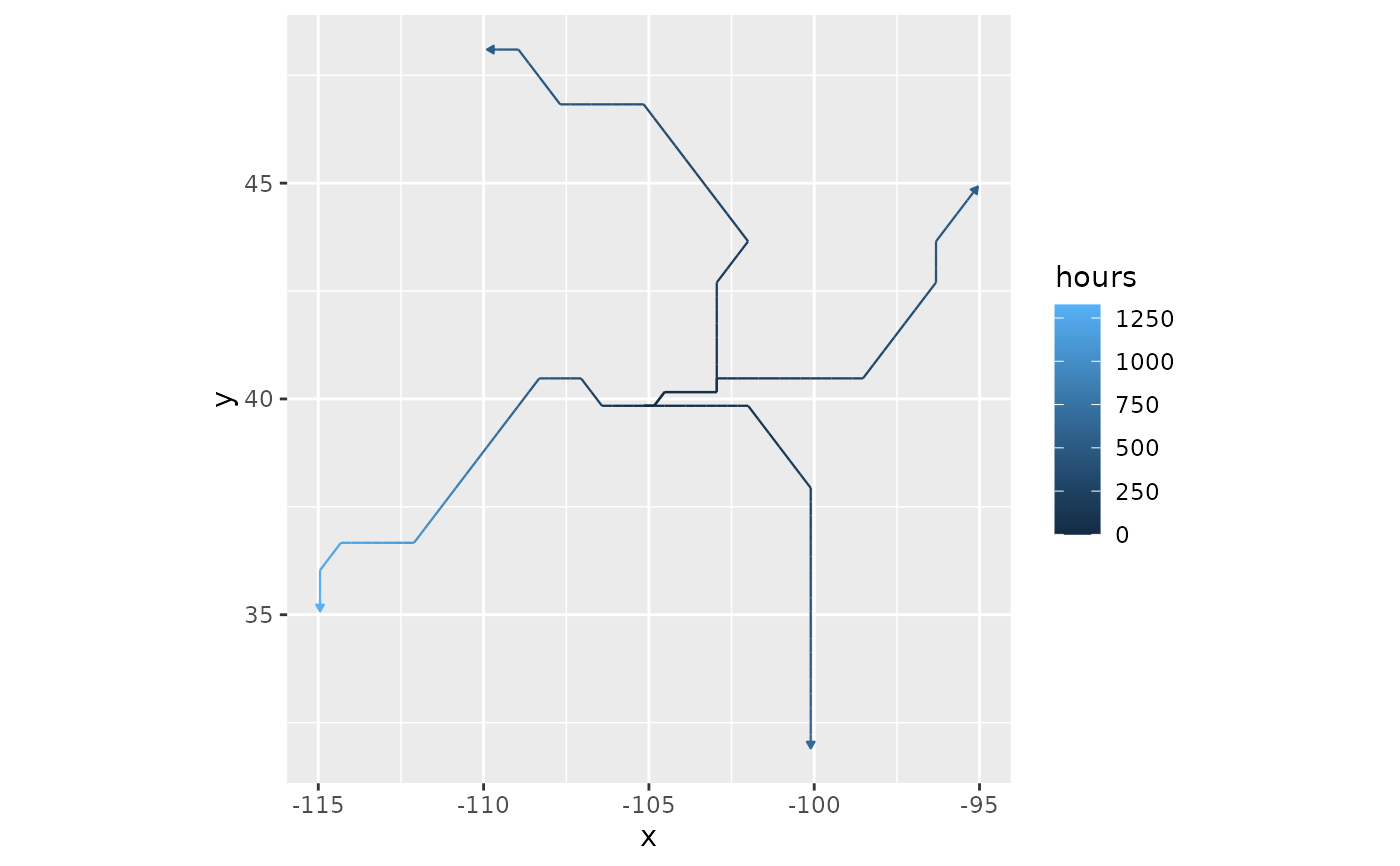

ggplot(paths, aes(x, y)) +
  geom_wind_path(aes(color = hours)) +
  coord_quickmap()


# the network of fastest routes from the site, and to it
down <- least_cost_paths(rose, site, n = 200)
up <- least_cost_paths(rose, site, n = 200, direction = "upwind")

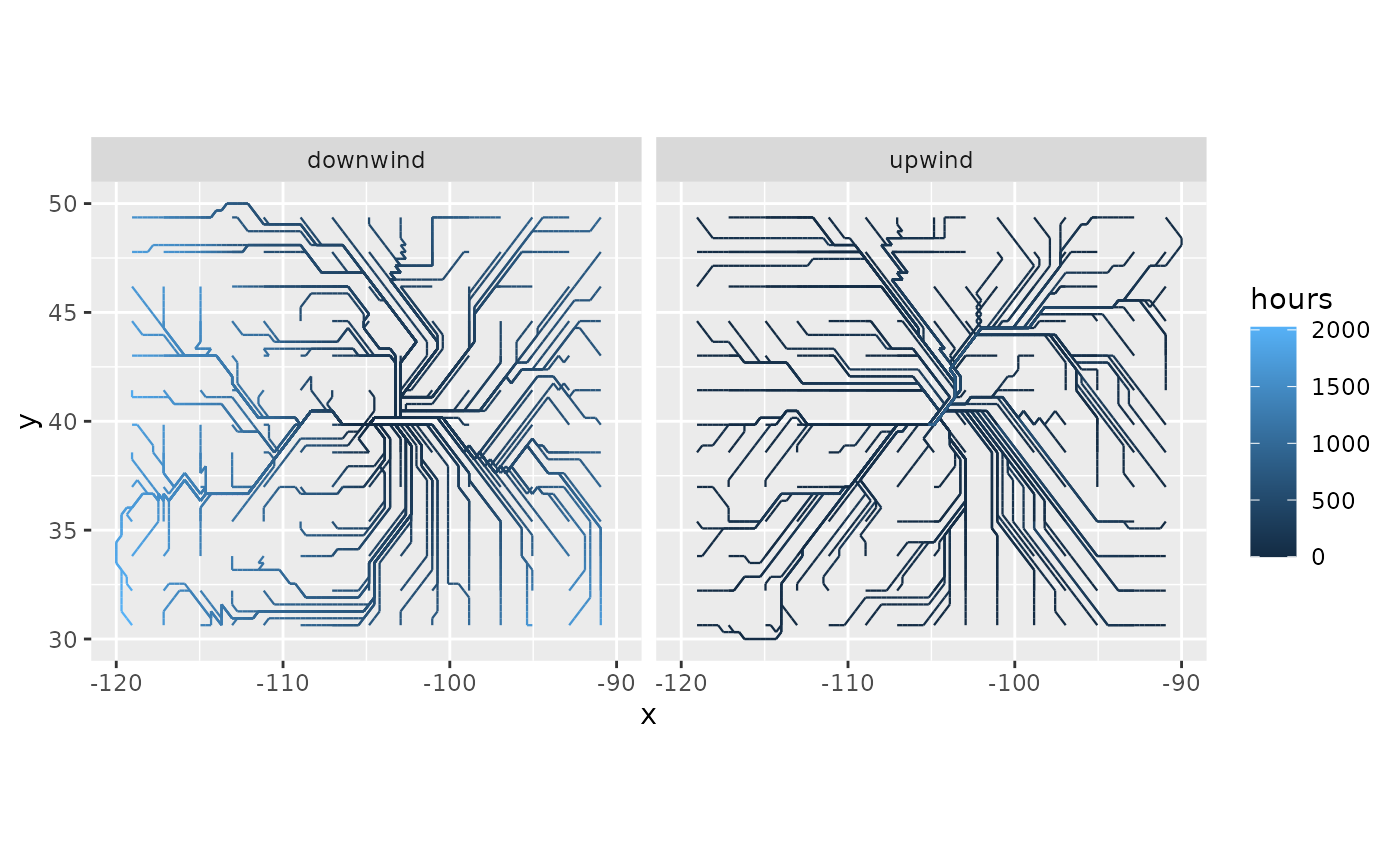

ggplot(rbind(cbind(down, direction = "downwind"), cbind(up, direction = "upwind")),
       aes(x, y)) +
  geom_wind_path(aes(color = hours), arrow = NULL) +
  facet_wrap(~direction) +
  coord_quickmap()
