Wind trails and streamlines — geom_wind

Draw trails that follow the airflow through a wind field, each with an arrowhead at its downwind end. Trails are computed from the field with wind_trails(), seeded on a regular grid (or at points you supply) and traced upwind and downwind; trails traced through a single wind field are streamlines. geom_wind_trail() and stat_wind_trail() make the same layer, differing only in which argument, stat or geom, can be changed. To draw trails you already have, such as wind_trails() or least_cost_paths() output, use geom_wind_path().

Usage

geom_wind_trail(
  mapping = NULL,
  data = NULL,
  stat = StatWindTrail,
  position = "identity",
  ...,
  seeds = NULL,
  res = 20,
  fixed_length = FALSE,
  length = 1.5,
  hours = NULL,
  direction = c("both", "downwind", "upwind"),
  steps = 20,
  wrap = c("neither", "horizontal", "vertical", "both"),
  arrow = grid::arrow(length = grid::unit(0.1, "cm"), type = "closed"),
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

stat_wind_trail(
  mapping = NULL,
  data = NULL,
  geom = GeomWindTrail,
  position = "identity",
  ...,
  seeds = NULL,
  res = 20,
  fixed_length = FALSE,
  length = 1.5,
  hours = NULL,
  direction = c("both", "downwind", "upwind"),
  steps = 20,
  wrap = c("neither", "horizontal", "vertical", "both"),
  arrow = grid::arrow(length = grid::unit(0.1, "cm"), type = "closed"),
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping: Aesthetic mappings created by ggplot2::aes(). x and y (coordinates, in degrees longitude and latitude) must be mapped, usually in the plot's main call. The wind components u and v are mapped automatically to columns of the same names, as produced by fortify() on a wind_field (see fortify.windscape).
data: A wind_field, which is converted with fortify(), or a data frame like its fortify() output. Default is to inherit the plot's data. The data must have one wind vector per grid cell in each panel and group, so to plot a wind_series, select a time step with subset_series() or facet by time.
stat, geom: Use to override the default pairing of stat and geom.
position: Position adjustment; see ggplot2::layer().
...: Other arguments passed to ggplot2::layer(), such as fixed aesthetics like color = "white" or linewidth = 0.8.
seeds: Starting points for trails. NULL (the default) seeds one trail at the center of each block of grid cells (see res). Alternatively, a two-column matrix of longitude and latitude, e.g. to trace trails from study sites; the same seeds are used in every panel.
res: Approximate number of seeds along the longer side of the data's extent, when seeds = NULL. Seeds are placed at the centers of blocks of grid cells that are approximately square in km. Also sets the spacing used by length. Default 20.
fixed_length: Logical: give all trails the same length, so they show only direction (streamlines)? Default FALSE: trails span the same transport time, so their length is proportional to wind speed, as for geom_wind_arrow(). In fields with very uneven speeds, TRUE shows flow structure more evenly, since trails in calm areas don't shrink.
length: Length of each trail, as a multiple of the spacing between seeds set by res. With fixed_length = FALSE, this is the length of a trail at the 90th percentile of wind speed, unless hours is given. Default 1.5.
hours: With fixed_length = FALSE, transport time in hours spanned by each trail, in place of length, so that trails show actual transport distance (assuming wind speeds in m/s). Default NULL.
direction: Trace trails "both" ways from each seed (the default), only "downwind", or only "upwind".
steps: Number of integration steps per trail; more gives smoother trails. Default 20.
wrap: Wrap trails across the field's edges; see wind_trails(). Default "neither".
arrow: Arrowhead drawn at the downwind end of each trail, created by grid::arrow(), or NULL for none.
na.rm, show.legend, inherit.aes: See ggplot2::layer().

Value

A ggplot2 layer.

Details

Trails are traced with wind_trails(), using bilinear interpolation of the wind field, and stop where they leave the field (unless wrapped), so trails seeded near the edges can be shorter; extend the field beyond the area of interest to avoid this. They are computed in longitude/latitude coordinates with correct directions and lengths in km; use ggplot2::coord_quickmap() or ggplot2::coord_sf() with a longitude/latitude CRS. Seeds and trail lengths are set once for the whole layer, so faceted panels are comparable.

Computed variables

speed: wind speed at each point along the trail, in the units of u and v.
t: integration step, negative upwind of the seed and positive downwind.
hours (with fixed_length = FALSE) or km (with fixed_length = TRUE): signed transport time or distance from the seed.
progress: position along the trail from its upwind end (0) to its downwind end (1).

Examples

library(ggplot2)
katrina <- windscape_example("wind_field")

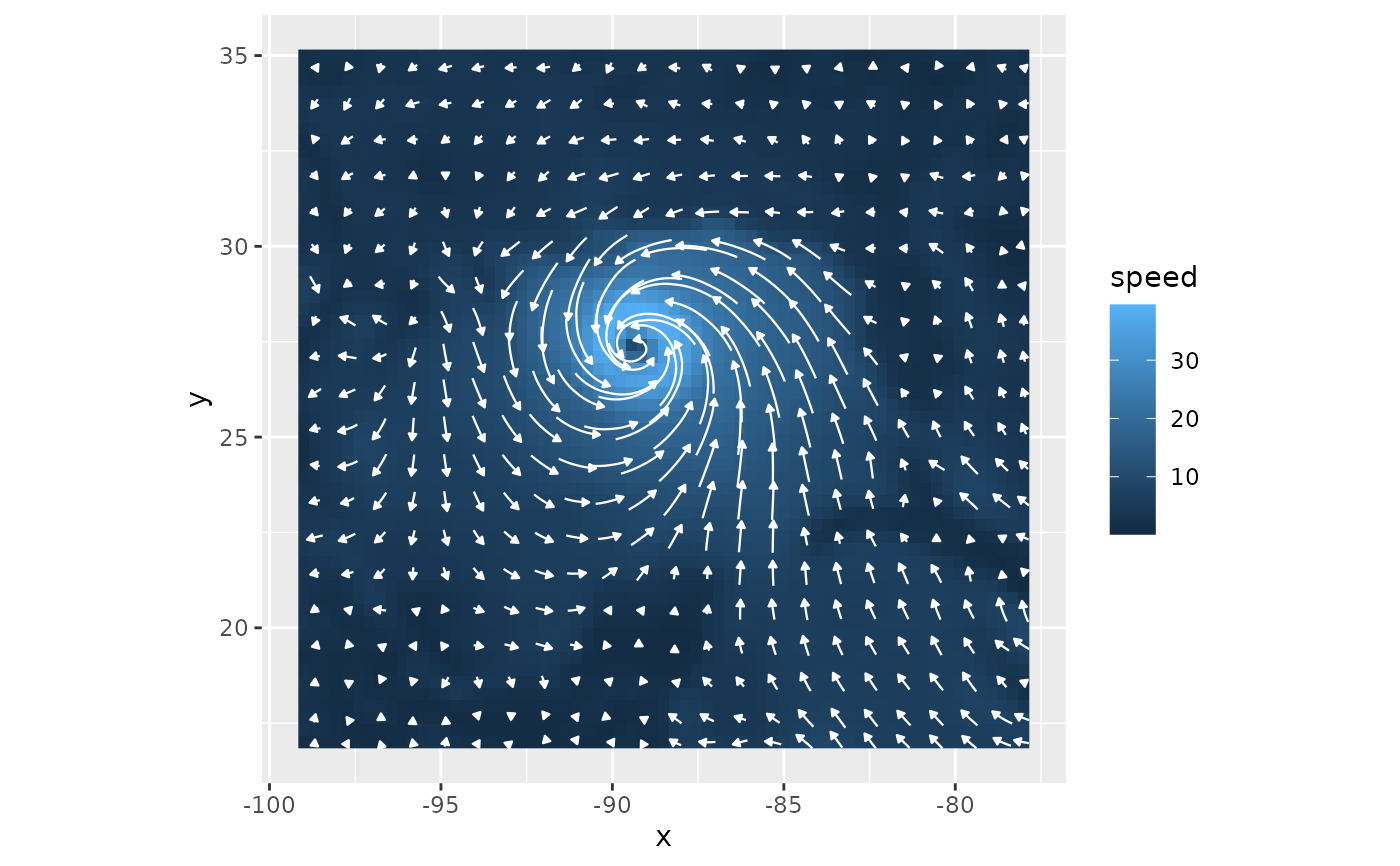

# trails over wind speed, with length proportional to speed
ggplot(katrina, aes(x, y)) +
  geom_raster(aes(fill = speed)) +
  geom_wind_trail(color = "white") +
  coord_quickmap()

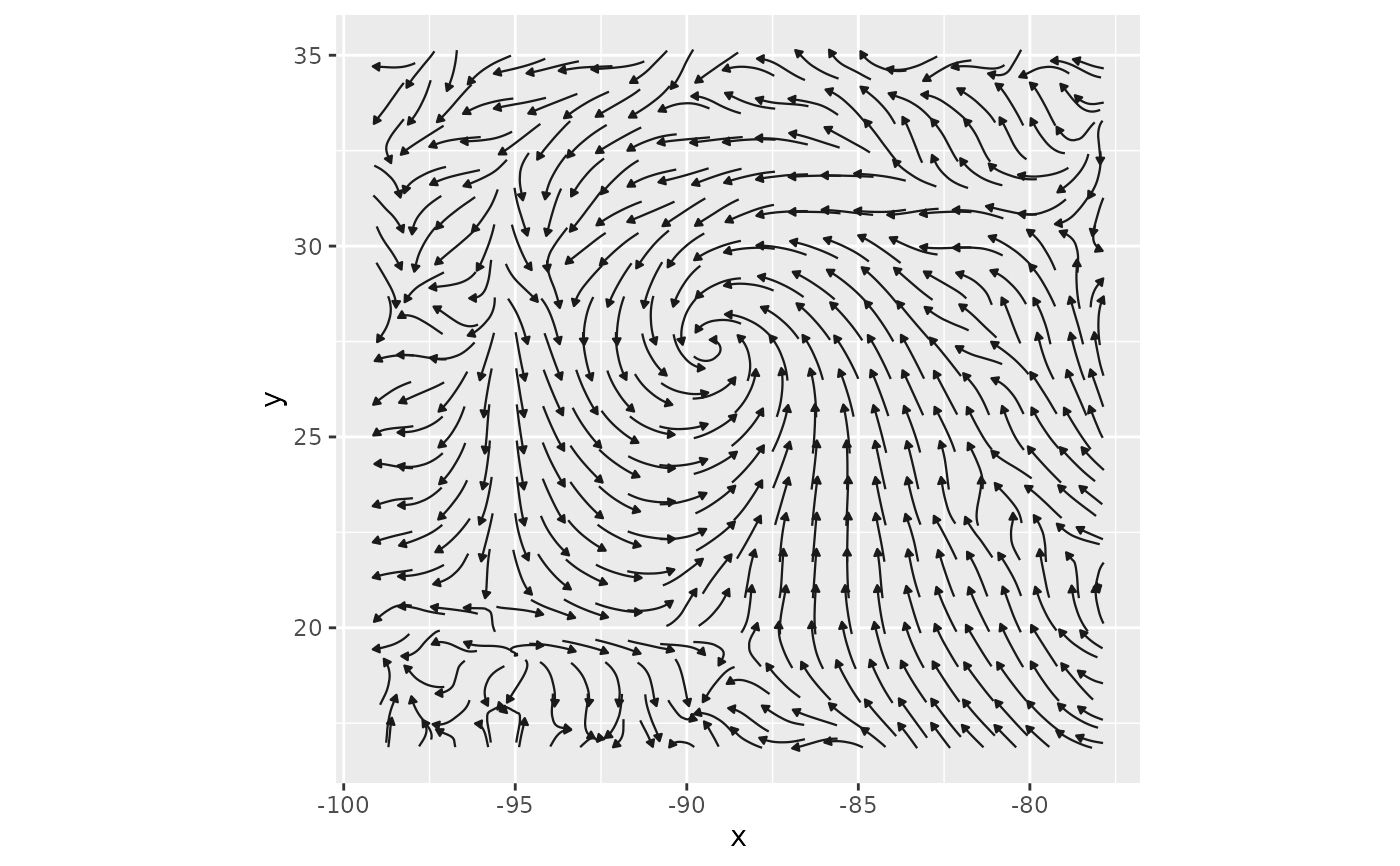

# streamlines: equal-length trails showing direction only
ggplot(katrina, aes(x, y)) +
  geom_wind_trail(fixed_length = TRUE) +
  coord_quickmap()

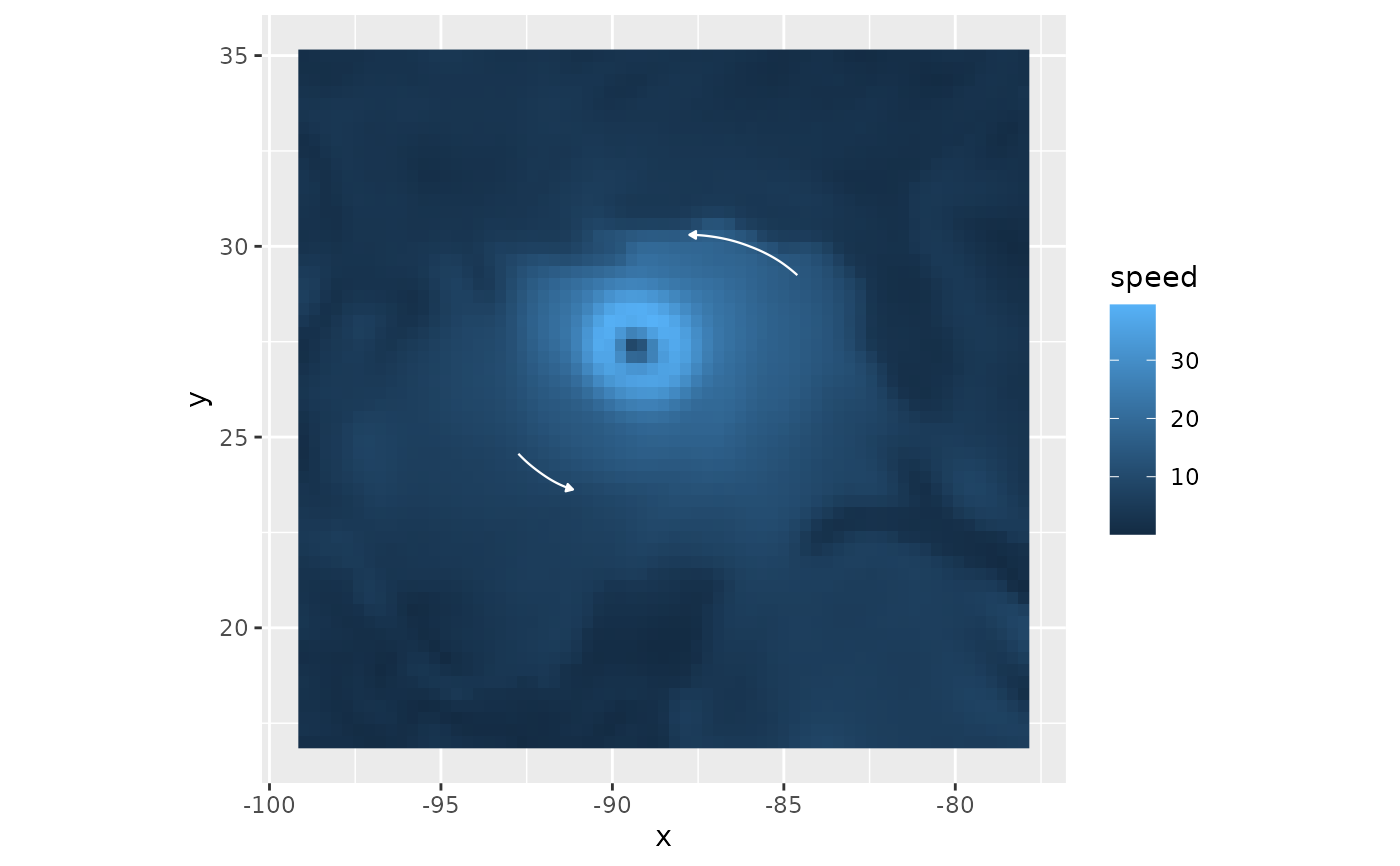

# 6 hours of transport from two sites
sites <- cbind(c(-92, -86), c(24, 30))
ggplot(katrina, aes(x, y)) +
  geom_raster(aes(fill = speed)) +
  geom_wind_trail(seeds = sites, hours = 6, steps = 50, color = "white") +
  coord_quickmap()

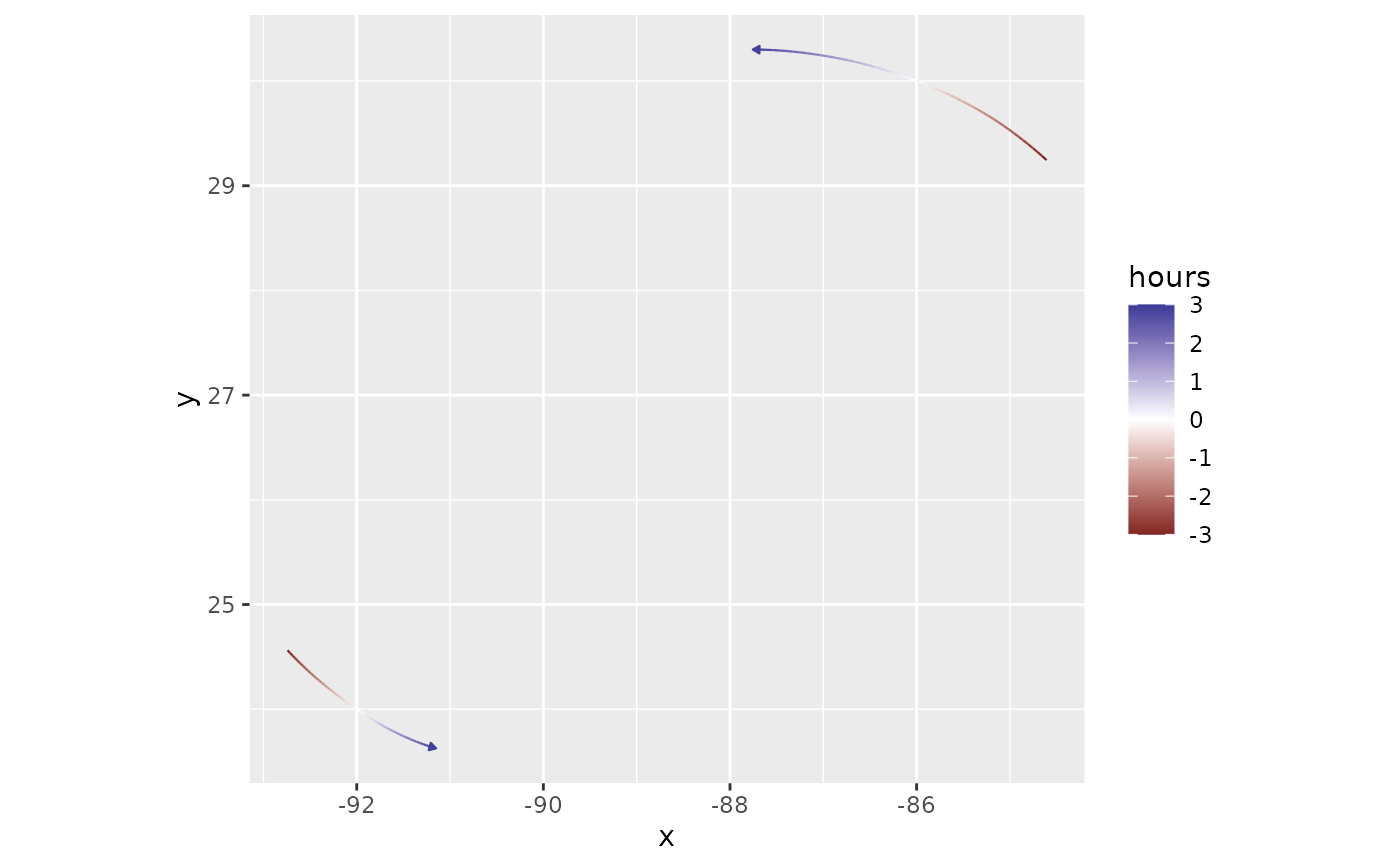

# color trails by a computed variable: transport time from the seed
ggplot(katrina, aes(x, y)) +
  geom_wind_trail(aes(color = after_stat(hours)), seeds = sites, hours = 6, steps = 50) +
  scale_color_gradient2() +
  coord_quickmap()
