Simulate wind dispersal by random walk — random

Estimates the dispersal of particles across a windscape with a Markov random walk on the grid. Each iteration, the "particle mass" in each grid cell is dispersed within its 9-cell neighborhood in proportion to wind conductance. Depending on the application, this mass could represent probability, numbers of seeds or spores, etc. Particles can be released once (mode = "pulse") or continuously (mode = "stream"), and can be deposited along the way (half_life).

Usage

random_walk(
  rose,
  init,
  mode = c("pulse", "stream"),
  direction = c("downwind", "upwind"),
  half_life = Inf,
  timescale = 1,
  latitude_correction = TRUE,
  density = TRUE,
  iter = 100,
  record = iter,
  method = c("auto", "solve", "iterate"),
  tol = 1e-08,
  max_iter = 1e+05,
  flux = FALSE,
  source = NULL,
  progress = FALSE
)

Arguments

rose: A wind_rose.
init: Where particles are released: either a two-column matrix of coordinates, which places a mass of 1 in each cell containing a coordinate, or a single-layer SpatRaster of non-negative mass values with the same geometry as rose. In stream mode, init can be read either as a release rate (mass per hour) or as a one-time release; see Value. With direction = "upwind", init instead gives the receptor locations (and weights) whose sources are traced.
mode: Release mode. "pulse" (the default) releases init once and tracks the drifting, spreading cloud through time. "stream" releases particles continuously and returns the steady state, where release is balanced by deposition and loss across domain edges; equivalently, this is the all-time total for a single release (see Value). It is computed directly rather than by simulating forward.
direction: "downwind" (the default) simulates where particles released at init go: their outbound windshed. "upwind" simulates where particles reaching init come from: its inbound windshed, or catchment. See Value and Details.
half_life: Half-life of airborne mass, in hours of transport time (assuming trans = 1 and wind speeds in m/s; see wind_rose()). Particles are deposited at the continuous rate k = log(2) / half_life, in the cell where they are airborne. Default Inf: no deposition.
timescale: A value between 0 and 1 that scales the time step length (see rw_max_step()). The default of 1 uses the longest possible step, advancing the simulation farthest per iteration. Smaller values give more accurate pulse-mode dynamics or set the step to a desired duration. Stream-mode results do not depend on timescale.
latitude_correction: Logical: correct the compression of east-west spread on longitude/latitude grids, where cells narrow toward the poles? Default TRUE. This adds conductance to east and west edges without changing drift, which shortens the time step (pulse mode needs about 1.3 times as many iterations at 45 degrees, 1.9 at 60). Has no effect on projected rasters. See Details.
density: Logical: express results per km^2 rather than per grid cell? Default TRUE, matching pairwise_random_walk(). On a longitude/latitude grid, cell area shrinks toward the poles, so per-cell values are biased toward lower latitudes; per-km^2 values remove that bias and are comparable across grid resolutions. Downwind, each cell's values are divided by its own area. Upwind, values are per particle released from each origin, so they are instead divided by the area of the receptor (each receptor's own, if several); with a single receptor this rescales the whole map by a constant. flux is divided by each cell's area in either direction. Use density = FALSE for per-cell masses, which sum to totals (e.g. in the pulse-mode mass balance); equivalently, multiply per-km^2 results by terra::cellSize().
iter: Pulse mode only: number of iterations (time steps) to simulate.
record: Pulse mode only: integer vector of iterations to return, between 0 (the initial state) and iter. Default is the final iteration only.
method: Stream mode only: how to compute the steady state. "solve" is exact, using a sparse LU solve. "iterate" repeats the stream update rule until the estimated error is below tol; it uses less memory for very large grids. "auto" (the default) uses "solve" for grids of up to 5e5 cells and "iterate" otherwise.
tol: Stream mode with method = "iterate" only: convergence tolerance, as estimated L1 error relative to total airborne mass. For finite half_life the error estimate is a rigorous bound; for half_life = Inf it is extrapolated from the observed convergence rate.
max_iter: Stream mode with method = "iterate" only: maximum number of iterations, after which a warning is given.
flux: Stream mode only: logical: also return the net flux of material, the direction and rate at which it moves through each cell? Default FALSE. For upwind walks, requires a finite half_life. See Value.
source: Upwind stream mode only: where material is released, used for origin and flux: either a two-column matrix of coordinates (a unit release in each cell containing a coordinate) or a single-layer SpatRaster of non-negative release per grid cell, like init. Default NULL releases uniformly per km^2 (each cell in proportion to its area). To use a map of release per km^2, multiply it by terra::cellSize().
progress: Pulse mode only: logical: show a progress bar while iterating? Default FALSE.

Value

A named list of two wind_walk rasters: airborne and deposition in pulse mode, or residence and deposition in stream mode. Masses are in the units of init, per km^2 by default or per grid cell with density = FALSE (see density), and hours assume trans = 1 and wind speeds in m/s. Cells that are NA in rose are NA in the output.

Pulse mode. Each element has one layer per iteration in record (named iter0, iter1, ...):

airborne: the mass airborne over each cell at that iteration.
deposition: the cumulative mass deposited in each cell up to that iteration. Zero everywhere if half_life = Inf.

At every iteration, airborne mass plus deposition plus mass lost across domain edges equals the released mass (summing per-cell values, i.e. with density = FALSE). Use iter_length() to convert iterations to hours.

Stream mode. Each element is a single layer, and neither depends on timescale. The two differ in units by a factor of time:

residence: airborne mass integrated over time, in mass-hours (units of init times hours).

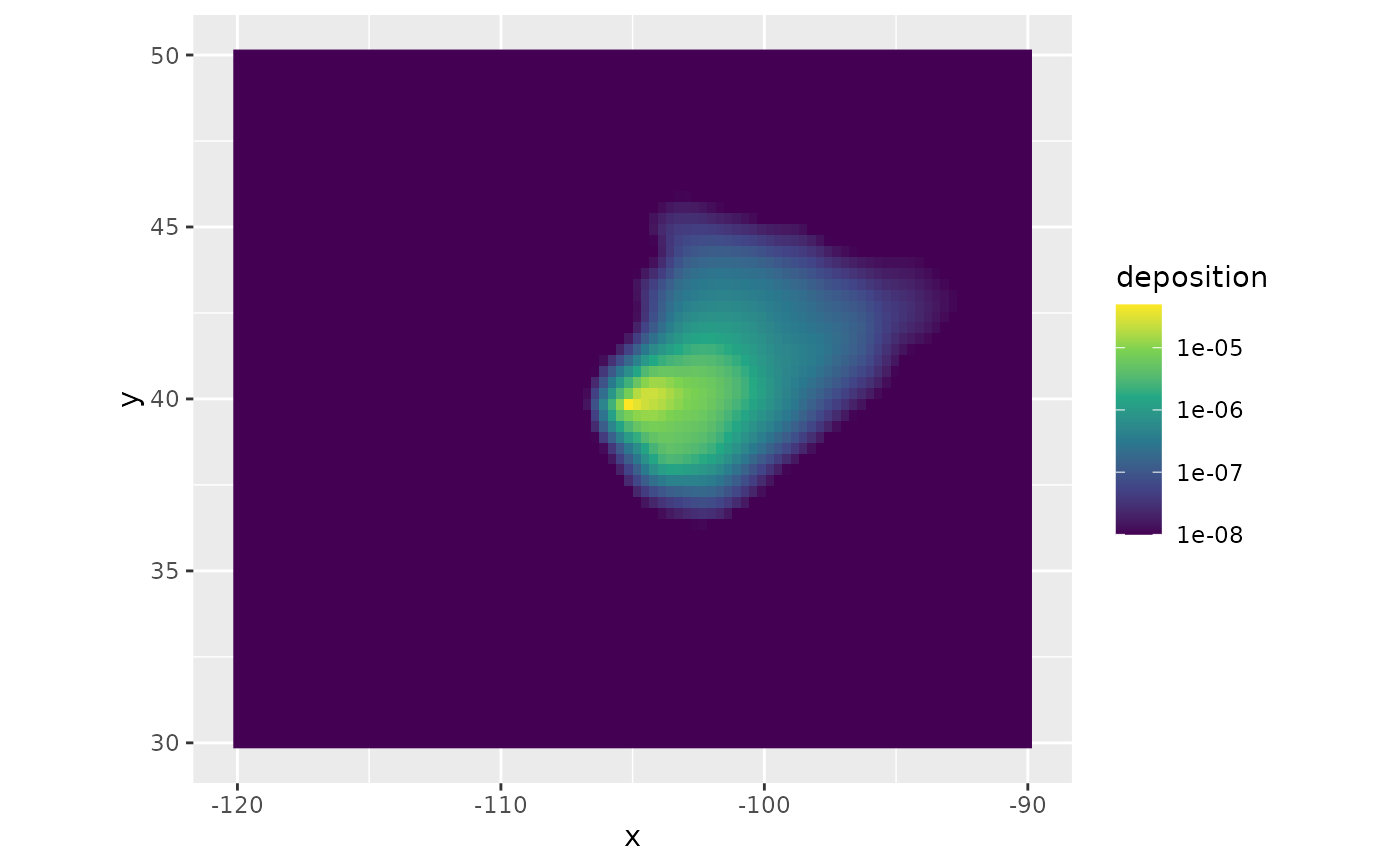

deposition: deposited mass, in units of init. It equals k * residence, where k = log(2) / half_life is the deposition rate per hour, so it is zero everywhere if half_life = Inf.

Stream results have two equivalent readings. They are the steady state when init is released continuously as a rate (mass per hour), in which case residence is the steady-state airborne mass and deposition the steady-state deposition rate (mass per hour). They are also the all-time totals for a single release of init, in which case residence is the total mass-hours spent airborne over each cell and deposition the total mass eventually deposited; for a unit release from one cell, deposition is the probability distribution of where a particle lands (a probability density per km^2 by default, or a probability per cell with density = FALSE).

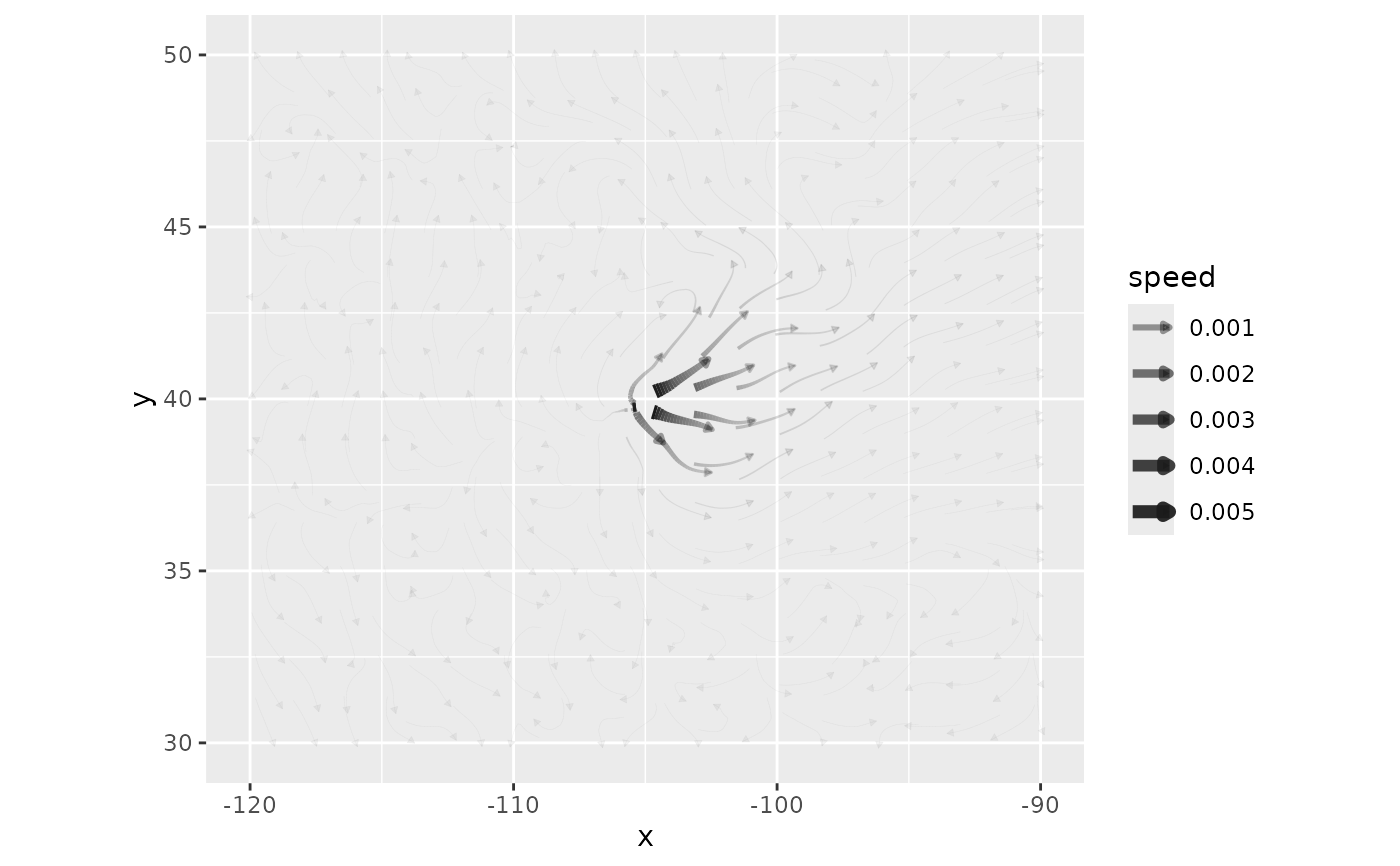

Net flux. With flux = TRUE, the list also contains flux, a wind_field() whose u and v layers are the eastward and northward components of the net transport of material through each cell: the flow from the cell to each neighbor minus the flow back, times the distance to that neighbor, halved (each flow is shared between two cells). Units are mass times km per hour (if init is a release rate, trans = 1, and wind speeds are in m/s); direction and relative magnitude are usually what matter. Draw it with geom_wind_arrow(), or stat_wind_trail() with fixed_length = TRUE. Unlike the gradient of residence or deposition, which describes the shape of the windshed, net flux shows the transport that produces it: across a plume's flanks, for example, material moves mostly downwind, not sideways down the gradient. Each cell's net outflow equals its release minus its deposition.

For upwind walks, flux is the transport of the material that ends up at the receptor: material released per source (by default, uniformly, one unit per km^2 per hour) and eventually deposited at the receptor (weighted by init). It shows the routes by which the receptor's material arrives. Each cell's net outflow equals its release of such material (its release times its probability of eventual deposition at the receptor) minus the amount deposited in the cell, which is nonzero only at the receptor.

Relationship between modes. For the same rose, init, half_life, and latitude_correction, stream results are the totals that a pulse walk accumulates over all time, at any timescale. Stream deposition equals pulse deposition once the pulse has run until negligible mass remains airborne, and stream residence equals pulse airborne mass integrated over time (exactly, (1 - lambda) * t times its sum over iterations 0, 1, 2, ...; see Details). This holds because the walk is linear (particles move independently, so their contributions add) and time-invariant (the same rose applies at every time step), which is also why continuous and single releases give the same numbers.

Upwind walks. With direction = "upwind", each cell's values describe particles released from that cell and their contribution to the receptor at init (weighted by its values, if a raster):

Stream deposition: the probability that a particle released from the cell is deposited at the receptor. This maps where the receptor's deposited material comes from.
Stream residence: the time, in hours, that a unit release from the cell spends airborne over the receptor.
Pulse airborne at iteration k: the probability that a particle released from the cell is airborne over the receptor k time steps later; and pulse deposition: the probability it has been deposited there by then.
Stream origin (with a finite half_life): the probability that a particle deposited at the receptor was released from the cell. Where deposition asks "if a particle were released here, would it reach the receptor?", origin asks "of the particles reaching the receptor, what share came from here?" By Bayes' rule, origin is deposition times release (see source), normalized to sum to 1 over cells, or with density = TRUE, to integrate to 1 per km^2. With the default uniform release per km^2, origin with density = TRUE is proportional to deposition. Shares are among sources inside the domain: material from beyond its edges is not represented. For a receptor spanning several cells, origin covers particles landing anywhere in it.

Details

Transition probabilities

The wind rose is converted to a simplex of nine probabilities for each grid cell, giving the rates at which particles remain in the cell or move to each of its eight neighbors. Probabilities of moving to a neighbor are proportional to conductance, and retention probabilities are scaled so that the cell with the highest total conductance has zero retention. This keeps conductance proportional across cells while maximizing the dispersal occurring at each iteration.

This is uniformization of the continuous-time Markov chain defined by the conductances, which are rates (in units of 1 / hours, if trans = 1 and wind speeds are in m/s). With time step t and rate matrix Q, the transition matrix is P = I + tQ. Pulse iterations are therefore a first-order approximation of the continuous-time process at times t, 2t, ...; reducing timescale improves their accuracy.

Deposition and the two release modes

Each time step, airborne mass disperses and a fraction lambda = kt / (1 + kt) of it is deposited, where k = log(2) / half_life. This is the uniformization of transport and deposition together, so stream-mode results are exact solutions of the continuous-time process and independent of timescale. In pulse mode, mass halves after approximately half_life hours (exactly in the limit of small timescale).

The pulse update rule is n <- (1 - lambda) * disperse(n), with lambda * n deposited in place each step before dispersal. The stream update rule is n <- n0 + (1 - lambda) * disperse(n), with fixed point n* = (I - (1 - lambda) P')^-1 n0; residence is (1 - lambda) * t * n*. The two modes are linked exactly: stream-mode residence equals (1 - lambda) * t times the sum of the pulse-mode surfaces over all time steps, starting from step 0.

Upwind walks

Write the downwind stream solution as n* = G n0, where entry G[r, s] is the airborne mass at cell r per unit released at cell s. A downwind walk from a source s gives column s of G: everywhere that source's particles go. An upwind walk to a receptor r gives row r: every source's contribution to that receptor. It is computed with the adjoint process, using the transpose of the downwind transition matrix (P in place of P'), not by reversing the wind, so for any source s and receptor r, the upwind value at s equals the downwind value at r. The same holds for each pulse iteration.

Domain edges

Domain edges are absorbing: mass that disperses off the grid, or into NA cells, is lost and never returns. Values near edges are therefore biased low, because they receive no inflow from beyond the edge. In stream mode with finite half_life, the fraction of released mass lost across edges is reported as a message; the domain should be buffered by several decay lengths beyond the area of interest, until this fraction is small or the bias in the area of interest is acceptable. With half_life = Inf, edges are the only place stream-mode mass can leave, so the result measures connectivity within the chosen domain and depends on its extent; every valid cell must have a path to an edge or NA cell, or an error is raised. rw_exit_prob() maps the probability that mass released at each cell leaves the domain, which bounds the effect of the domain boundary on results for particles released there; the reported edge-loss fraction is this probability averaged over sources, weighted by release.

Latitude correction

Conductances account for latitude (see wind_rose()), so the speed at which mass drifts is correct at all latitudes for winds aligned with a neighbor direction. However, the spread of mass in a nearest-neighbor walk is numerical diffusion whose magnitude scales with hop length. Because longitude/latitude cells narrow east-west toward the poles, east-west hops are shorter than north-south hops, and without correction east-west spread is compressed: for isotropic wind, to roughly 0.86, 0.70, and 0.49 times north-south spread at 30, 45, and 60 degrees latitude.

The correction scales each cell's east-west spread rate up to what the same rose would produce on square cells of the same north-south size, by adding equal conductance to its east and west edges. Because these two neighbors are exactly opposite, drift is unchanged. In tests against the same winds on square cells, the correction brings east-west spread to within about 8 percent of the square-cell value across a range of wind regimes at 45 and 60 degrees. It does not correct the orientation (east-west/north-south covariance) of spread for oblique winds, which remains underestimated at high latitude, nor the small drift bias for winds blowing between neighbor directions (up to about 8 percent at the equator, more at high latitude). The added conductance shortens the time step by an amount set by the highest-latitude cells in the domain. Spread remains dependent on grid resolution with or without the correction.
