Wind field arrows

geom_wind_arrow.Rd

Draws an arrow for each block of grid cells in a wind field, showing the direction and speed of the block's mean wind vector. stat_wind_arrow() averages wind components over blocks and computes arrow positions; geom_wind_arrow() draws them.

Usage

geom_wind_arrow(
  mapping = NULL,
  data = NULL,
  stat = StatWindArrow,
  position = "identity",
  ...,
  res = 20,
  scale = 1,
  fixed_length = FALSE,
  pivot = 0.5,
  arrow = grid::arrow(length = grid::unit(0.12, "cm"), type = "closed"),
  saturation = 0.5,
  center = FALSE,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

stat_wind_arrow(
  mapping = NULL,
  data = NULL,
  geom = GeomWindArrow,
  position = "identity",
  ...,
  res = 20,
  scale = 1,
  fixed_length = FALSE,
  pivot = 0.5,
  arrow = grid::arrow(length = grid::unit(0.12, "cm"), type = "closed"),
  saturation = 0.5,
  center = FALSE,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Aesthetic mappings created by ggplot2::aes(). x and y (cell center coordinates, in degrees longitude and latitude) must be mapped, usually in the plot's main call: ggplot(field, aes(x, y)). The wind components u (eastward) and v (northward) are mapped automatically to columns of the same names, as produced by fortify() on a wind_field (see fortify.windscape). If your columns are named differently, map them in this layer's mapping rather than in ggplot2::ggplot().

data

A data frame, or a wind_field, which is converted with fortify(). Default is to inherit the plot's data. The data must have one wind vector per grid cell in each panel and group, so to plot a wind_series, select a time step with subset_series() or facet by time.

stat, geom

Use to override the default pairing of stat_wind_arrow() and geom_wind_arrow().

position

Position adjustment; see ggplot2::layer().

...

Other arguments passed to ggplot2::layer(), such as fixed aesthetics like color = "white" or linewidth = 1.

res

Approximate number of arrows along the longer side of the data's extent. Blocks of grid cells are sized to be approximately square in km, and the same blocks are used in every panel. Default 20.

scale

Multiplier for the length of all arrows. At the default of 1, an arrow at the 90th percentile of speed across the layer (including all panels) is 0.9 times the spacing between arrows, or with fixed_length = TRUE, every arrow is.

fixed_length

Logical: give all arrows the same length, so that length shows only direction? Default FALSE (length proportional to speed). Use with a speed mapping such as aes(color = after_stat(speed)) or aes(linewidth = after_stat(speed)) to encode speed another way. Blocks with zero mean wind get no arrow.

pivot

Position of the arrow relative to its block center, as the fraction of its length that lies behind (upwind of) the center: 0.5 (the default) centers the arrow on the block, 0 starts it at the center.

arrow

Arrowhead specification created by grid::arrow(), or NULL for none.

saturation

If a consistency aesthetic is mapped (e.g. aes(consistency = after_stat(consistency))), arrow colors are blended toward gray where consistency is below this value. Default 0.5; set to 0 to disable blending.

center

Logical: draw a point at each block center? Default FALSE. With pivot = 0 and arrow = NULL, this gives a point-and-spoke plot.

na.rm, show.legend, inherit.aes

See ggplot2::layer().

Value

A ggplot2 layer.

Details

Wind components are averaged as vectors, so the arrow shows the block's net wind. Arrows are built in longitude/latitude coordinates, scaled so that their directions and relative lengths are correct in km at each block's latitude. Use ggplot2::coord_quickmap() or ggplot2::coord_sf() with a longitude/latitude CRS.

Computed variables

  • bearing: direction of the block's mean wind vector, in degrees clockwise from north.

  • speed: speed of the mean wind vector, in the units of u and v. This sets arrow length.

  • mean_speed: mean of the wind speeds of the block's cells.

  • consistency: speed / mean_speed, the spatial coherence of wind direction within the block; 1 where all cells' winds point the same way, lower where they diverge, converge, or rotate (as in a cyclone's eye), meaning the arrow understates the block's winds.

  • n: number of grid cells in the block.

  • x0, y0: block center, the mean coordinates of its cells.

Examples

library(ggplot2)
katrina <- windscape_example("wind_field")

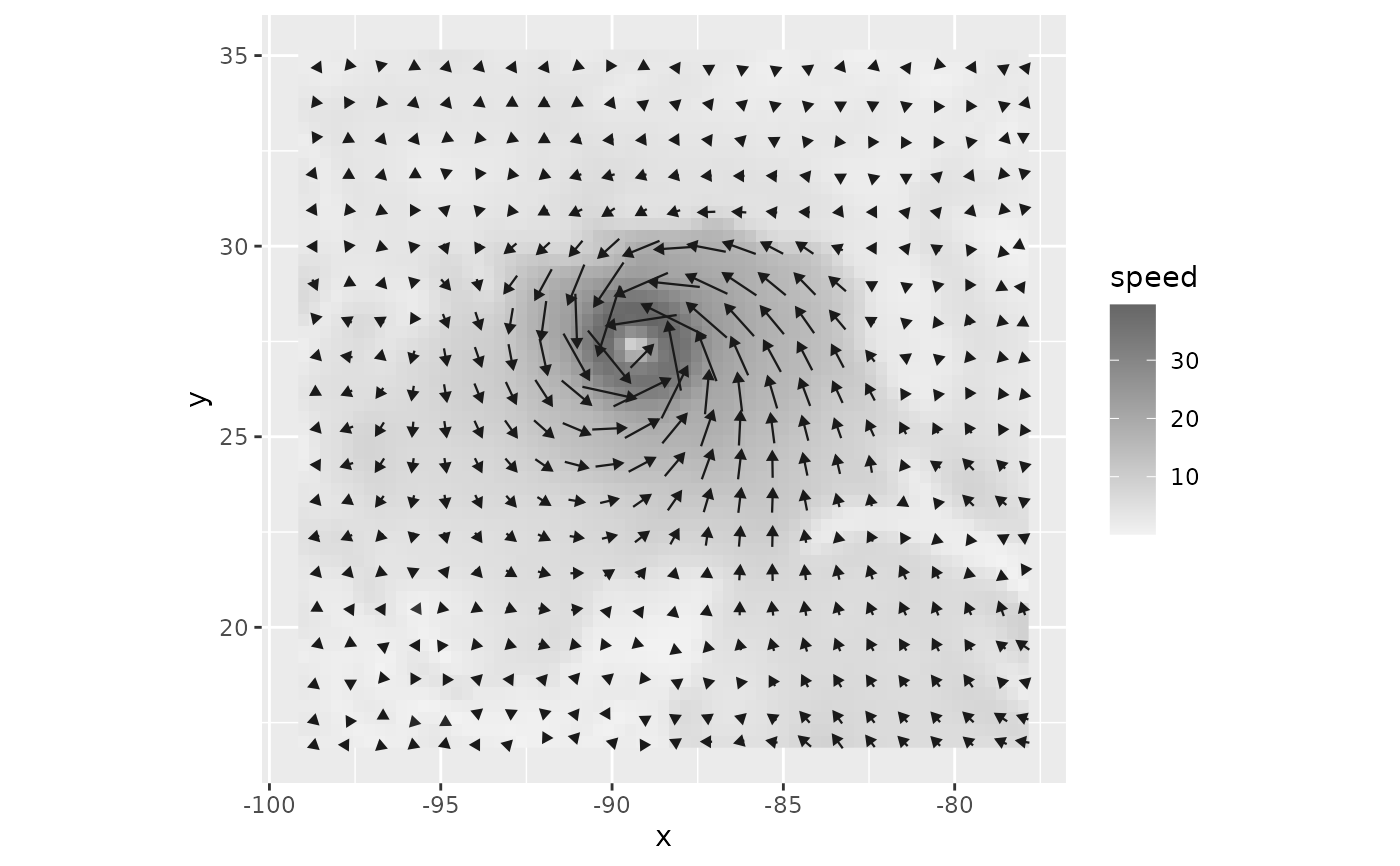

# map background variables in the raster layer, not in ggplot(), so that the arrow layer
# doesn't inherit them
ggplot(katrina, aes(x, y)) +
  geom_raster(aes(fill = speed)) +
  scale_fill_gradient(low = "gray95", high = "gray40", name = "speed") +
  geom_wind_arrow() +
  coord_quickmap()

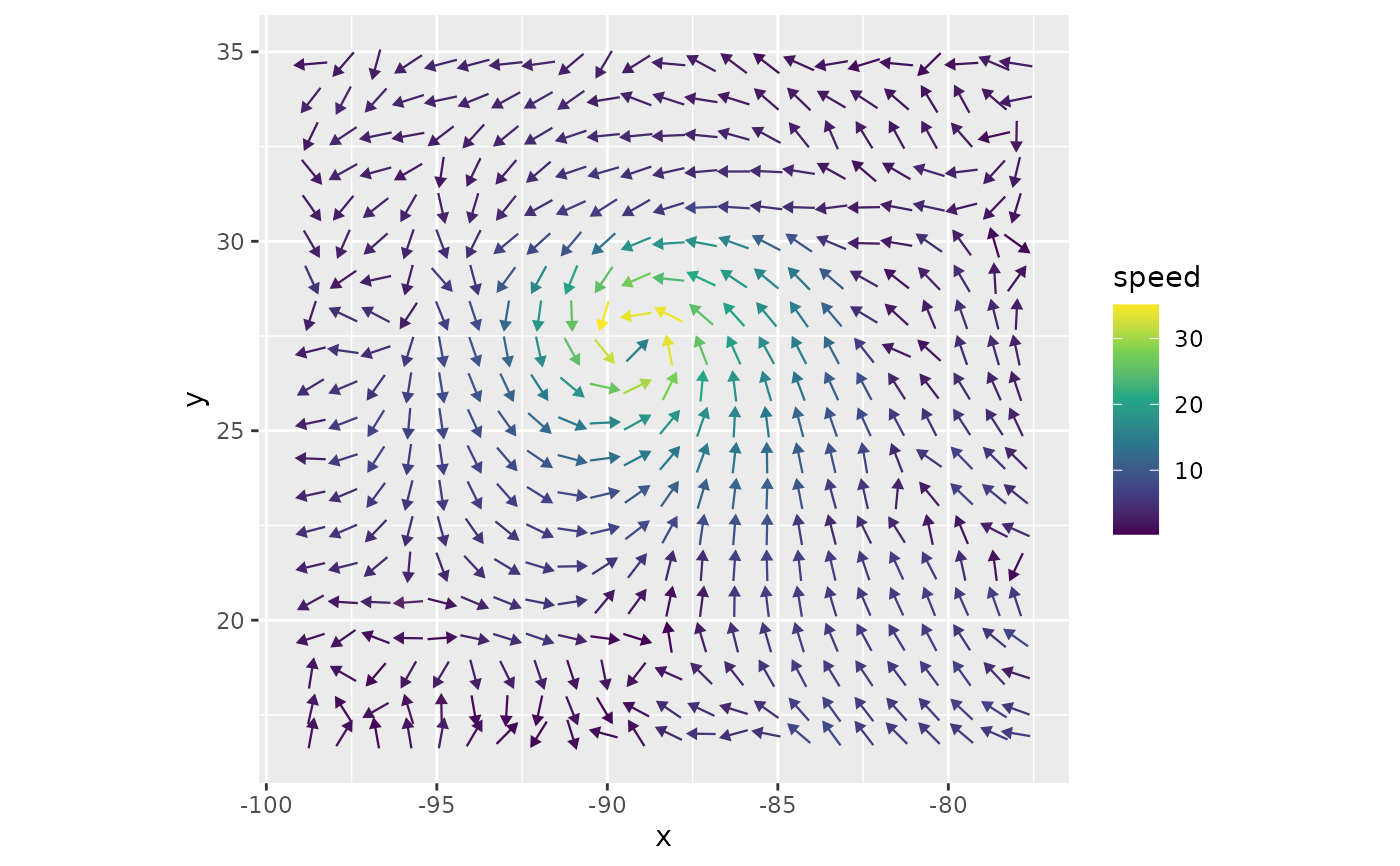

# fixed-length arrows, with speed shown by color
ggplot(katrina, aes(x, y)) +
  geom_wind_arrow(aes(color = after_stat(speed)), fixed_length = TRUE) +
  scale_color_viridis_c() +
  coord_quickmap()

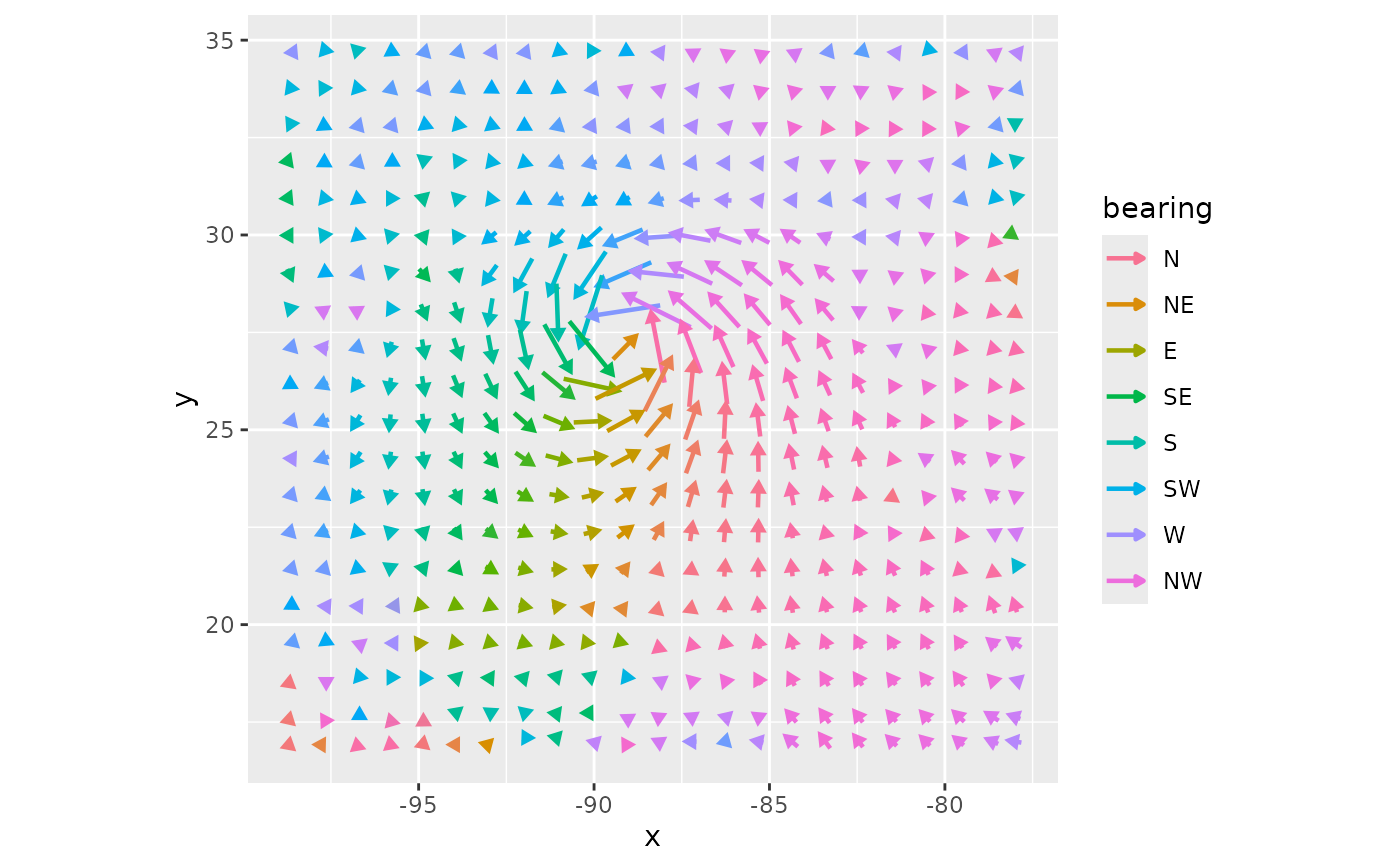

# arrows colored by direction
ggplot(katrina, aes(x, y)) +
  geom_wind_arrow(aes(color = after_stat(bearing)), linewidth = 0.8) +
  scale_color_bearing() +
  coord_quickmap()
