Generate rectangular, triangular, or hexagonal grids

Creates a regular grid of tiles of specified resolution and geometry. This function is called by various ggcube stats that generate surfaces, but can also be used directly. Returns tile vertex data formatted for geoms like geom_poygon() and geom_poygon_3d().

Usage

make_tile_grid(
  grid = c("triangle", "rectangle", "hexagon"),
  n = 40,
  direction = c("x", "y"),
  xlim,
  ylim,
  trim = TRUE
)

Arguments

grid

Character argument specifying geometry of grid to generate. Options include "tri" (the default) for triangular grid, "rect" for rectangular grid, or "hex" for hexagonal grid. Triangles produce a proper 3D surface that can prevent lighting artifacts in places where a surface curves past parallel with the sight line.

n

Either a single integer specifying grid resolution in both dimensions, or a vector of length 2 specifying c(nx, ny) for separate x and y resolutions. Default is 40. Higher values create smoother surfaces but slower rendering.

direction

Either "x" (the default) or "y", specifying the orientation of tile rows. Ignored for rectangular grids.

xlim, ylim

Length-two numeric vectors defining bounding box over which to generate the grid.

trim

Logical. Only relevant for triangular and hexagonal grids. If TRUE (default), trims edge tiles to so that grid boundaries are straight lines. If FALSE, preserves the full shape of all tiles, resulting in a grid with irregular edges.

Value

A data frame with the following columns: x, y, group (integer denoting unique polygon id), and order (integer giving vertex order for plotting; vertices are in counter-clockwise winding order).

Details

Grids are constructed such that tiles are approximately equilateral when scaled to a square domain, unless n gives separate resolution values for the two dimensions. For triangular and hexagonal grids, this means that n is only approximate.

See also

stat_function_3d(), stat_smooth_3d(), and stat_density_3d() for ggcube layers that use make_tile_grid() to generate gridded surfaces.

Examples

# direct use
g <- make_tile_grid("tri", xlim = c(0, 5), ylim = c(-100, 100))
head(g)
#> # A tibble: 6 × 4
#>   group      x      y order
#>   <int>  <dbl>  <dbl> <int>
#> 1     1 0      -100       1
#> 2     1 0.0833  -94.3     2
#> 3     1 0       -94.3     3
#> 4     2 0      -100       1
#> 5     2 0.167  -100       2
#> 6     2 0.0833  -94.3     3

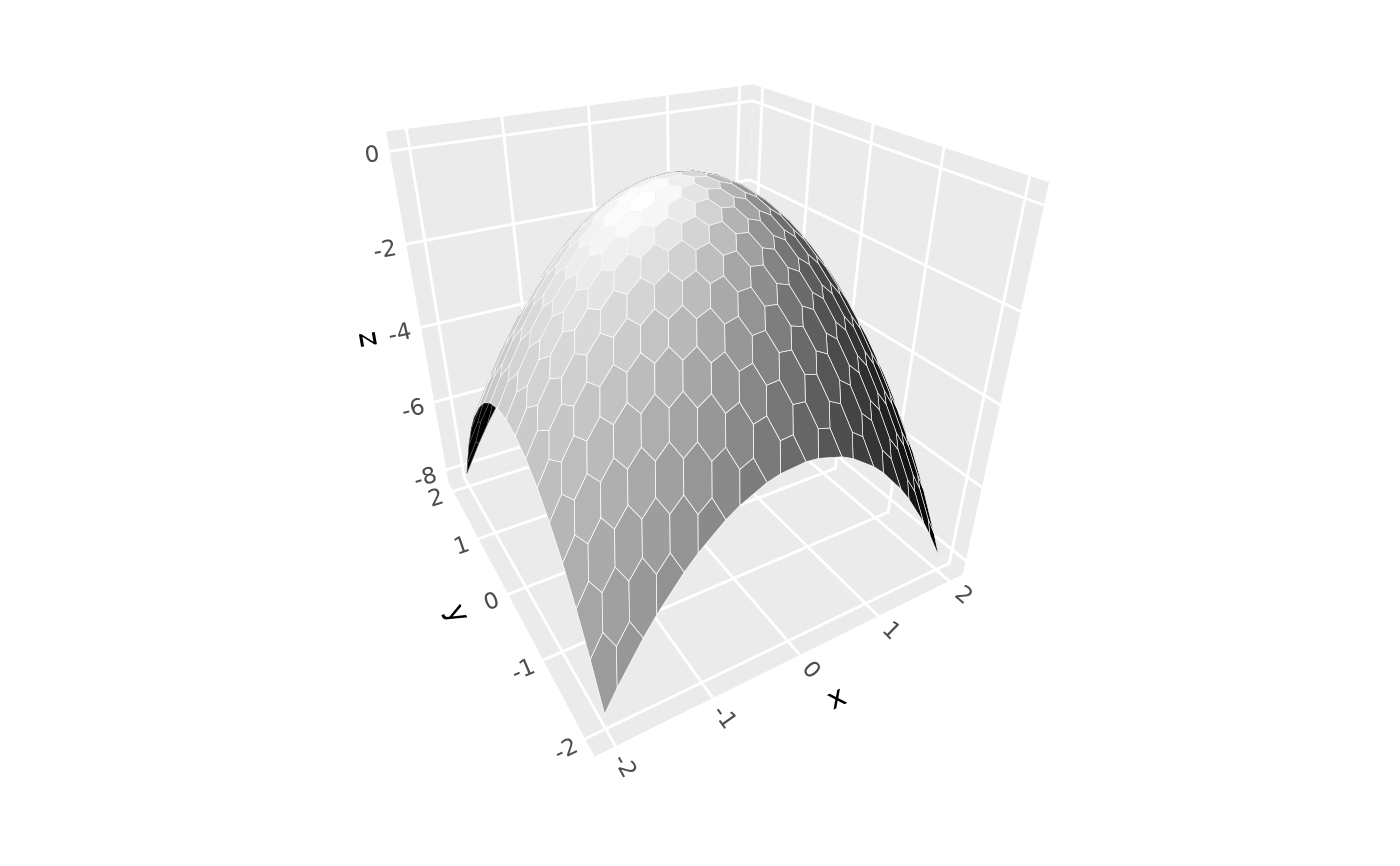

# use from within ggcube stat
ggplot() +
  stat_function_3d(
    grid = "hex", n = 20, xlim = c(-2, 2), ylim = c(-2, 2),
    fun = function(x, y) - x^2 - y^2,
    fill = "black", color = "white", light = NULL) +
  coord_3d()
