3D text labels

Source: R/geom-text-3d.R
geom_text_3d.Rd

geom_text_3d() renders text labels in 3D space. Two rendering methods are available: "billboard" (default) renders text as flat labels that always face the camera, while "polygon" renders text as filled polygons that can be oriented in any direction.

Usage

geom_text_3d(
  mapping = NULL,
  data = NULL,
  position = "identity",
  ...,
  method = c("billboard", "polygon"),
  facing = "zmax",
  coord = NULL,
  aspect_adjust = 1,
  light = NULL,
  angle = 0,
  nudge_x = 0,
  nudge_y = 0,
  nudge_z = 0,
  size = 3.88,
  hjust = 0.5,
  vjust = 0.5,
  lineheight = 1.2,
  scale_depth = TRUE,
  family = "sans",
  weight = "normal",
  italic = FALSE,
  fontface = "plain",
  spacing = 0,
  tolerance = 0.01,
  rule = "evenodd",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

stat_text_3d(
  mapping = NULL,
  data = NULL,
  geom = NULL,
  position = "identity",
  ...,
  method = c("billboard", "polygon"),
  facing = "zmax",
  coord = NULL,
  aspect_adjust = 1,
  light = NULL,
  angle = 0,
  nudge_x = 0,
  nudge_y = 0,
  nudge_z = 0,
  size = 3.88,
  hjust = 0.5,
  vjust = 0.5,
  lineheight = 1.2,
  scale_depth = TRUE,
  family = "sans",
  weight = "normal",
  italic = FALSE,
  fontface = "plain",
  spacing = 0,
  tolerance = 0.01,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings. See ggplot2::aes().

data

A data frame containing the variables to plot.

position

Position adjustment. Defaults to "identity".

...

Other arguments passed to the layer.

method

Rendering method: "billboard" (default) for flat camera-facing text, or "polygon" for 3D-oriented filled text.

facing

(Polygon method only) Direction the text should face. One of "xmin", "xmax", "ymin", "ymax", "zmin", "zmax" (default), "camera", a numeric vector of length 3, or a camera_facing() specification. Use "camera" with the coord parameter to automatically face the camera. Ignored with a warning for billboard method.

coord

(Polygon method only) A coord_3d() object. When provided: (1) if facing = "camera", extracts rotation parameters automatically; (2) uses the coord's ratio and scales parameters to correct text aspect ratio so text doesn't appear stretched. Ignored for billboard method.

aspect_adjust

(Polygon method only) Scalar multiplier for text height relative to width. Default is 1 (normal proportions). Values > 1 make text taller, values < 1 make text wider. When coord is provided, this is multiplied by the computed aspect correction. Ignored for billboard method.

light

(Polygon method only) A lighting specification created by light(), or NULL for no lighting. When provided, text polygons are shaded based on their facing direction. Ignored for billboard method.

angle

Rotation angle in degrees. For polygon method, rotates around the facing axis. For billboard method, rotates in the view plane.

nudge_x, nudge_y, nudge_z

Offset to apply to text position in data units.

size

Font size in mm (same units as ggplot2::geom_text()). Default is 3.88, which corresponds to approximately 11pt text.

hjust, vjust

Horizontal and vertical justification of text (0-1).

lineheight

Line height multiplier for multi-line text.

scale_depth

Logical; if TRUE (default), scale by depth for perspective effect. For billboard method, this scales the font size. For polygon method, this scales the outline linewidth (the polygon fill is always depth-scaled by the 3D projection).

family

Font family.

weight

(Polygon method only) Font weight: "normal", "bold", "thin", "light", etc.

italic

(Polygon method only) Logical; use italic font variant.

fontface

Font face (for billboard method): "plain", "bold", "italic", or "bold.italic".

spacing

(Polygon method only) Additional letter spacing in em units.

tolerance

(Polygon method only) Bezier curve tolerance for text outlines. Lower values give smoother curves but more vertices.

rule

(Polygon method only) Fill rule for polygons with holes. Either "evenodd" (default) or "winding".

na.rm

If TRUE, silently remove missing values.

show.legend

Logical. Should this layer be included in the legends?

inherit.aes

If TRUE, inherit aesthetics from the plot's default.

geom

The geometric object to use. Defaults based on method.

stat

The statistical transformation to use. Defaults based on method.

Value

A ggplot2 layer.

Methods

  • "billboard" (default): Fast, simple text rendering using native fonts. Text is always parallel to the view plane (like a billboard). Only uses the colour aesthetic for text color.

  • "polygon": Renders text as filled polygon outlines. Text can be oriented to face any direction using the facing parameter. Uses both fill (text fill) and colour (text outline) aesthetics.

Orientation (polygon method only)

The facing parameter controls which direction the text faces:

  • "zmax" (default): Text faces upward (readable from above)

  • "xmin", "xmax", "ymin", "ymax", "zmin": Text faces toward the specified cube face

  • A numeric vector c(x, y, z): Text faces the specified direction

  • camera_facing(...): Text faces the camera

The angle parameter rotates the text around its facing axis (in degrees). With angle = 0, the text baseline is oriented as horizontally as possible (parallel to the x-y plane when the facing direction allows).

Camera-facing text

For billboard method, text automatically faces the camera - no configuration needed.

For polygon method, there are two ways to make text face the camera:

  1. Use facing = "camera" with the coord parameter (recommended):

my_coord <- coord_3d(pitch = 20, roll = -60, yaw = -30)
ggplot(df, aes(x, y, z = z, label = label)) +
  geom_text_3d(method = "polygon", facing = "camera", coord = my_coord) +
  my_coord

  1. Pass camera_facing() directly to facing:

ggplot(df, aes(x, y, z = z, label = label)) +
  geom_text_3d(method = "polygon",
               facing = camera_facing(pitch = 20, roll = -60, yaw = -30)) +
  coord_3d(pitch = 20, roll = -60, yaw = -30)

Aspect Ratio Correction

For polygon method, text can appear stretched if the x, y, and z axes have different data ranges. Providing a coord_3d() object via the coord parameter enables automatic aspect ratio correction based on the coord's ratio and scales settings.

If other layers in your plot have different data ranges that affect the final scale limits, you can fine-tune the correction with aspect_adjust:

  • aspect_adjust = 1 (default): Use the computed correction

  • aspect_adjust > 1: Make text taller

  • aspect_adjust < 1: Make text wider

Size and Scaling

Text size is specified in mm via the size parameter, matching the units used by ggplot2::geom_text(). The default size of 3.88 corresponds to approximately 11pt text.

Both methods use the same size units, so switching between "billboard" and "polygon" methods with the same size value will produce similarly sized text (assuming a typical 6 inch plot).

When scale_depth = TRUE (the default), text farther from the viewer appears smaller, creating a natural perspective effect. For billboard method, this scales the font size. For polygon method, this scales the outline linewidth (the polygon fill is always depth-scaled by the 3D projection).

Aesthetics

geom_text_3d() understands the following aesthetics (required in bold):

Both methods:

  • x, y, z, label

  • alpha

Billboard method:

  • colour - text color

  • size - font size in mm

  • family, fontface

  • hjust, vjust

  • angle - rotation in view plane

  • lineheight

Polygon method:

  • fill - text fill color

  • colour - text outline color

  • linewidth - outline thickness

See also

camera_facing() for camera-facing specifications, text_outlines() for text-to-polygon conversion

Examples

df <- expand.grid(x = c("H", "B"), y = c("a", "o", "u"), z = c("g", "t"))
df$label <- paste0(df$x, df$y, df$z)

# Billboard text (default) - automatically faces camera
ggplot(df, aes(x, y, z, label = label)) +
  geom_text_3d() +
  coord_3d(scales = "fixed")

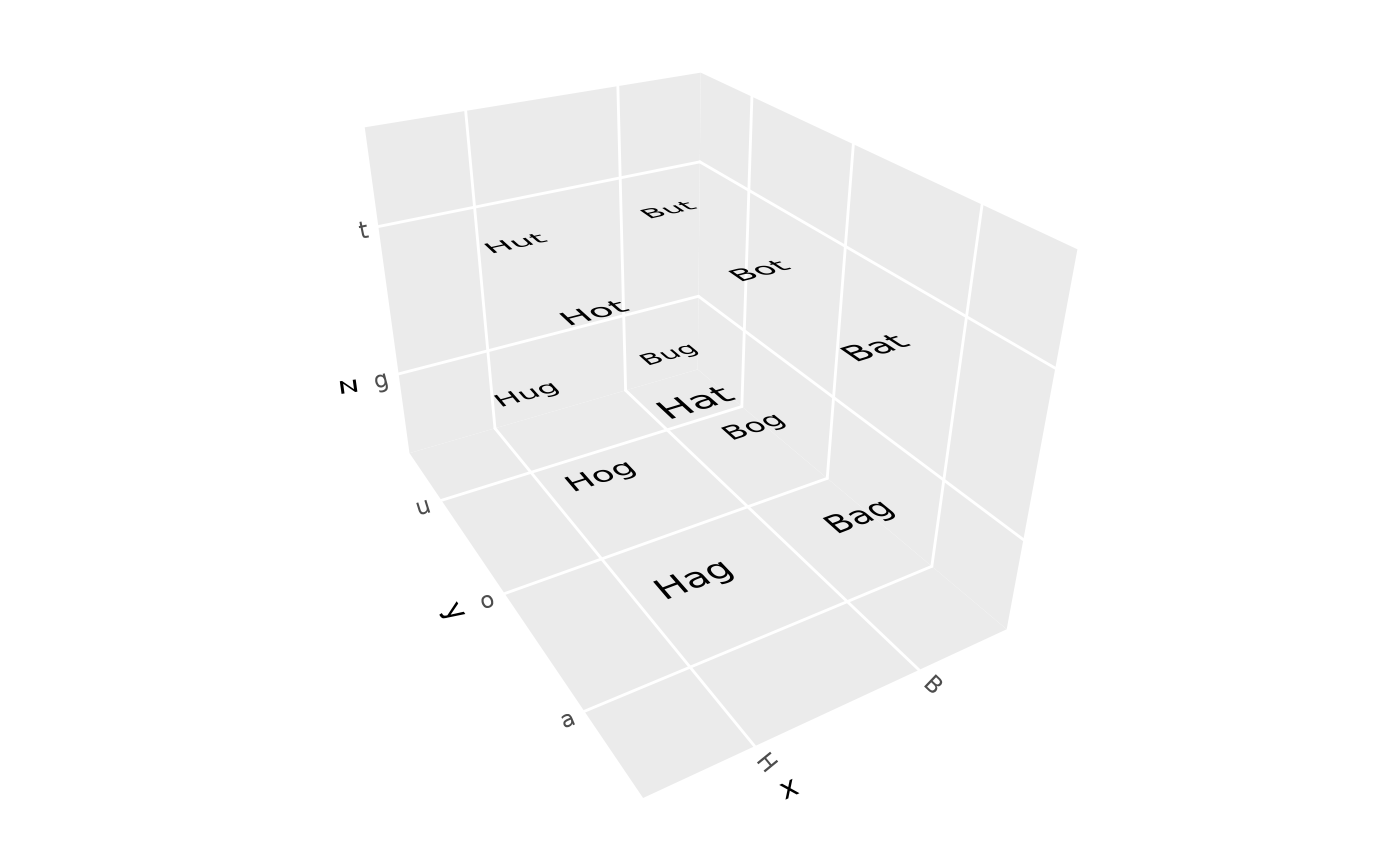

# Polygon text - can face any direction
ggplot(df, aes(x, y, z, label = label)) +
  geom_text_3d(method = "polygon", facing = "zmax") +
  coord_3d(scales = "fixed")


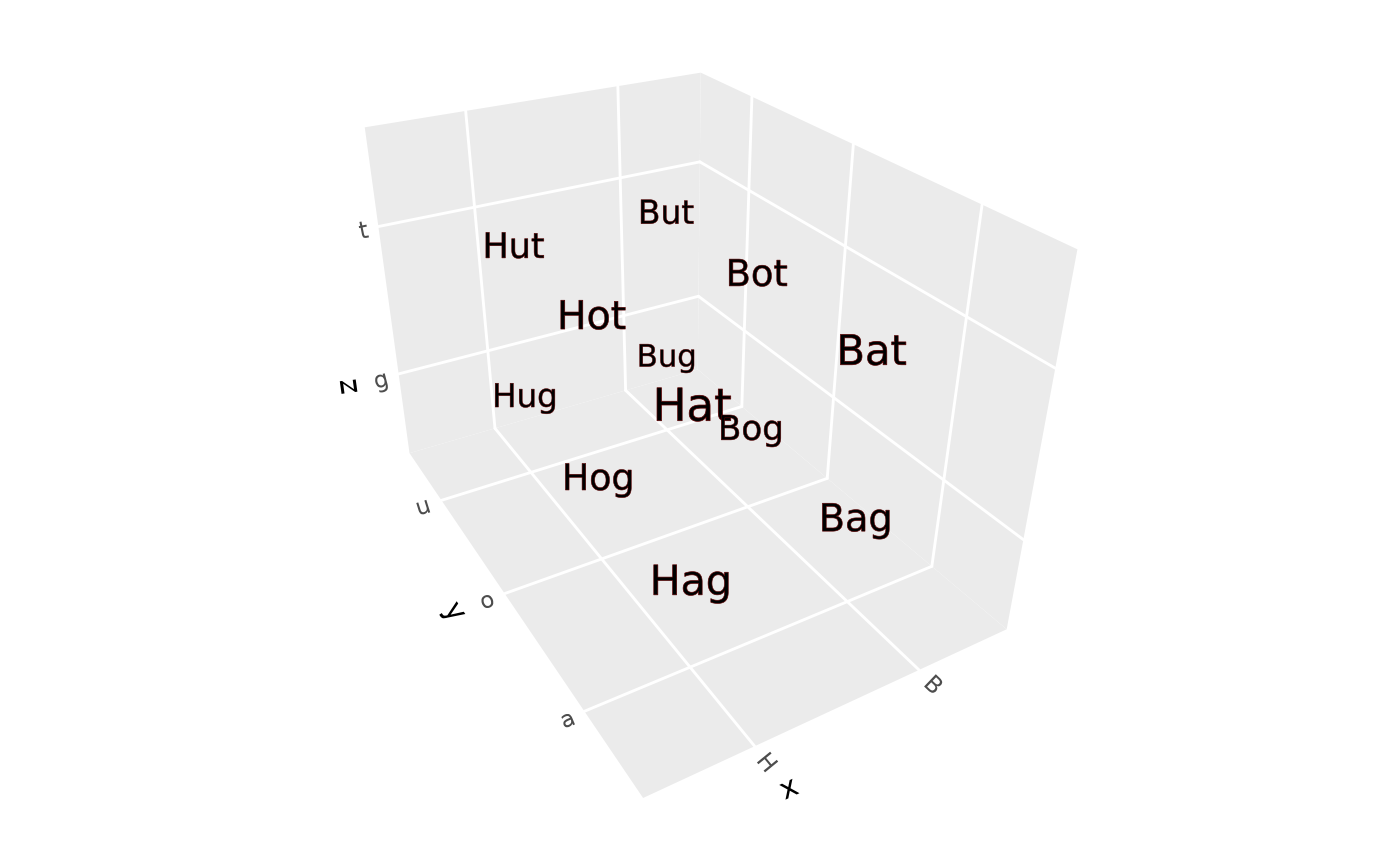

# Polygon text facing camera (using coord parameter)
my_coord <- coord_3d(pitch = 0, roll = -60, yaw = -30, scales = "fixed")
ggplot(df, aes(x, y, z, label = label)) +
  geom_text_3d(method = "polygon", facing = "camera", coord = my_coord,
               color = "red", linewidth = .1) +
  my_coord


# Larger text with styling
my_coord2 <- coord_3d(scales = "fixed")
ggplot(df, aes(x, y, z, label = label, fill = factor(x))) +
  geom_text_3d(method = "polygon", facing = "xmin", coord = my_coord2,
               family = "serif", weight = "bold", italic = TRUE) +
  my_coord2
