Scale branch lengths on a phylogenetic tree — tree

A family of functions to modify the branch lengths of a phylogeny in ways relevant to spatial phylogenetic analyses. These fall into two conceptual categories. Affine rescaling (rescale_tree) applies a single multiplicative factor to every branch, changing units without changing relative branch lengths. Differential transforms (slice_tree, delta_tree, uniform_tree) change the shape of the branch-length distribution by treating different branches differently based on their position or length.

Usage

rescale_tree(tree, method = c("raw", "sum1", "tip1"))

slice_tree(tree, min = -Inf, max = Inf, reference = NULL, from = "tips")

delta_tree(tree, delta)

uniform_tree(tree)

Arguments

tree: Phylogeny of class ape::phylo.
method: Character giving the rescaling method for rescale_tree: "raw", "sum1", or "tip1".
min, max: Numeric giving the lower and upper bounds of the depth window for slicing, in the same units as reference if provided, otherwise in the units of tree$edge.length. Defaults are -Inf and Inf (no slicing). See from for the meaning of "depth."
reference: Optional phylogeny of class ape::phylo whose branch lengths define the slicing window. Must share topology with tree. If NULL (default), the window is defined on tree's own branch lengths. When supplied, slicing identifies the fraction of each reference-branch's extent that falls within the window, and applies that fraction to tree's branch length. This allows slicing a phylogram by a chronogram, for example.
from: Character: "tips" (default) or "root". Determines whether min and max are measured from the tips (so min = 10, max = 30 selects branch portions 10 to 30 units before the deepest tip) or from the root (so min = 10, max = 30 selects branch portions 10 to 30 units after the root).
delta: Numeric exponent for delta_tree. Must be positive. For the limiting case delta = 0, use uniform_tree instead.

Value

A phylogeny of class ape::phylo with modified branch lengths. Topology is always preserved; tree$tip.label, tree$node.label, tree$edge, and tree$Nnode are unchanged.

Details

The two categories of operations serve different purposes and can be composed. A typical workflow is to apply a differential transform first (if any), and then optionally an affine rescaling (if any).

slice_tree retains only the portions of each branch that fall within a specified window along the tree, setting other portions to zero. This implements the "time-sliced" approach to phylodiversity analysis, enabling questions about divergence within a specific depth range. The window can be defined on the tree itself, or on a separate reference tree with identical topology (e.g., slicing a phylogram by a chronogram, to isolate molecular divergence within a specific age range). See Araujo et al. (2024) for discussion of related approaches. Note that slicing modifies branch lengths, which changes the depth coordinate system of the resulting tree (because zeroed-out branches near the root collapse, shifting the retained portion toward the root). If you need to apply multiple operations that depend on the original tree's depth structure, pass the original tree as reference on subsequent calls.

delta_tree applies Pagel's (1999) delta transformation, raising each node depth (root-to-node distance) to the power delta, then recomputing branch lengths from the transformed depths. The resulting tree is then rescaled to match the original tree's total height, so that only the distribution of branch length along the tree changes, not the total. Values of delta < 1 lengthen deep branches at the expense of shallow ones, emphasizing deeper divergence; values of delta > 1 do the opposite, emphasizing recent divergence. Delta is the continuous analog of slice_tree: both operate on position within the tree rather than on individual branch lengths. The transformation is most interpretable on ultrametric trees, where node depths have a single consistent meaning. See Saladin et al. (2019) for an application to spatial phylogenetics.

uniform_tree sets all branch lengths equal to 1, producing a cladogram. Phylogenetic diversity computed on a uniform tree is equivalent to clade richness (CR), giving equal weight to every splitting event.

rescale_tree applies an affine rescaling:

"raw"—no rescaling (identity operation).
"sum1"—divides all branch lengths so they sum to 1. Branch lengths then represent fractions of total tree length, and PD values represent the fraction of total evolutionary history present in a site.
"tip1"—divides all branch lengths by the longest root-to-tip path, so that the longest path equals 1. For ultrametric trees, every tip has path length 1 (following Pavoine et al. 2005). For non-ultrametric trees, only the longest path equals 1.

Rescaling does not change relative branch lengths, so it does not affect spatial patterns, correlations, or statistical significance of diversity metrics—only their numeric scale. Differential transforms, by contrast, change what the metrics are measuring.

References

Araujo, M. L., Silva, V., and Cassemiro, F. A. S. (2024). 'treesliceR': a package for slicing phylogenies and inferring phylogenetic patterns over evolutionary time. Ecography, e07364.

Pagel, M. (1999). Inferring the historical patterns of biological evolution. Nature, 401(6756), 877-884.

Pavoine, S., Ollier, S., and Dufour, A.-B. (2005). Is the originality of a species measurable? Ecology Letters, 8(6), 579-586.

Saladin, B., Thuiller, W., Graham, C. H., Lavergne, S., Maiorano, L., Salamin, N., and Zimmermann, N. E. (2019). Environment and evolutionary history shape phylogenetic turnover in European tetrapods. Nature Communications, 10(1), 249.

Examples

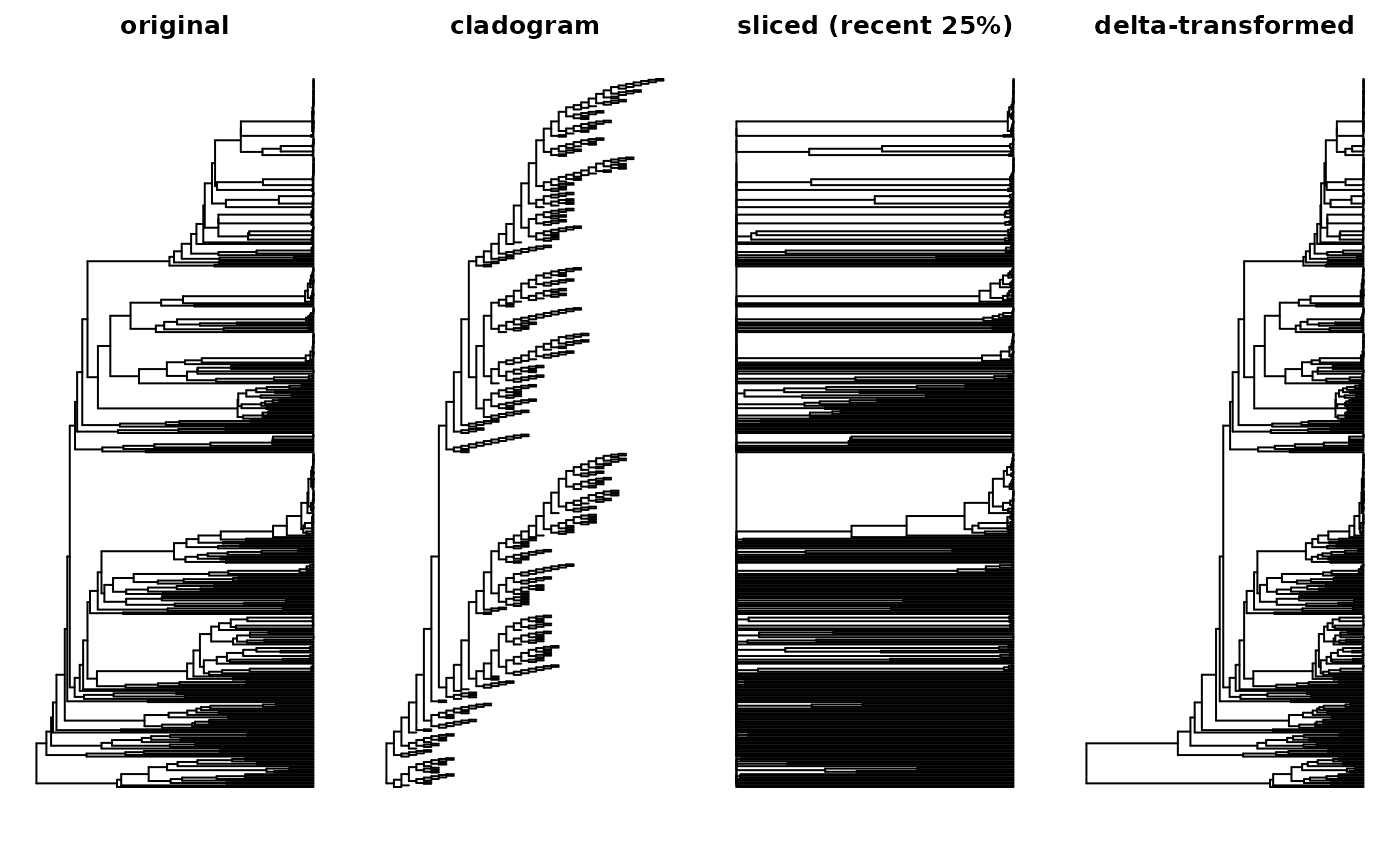

moss_tree <- ape::read.tree(system.file(
      "extdata", "moss_tree.nex", package = "phylospatial"))
par(mfrow = c(1, 4), mar = c(2, 1, 2, 1))

plot(moss_tree,
     show.tip.label = FALSE, main = "original")
plot(uniform_tree(moss_tree),
     show.tip.label = FALSE, main = "cladogram")
plot(slice_tree(rescale_tree(moss_tree, "tip1"),
                min = 0, max = 0.25, from = "tips"),
     show.tip.label = FALSE, main = "sliced (recent 25%)")
plot(delta_tree(moss_tree, delta = 1/3),
     show.tip.label = FALSE, main = "delta-transformed")
