Probability of exiting a random walk's domain — rw_exit

Computes, for each grid cell, the probability that particles released there leave the domain before being deposited: across its edges, into NA cells, or either. Because mass that leaves the domain is lost (see the Domain edges section of random_walk()), this measures how much each cell's results are affected by the choice of domain. See Details for how to use it.

Usage

rw_exit_prob(
  rose,
  half_life = Inf,
  exits = c("all", "edges", "na"),
  latitude_correction = TRUE,
  iter = NULL,
  timescale = 1
)

Arguments

rose: A wind_rose.
half_life: Half-life of airborne mass, in hours. Should match the value used for the random walk being assessed; see random_walk(). With the default Inf, every cell with a path to an exit has exit probability 1 (in the long run, all mass leaves), so the result is informative only with iter or for comparing exits = "edges" with "na".
exits: Which exits to count. "all" (the default) counts mass leaving across domain edges or into NA cells, matching the edge-loss fraction reported by random_walk(). "edges" counts only mass leaving across the outer edges of the grid, and "na" only mass entering NA cells, e.g. to separate truncation of the domain from loss to a deliberately masked area. Both kinds of exit remain absorbing in every case: "edges" and "na" give the probability that mass is lost by that route, and they sum to "all".
latitude_correction: Logical. Should match the value used for the random walk being assessed; see random_walk().
iter: Number of pulse-mode iterations (time steps) over which to count exits. The default NULL gives the probability of ever exiting, which applies to stream-mode results and does not depend on timescale. An integer gives the probability of exiting within iter steps, which applies to pulse-mode results at that iteration.
timescale: With iter only: time step scaling factor; see random_walk(). Should match the value used for the pulse-mode walk.

Value

A single-layer SpatRaster named exit_prob, giving for each cell the probability that a particle released there exits by the routes in exits (within iter steps, if given) before being deposited. NA where rose is NA. Cells from which no exit can be reached have probability 0.

Details

Interpreting exit probabilities as error bounds

Consider a random walk on a larger domain that contains this one, with any winds outside it. A particle released at cell x follows the same process in both domains until it first exits this one, so results for particles released at x can differ between the two only through particles that exit. This makes the exit probability h(x) a bound on the effect of the domain boundary, with no assumptions about winds outside the domain, for any quantity that is a probability over particles released at x:

For an upwind walk (direction = "upwind"), stream-mode deposition at x (the probability that a particle released at x is deposited at the receptor) is off by at most h(x). The same holds for pulse-mode airborne and deposition at iteration iter, using h computed with that iter.
For pairwise_random_walk(), values for source x are off by at most h(x).
For a downwind walk from a unit source at x, the deposition map is off by at most h(x) in total, summed over all cells (with density = FALSE). This bounds the map as a whole, not the error at any particular cell. For a downwind walk with several sources, the edge-loss fraction reported by random_walk() is h averaged over sources, weighted by release.

Masking cells where h exceeds a tolerance therefore leaves cells whose values are accurate to within that tolerance. The bound is conservative, since it counts every particle that exits as fully misplaced, whereas some would return. It does not cover the error at individual cells of downwind maps, which comes from particles that exit and later return, nor the absence of sources beyond the domain in results that assume release everywhere (such as upwind origin with the default source); bounding these requires assumptions about the winds and sources outside the domain.

Exit probabilities are typically highest near the domain's downwind margins, where released mass is carried out of the domain, and fall off quickly toward upwind margins. The width of the affected band grows with half_life.

Computation

Exit probabilities solve (I - (1 - lambda) P) h = (1 - lambda) l, where P is the transition matrix, lambda the per-step deposition fraction, and l the per-step probability of stepping out of the domain by the routes in exits. This is one sparse solve, the same size as a stream-mode walk. With iter, the recursion h <- (1 - lambda) * (l + P h) is applied iter times from h = 0.

Examples

# \donttest{
rose <- windscape_example("wind_rose")

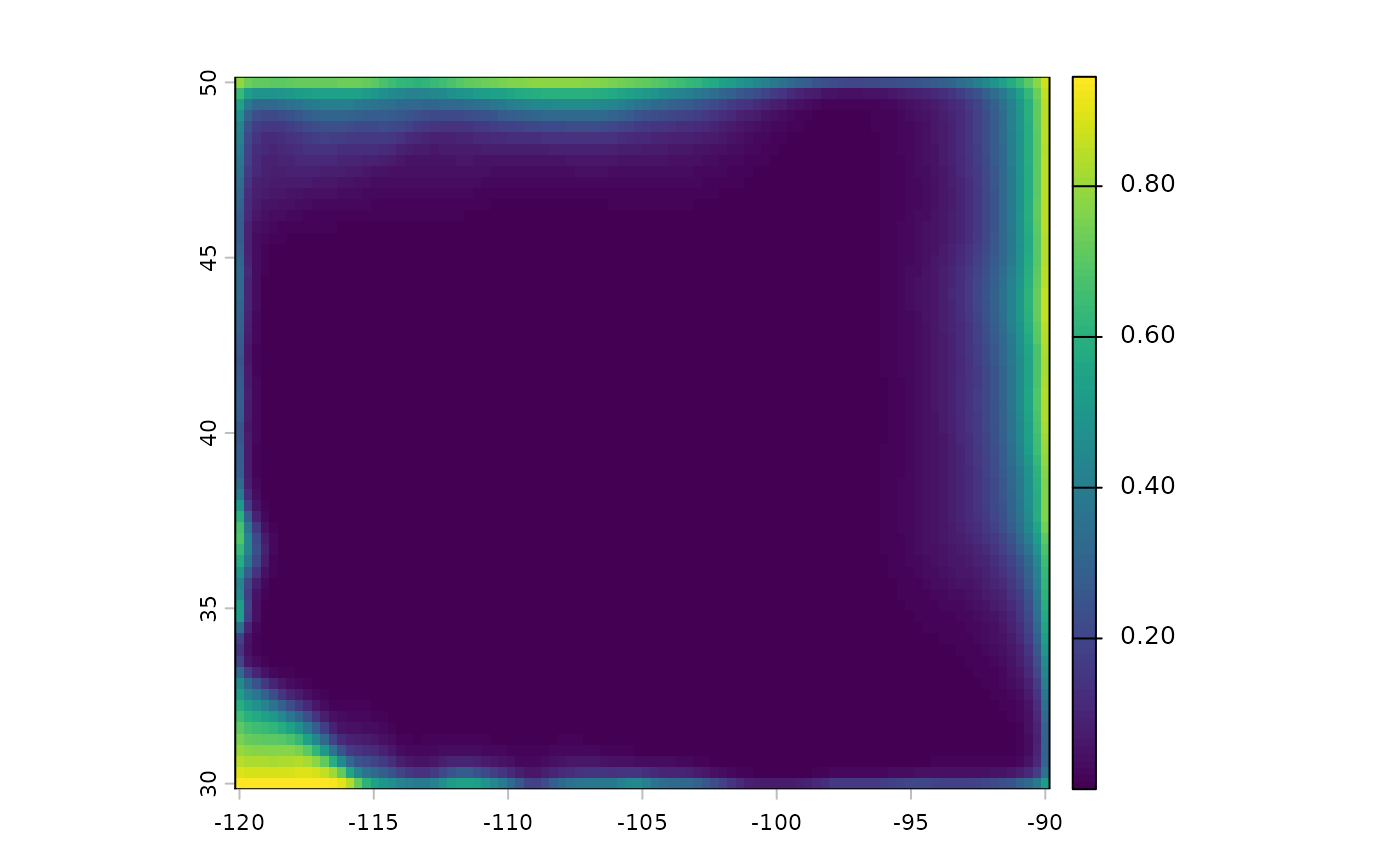

h <- rw_exit_prob(rose, half_life = 24)
plot(h)

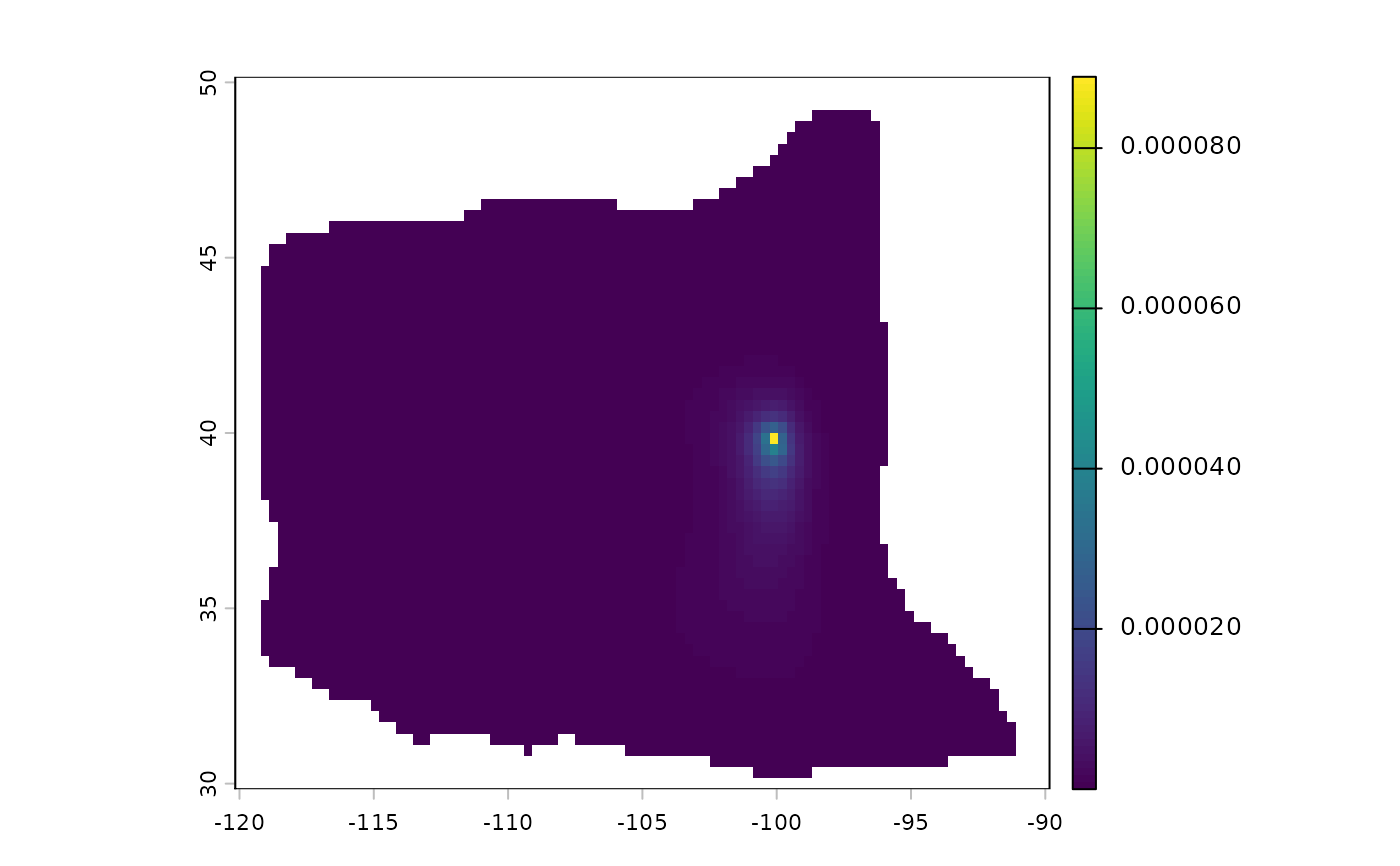

# mask an upwind walk to cells where the domain affects results by less than 1%
rw <- random_walk(rose, cbind(-100, 40), mode = "stream", direction = "upwind",
                  half_life = 24)
#> 	iteration timestep: ~0.935
#> 	decay per step (lambda): ~0.0263
#> (timestep and half_life are in hours IF trans == 1 and wind_field units are m/s)
plot(terra::mask(rw$deposition, h > 0.01, maskvalues = TRUE))

# }
