ggcube lets you build 3D figures using ggplot2. Use it to create 3D surfaces, volumes, scatter plots, and complex layered visualizations using familiar ggplot2 syntax with aes(x, y, z) and coord_3d().

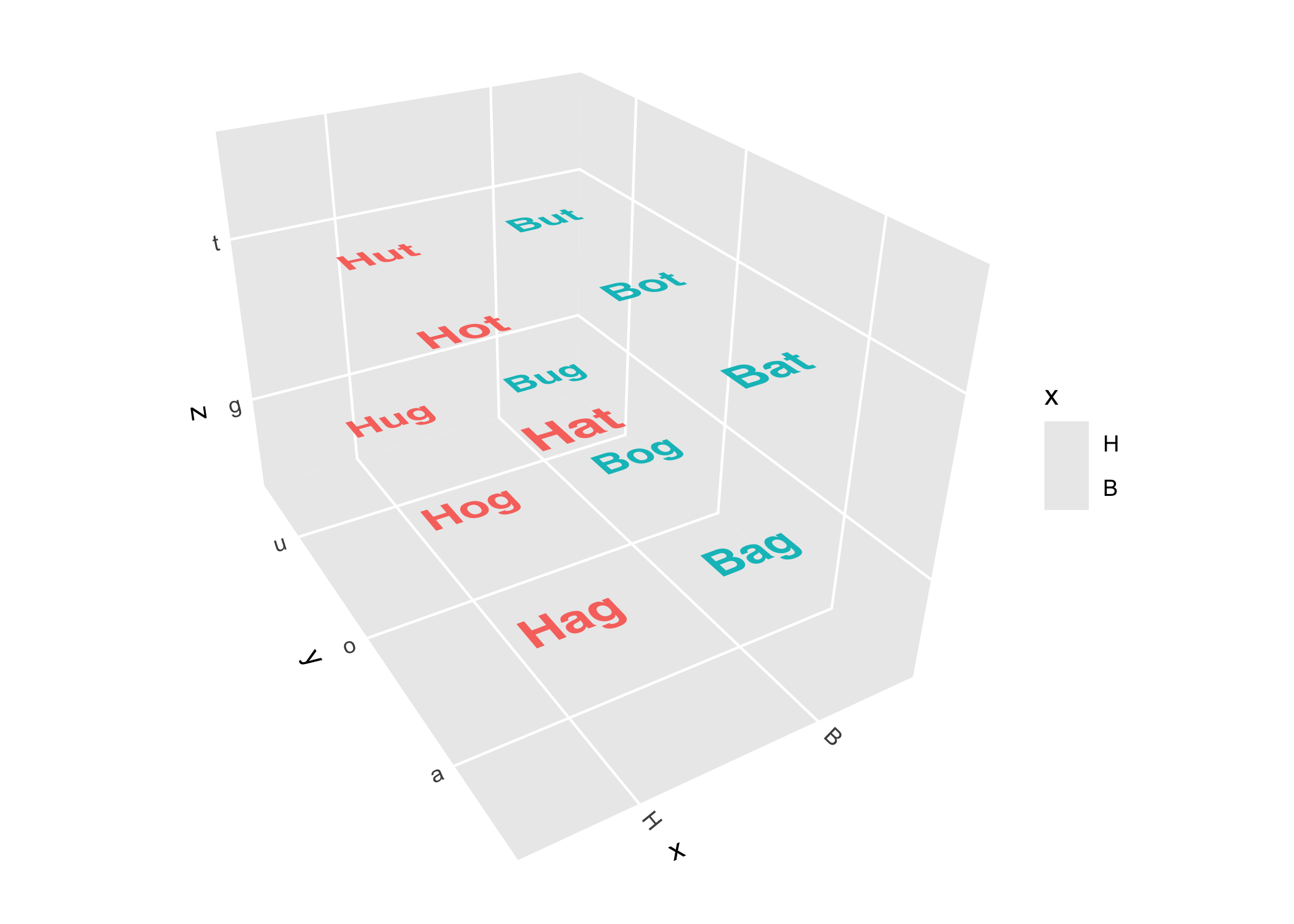

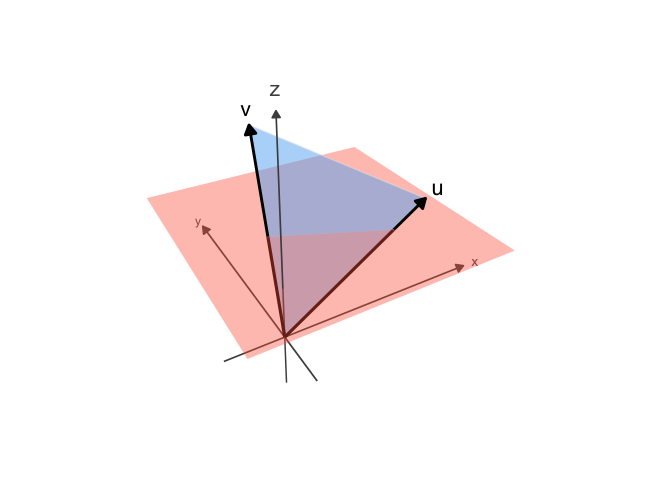

The package provides a variety of 3D-specific geoms to render surfaces, prisms, points, and paths in 3D; it also works with some standard ggplot2 layer functions. You can control plot geometry with 3D projection parameters, can apply a range of 3D lighting models, and can mix 3D layers with 2D layers rendered on cube faces. Standard ggplot2 features like faceting, themes, scales, and legends work as expected.
WARNING: This package is in development and has not yet been officially released. There are bugs, and future API changes are possible.
Installation
ggcube isn’t yet available on CRAN as it’s still in initial development. You can install the development version of ggcube from GitHub with:
devtools::install_github("matthewkling/ggcube")Quick start
The essential ingredient of a ggcube plot is coord_3d(). Adding this to a standard ggplot, and providing a z aesthetic variable, creates a 3D plot:
library(ggplot2)
library(ggcube)
# Basic 3D scatter plot
ggplot(mpg, aes(x = displ, y = hwy, z = drv, color = class)) +
geom_point() +
coord_3d()
You can control plot rotation, perspective, and dimensions, as well as axis label placement and panel selection, via parameters to coord_3d():
ggplot(mpg, aes(displ, hwy, drv, color = class)) +
geom_point() +

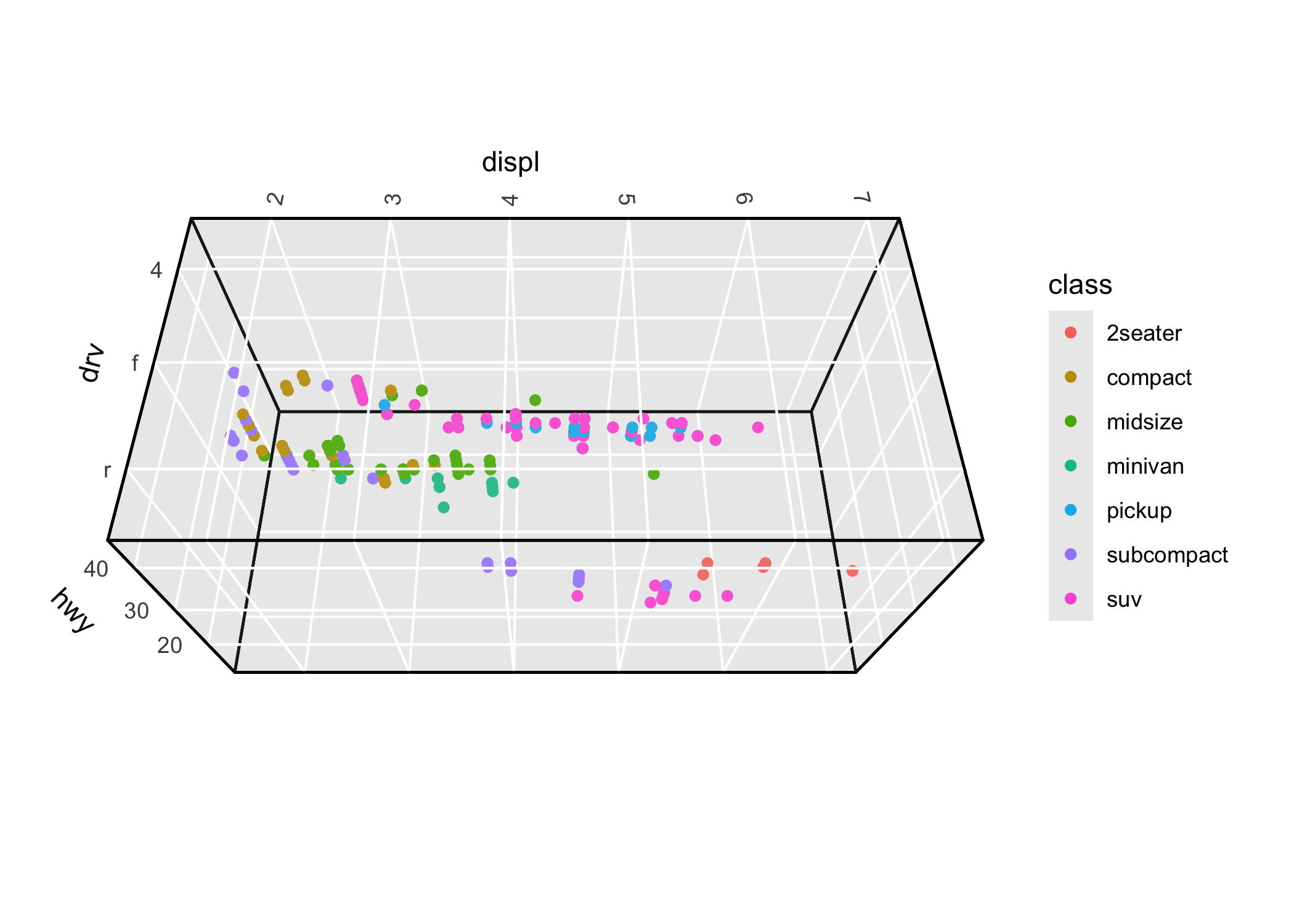

coord_3d(pitch = 0, roll = 60, yaw = 0, dist = 1.4,
ratio = c(2, 1, 1), panels = "all") +
theme(panel.border = element_rect(color = "black"),
panel.foreground = element_rect(alpha = .1))

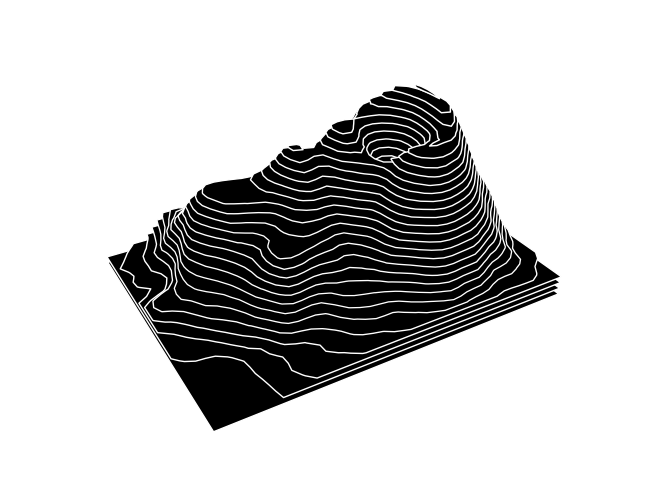

3D surfaces
-
geom_hull_3d()plots triangulated volumes based on convex or alpha hulls of 3D points -
geom_function()visualizes mathematical functions -
geom_surface_3d()renders surfaces based on existing grid data such as terrain data -
geom_smooth_3d()fits statistical models with two predictors and visualizes fitted surfaces with confidence intervals -
geom_density_3d()creates perspective visualizations of 2D kernel density estimates
Example: a terrain surface using geom_surface_3d():
ggplot(mountain, aes(x, y, z)) +
geom_surface_3d(aes(fill = z, color = z)) +
scale_fill_viridis_c() + scale_color_viridis_c() +
coord_3d(ratio = c(1.5, 2, 1), expand = FALSE, panels = "zmin",
light = light(direction = c(1, 0, 0))) +
guides(fill = guide_colorbar_3d()) +
theme_light()
Example: a mathematical surface using geom_function_3d():
ggplot() +
geom_function_3d(fun = function(x, y) cos(x) * sin(y),
xlim = c(-pi, pi), ylim = c(-2*pi, 2*pi),
fill = "#7a2100", color = "#b3725b",
grid = "tri") +
coord_3d(yaw = 160, roll = -70,
scales = "fixed", ratio = c(1, 1, 2)) +
labs(z = "cos(x) * sin(y)") +
theme_minimal()
Example: a fitted model surface using geom_smooth_3d():
# Generate scattered 3D data
set.seed(123)
d <- data.frame(x = rnorm(50),
y = rnorm(50))
d$z <- d$x + d$x^2 - d$y^2 + rnorm(50)
# Plot GAM fit with uncertainty layers
ggplot(d, aes(x, y, z)) +
geom_smooth_3d(aes(fill = after_stat(level)),
method = "gam", formula = z ~ te(x, y),
se = TRUE, level = 0.99,
color = "black", grid = "hex") +
scale_fill_manual(values = c("red", "darkorchid4", "steelblue")) +
coord_3d(light = NULL)

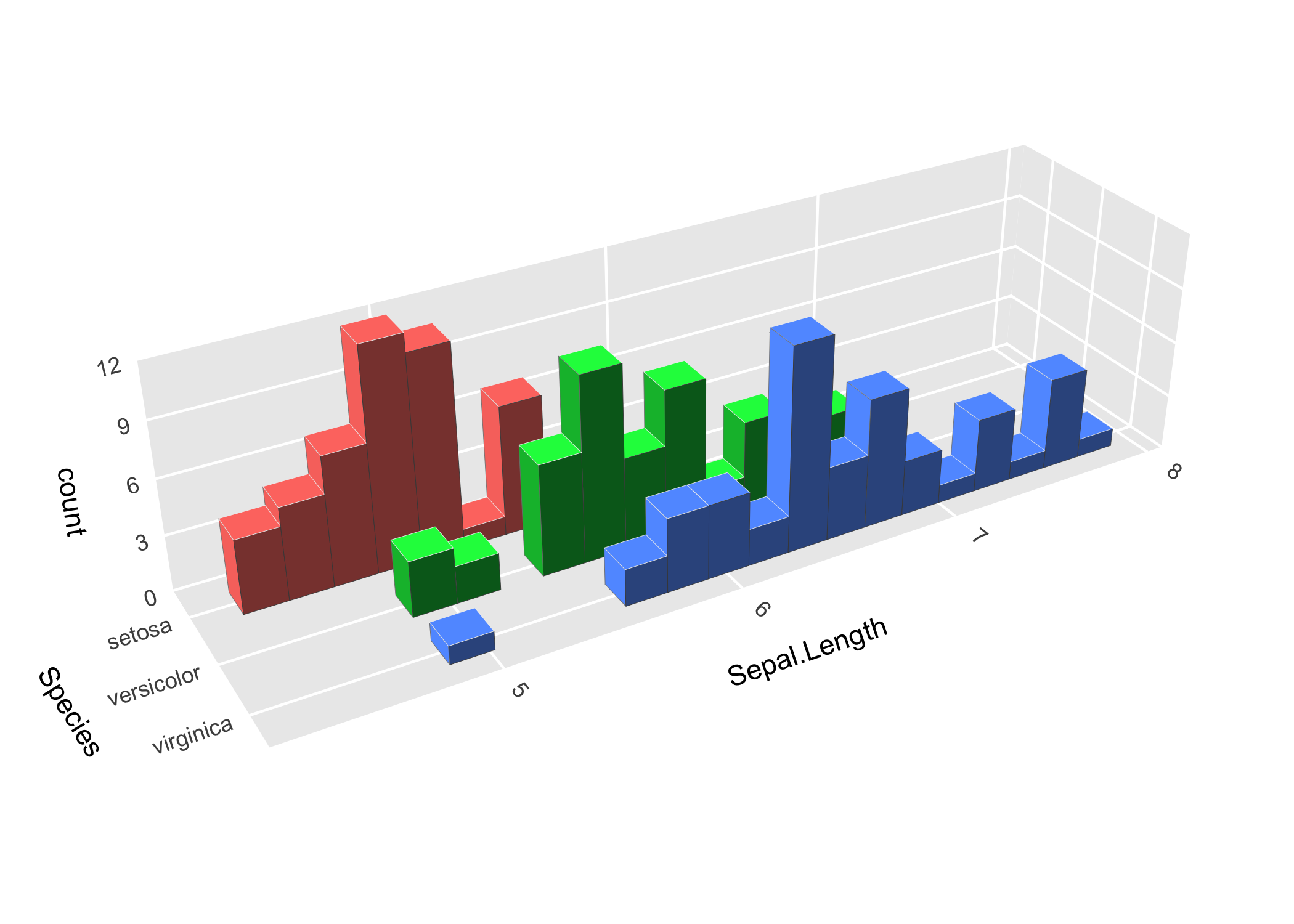

3D prisms
-
geom_pillar_3d()produces 3D column charts -

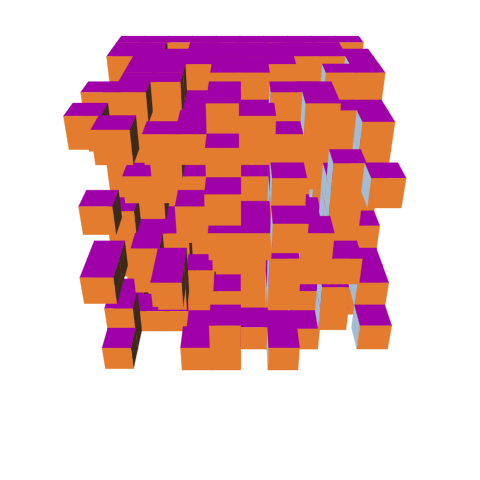

geom_voxel_3d()renders sparse 3D pixel data as arrays of cubes -
geom_histogram_3d()(coming soon) -
geom_prism_3d()(coming soon)
Example: a 3D bar chart using geom_pillar_3d():
# 3D pillar visualization
ggplot(mountain[mountain$z > 90, ],
aes(x, y, z, zmin = 90, fill = z)) +
geom_pillar_3d(color = "black", linewidth = 0.1, width = .9,
light = light(direction = c(1, -.25, 0), color = FALSE),
sort_method = "pairwise") +
coord_3d() +
scale_fill_viridis_c(option = "B") +
guides(fill = guide_colorbar_3d()) +
theme(panel.border = element_rect(color = "black", linewidth = .25))
3D paths
geom_path_3d() renders paths in 3D space with depth-based sorting and scaling:
butterfly <- lorenz_attractor(n_points = 8000, dt = .01)
ggplot(butterfly, aes(x, y, z, color = time)) +
geom_path_3d(linewidth = 0.1, color = "black",
position = position_on_face(c("xmax", "ymax", "zmin"))) +
geom_path_3d(linewidth = 0.3) +
scale_color_gradientn(colors = c("blue", "purple", "red", "orange")) +
coord_3d() +
theme_light()
3D points
While ggplot2::geom_point() works with ggcube as demonstrated above, geom_point_3d() creates 3D-aware scatter plots with proper point ordering, depth-scaled point sizes, and options to include reference lines and reference points projecting 3D points onto 2D face panels:
ggplot(mpg, aes(x = displ, y = hwy, z = drv, fill = class)) +
geom_point_3d(size = 3, shape = 21, color = "black", stroke = .1,
ref_lines = TRUE, ref_points = TRUE,
ref_faces = c("ymax", "xmax")) +
coord_3d()
Lighting effects
Lighting of 3D polygon layers is controlled by providing a light() specification to the layer function or to coord_3d().
ggplot(sphere_points, aes(x, y, z)) +
coord_3d(scales = "fixed") +
scale_fill_viridis_c() +
scale_color_viridis_c() +
theme_dark() +
theme(legend.position = "none") +
# apply shading to solid color/fill
geom_hull_3d(fill = "#8a2900", color = "#8a2900",
light = light(method = "direct", mode = "hsl",
direction = c(0, 0, 1))) +
# apply shading to aesthetic color/fill
geom_hull_3d(aes(x = x + 2.5, fill = x, color = x),
light = light(method = "diffuse", mode = "hsv",
direction = c(0, 0, 1), contrast = 2)) +
# map surface orientation to 3D RGB color channels
geom_hull_3d(aes(x = x + 5),
light = light(method = "rgb", direction = c(1, 0, -1)))
Face projection
3D and 2D layers can be mixed by using position_on_face() to project data onto 2D cube faces. We saw this in the geom_path_3d() example above, but here’s another example that mixes different geoms, including natively-2D layers like ggplot2::stat_density_2d():
ggplot(iris, aes(Sepal.Length, Sepal.Width, Petal.Length,
color = Species, fill = Species)) +
coord_3d() + xlim(4, 8) +
# place 2D density plot on zmin face
stat_density_2d(position = position_on_face(faces = "zmin", axes = c("x", "y")),
geom = "polygon", alpha = .1, linewidth = .25) +
# flatten 3D hull layer onto ymax face
geom_hull_3d(position = position_on_face("ymax"), alpha = .5) +
# flatten 3D voxels onto xmax face to create 2D bins
geom_voxel_3d(aes(round(Sepal.Length), round(Sepal.Width), round(Petal.Length)),
position = position_on_face("xmax"), alpha = .15, light = NULL) +
# 3D scatter plot (added last so it renders in front)
geom_point_3d( shape = 21, color = "black", stroke = .25)
